Digital Dial Gauge For Precision Calibration Scenarios

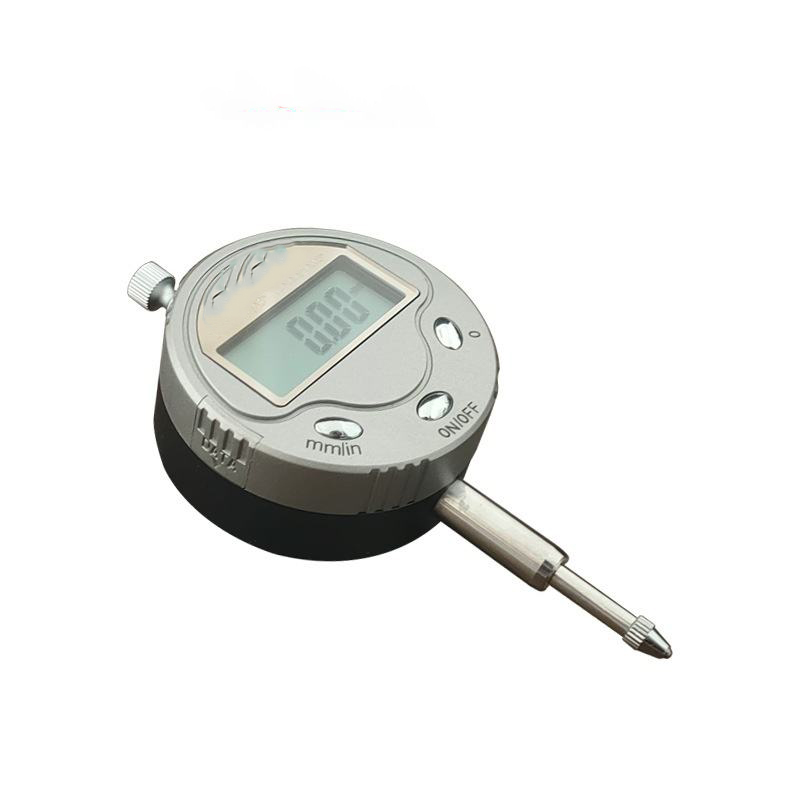

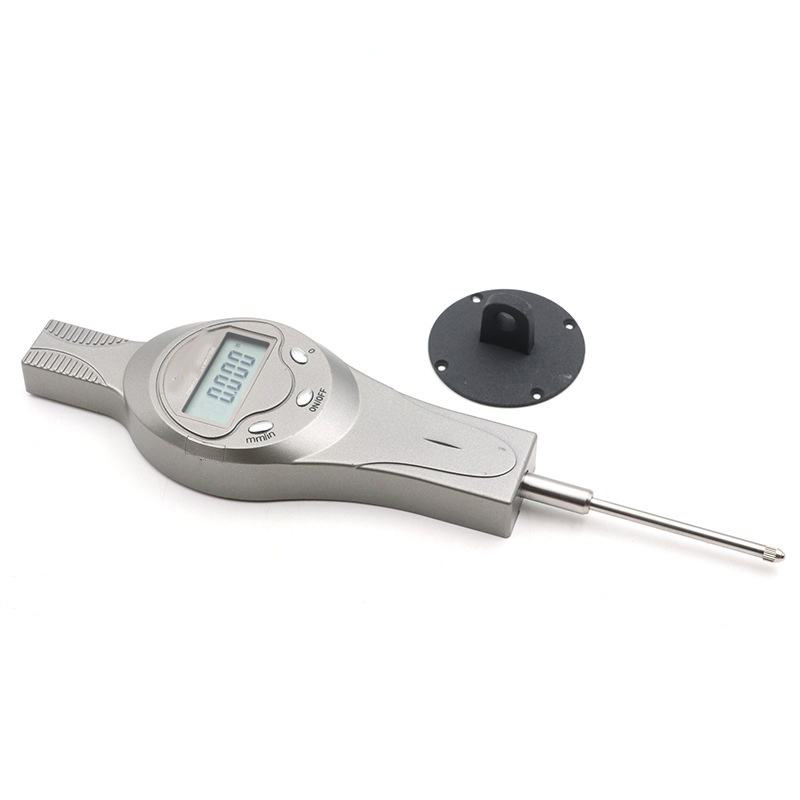

The Digital Dial Indicator is a high-precision measuring instrument designed for accurate dimensional and geometric detection across industrial scenarios. It offers flexible measuring ranges of 0-12.7mm, 0-30mm, and 0-50mm, paired with a 0.01mm accuracy and 0.01mm resolution, ensuring ultra-precise readings for even small dimensional changes. Crafted from durable stainless steel, the indicator boasts long-lasting performance, while its metric-imperial conversion (mm/in) function adds versatility to meet diverse measurement needs in global workplaces.
Compare
Parameter Table：Digital Dial Gauge
|
Parameter
|
Details
|
|
Product Name
|
Digital Dial Indicator
|
|
Model Number/Specifications
|
0-12.7/0-30/0-50 (mm)
|
|
Measuring Range
|
0-12.7mm, 0-30mm, 0-50mm
|
|
Accuracy
|
0.01 mm
|
|
Resolution
|
0.01 mm
|
|
Material
|
Stainless steel
|
|
Customized Support
|
ODM
|
|
Technology Feature
|
Metric-imperial conversion (mm/in)
|
|
Measurement Type
|
Flatness and coaxiality
|
|
Indicator Head Type
|
Small Calibration Indicator Head
|
|
Packaging
|
Plastic box packaging
|
- Machining Workshop Precision Dimension Detection
- Flatness & Coaxiality Calibration in Manufacturing
- Quality Inspection of Small Components
- Maintenance & Alignment of Precision Equipment
