Machine Light Specification
Color (Wavelength) | Red | 620nm-630nm | Working Environment | Temperature | -10-60℃ |
Withe | 6500K | Humidity | 20-85% | ||
Blue | 465nm-470nm | Optional Accessory | Controller | Analog/Strobe | |
Green | 525nm-530nm | Digital | |||
IR | 850nm/940nm | Applications | LCD panel defect detection,surface scratch detection | ||
UV | 365nm/395nm | ||||
Warranty | One year warranty, Free samples, and technical support |

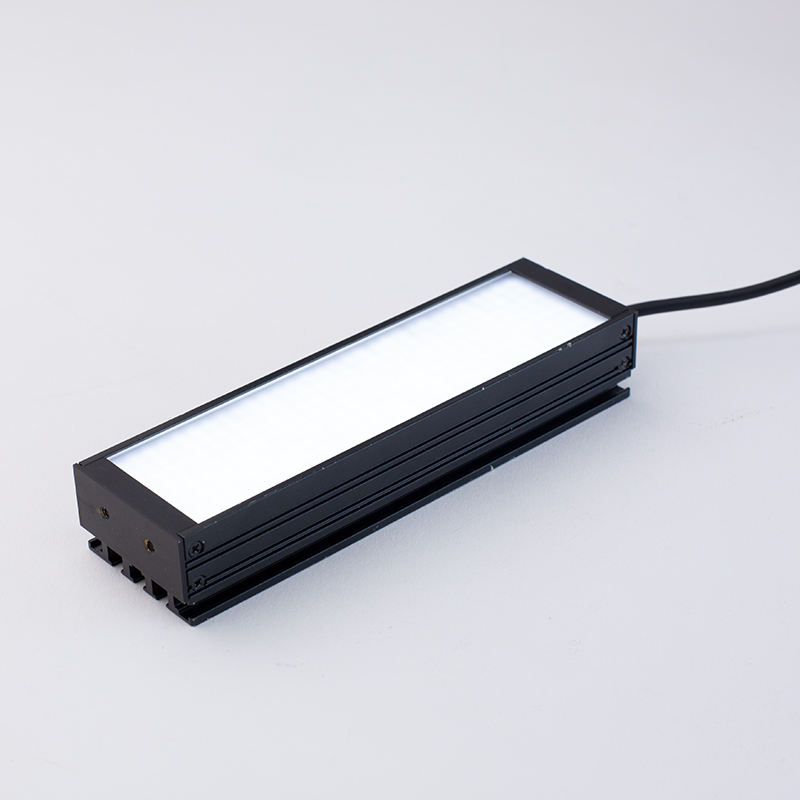

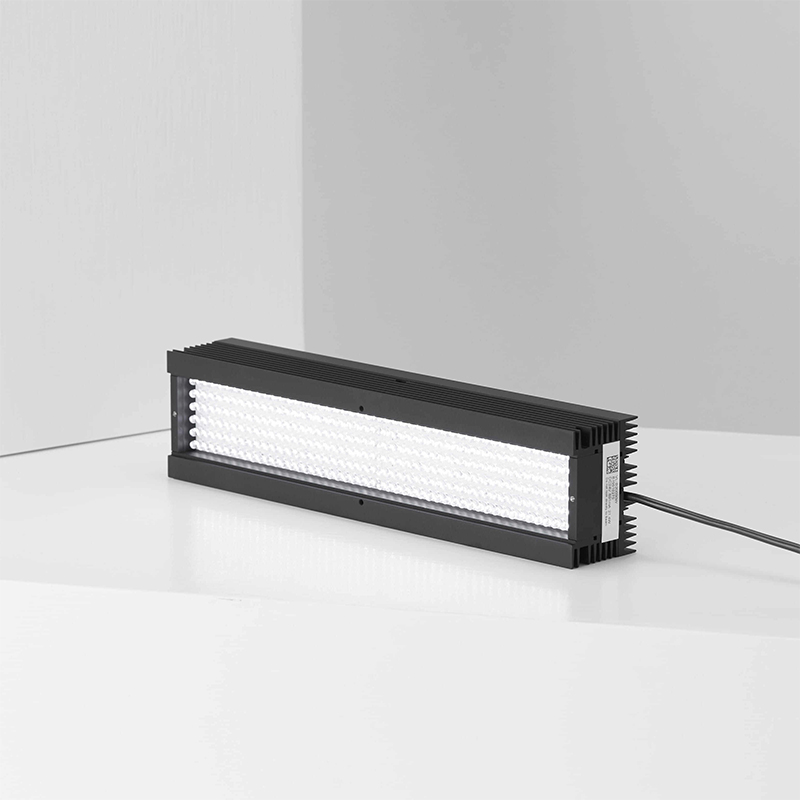

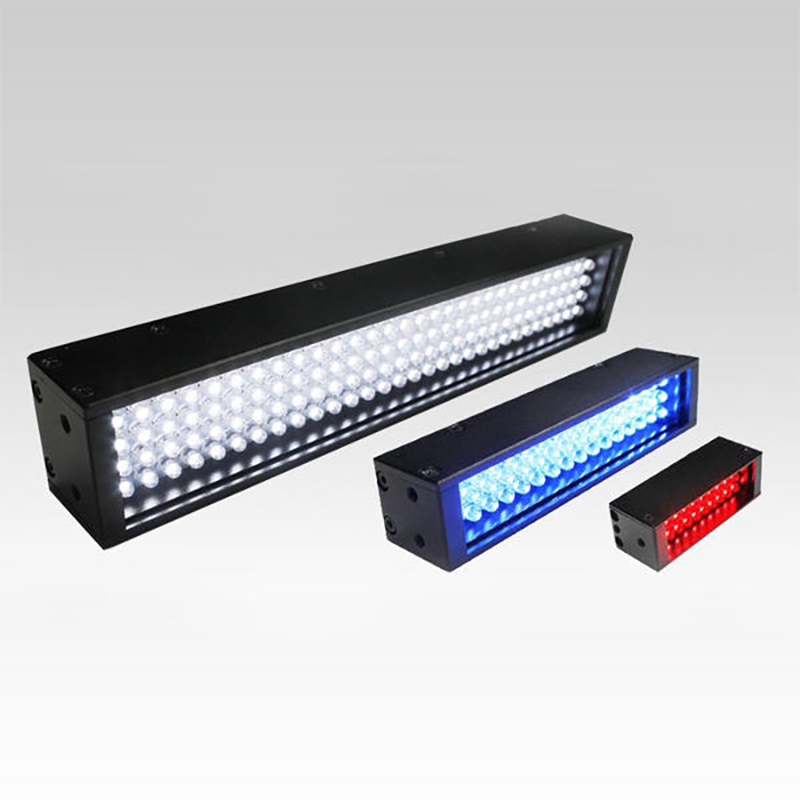

Bar light illumination structure
Bar-shaped lighting using high intensity LEDs mounted on a flat board. High-intensity arrays using high-intensity LEDs to create optimum oblique lighting conditions. Reflections can be controlled by the included diffusion plate. Usable as high-intensity surface lighting.
LEDs are arranged at a high density on a single flat circuit board and the object can be illuminated from any angle desired.
