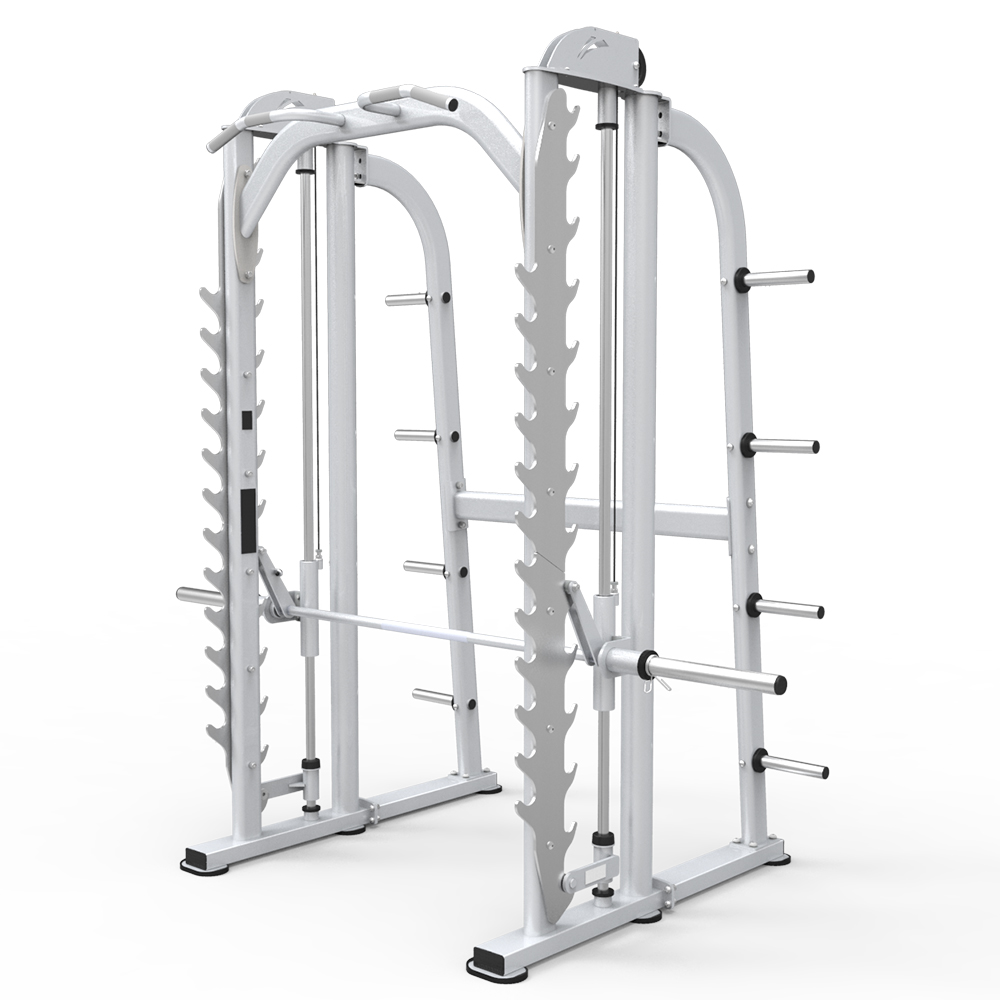

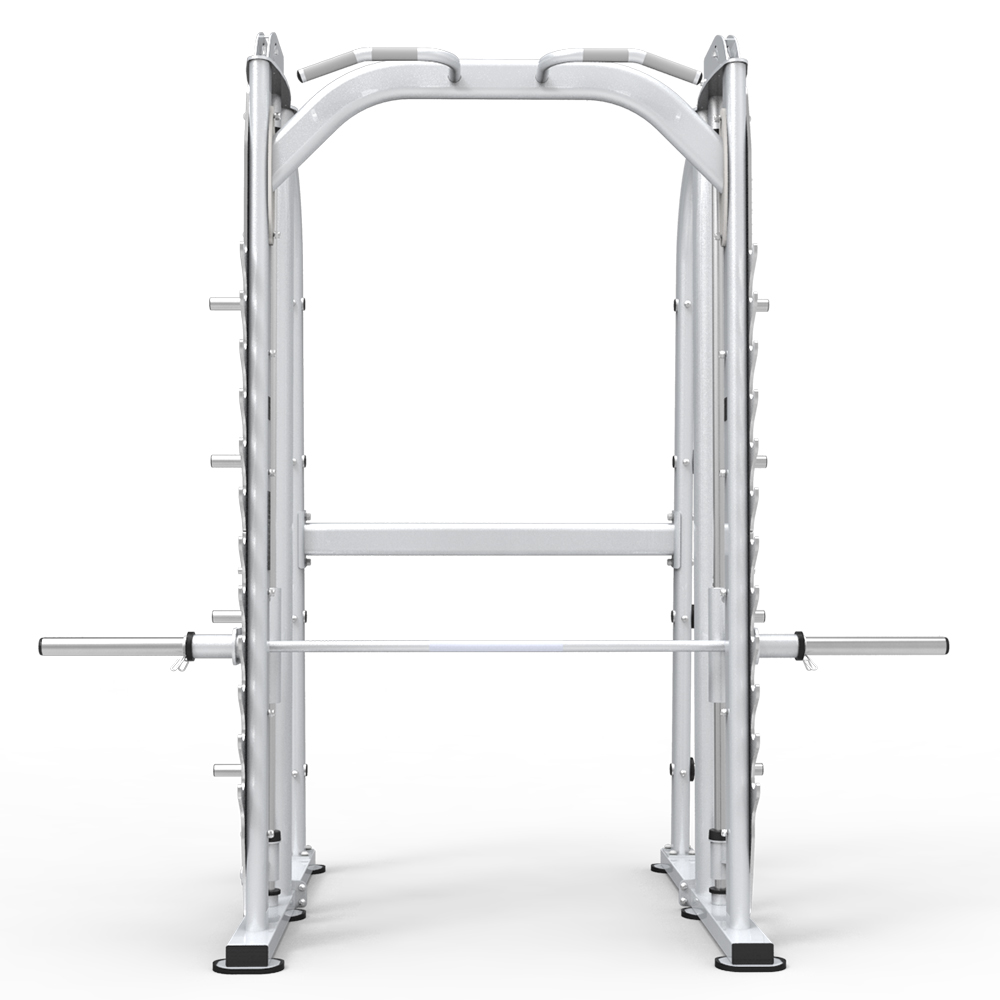

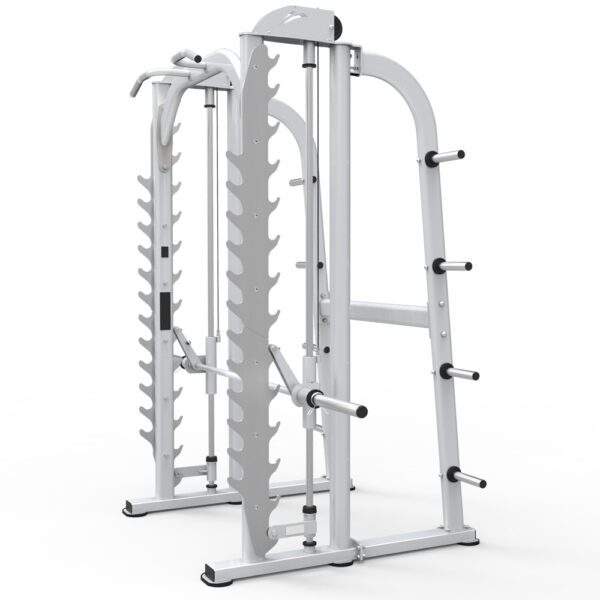

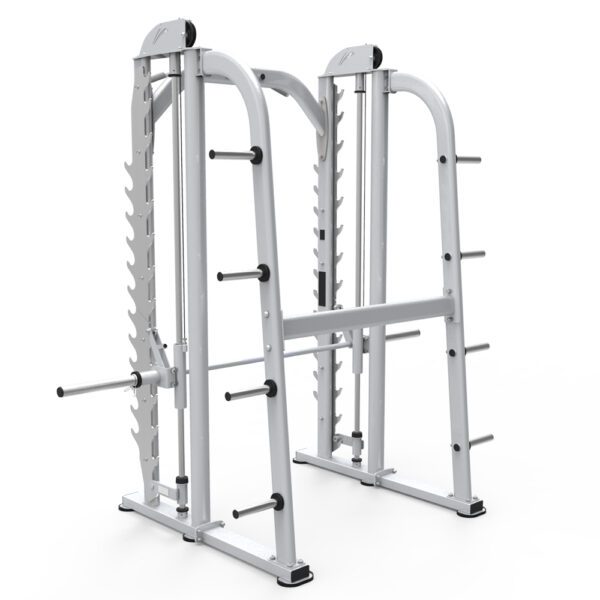

Commercial Smith Machine

1. Commercial Smith Machine Dimensions (L x W x H): 87.7 in x 59 in x 84.6 in (2230*1500*2150mm)

2. Commercial Smith Machine Max Loaded: 12*55lb

3. Commercial Smith Machine Net Weight: 564lb

4. Commercial Smith Machine Max Load Weight: 600lb



1. The main frame uses 50*100*3.0mm high strength and high frequency welded flat elliptical tubes

2. Load barbell tube and barbell sheet storage rack are made of 304 stainless steel tube, beautiful and durable

3. The surface of the equipment adopts thermosetting powder electrostatic spraying process, with bright color and high gloss

4. Hanging plate surface chrome plating treatment, beautiful, impact resistance

5. The barbell frame adopts high strength solid shaft with sealed bearing

6. Slide up and down, using Φ 30 solid guide rod, the surface hard chromium plating technology, the fit can make linear bearing, to improve smooth degree, reduce noise

7. High non – slip foot cover to ensure the stability of equipment and effectively prevent wear floor

8. The upper connection frame is designed with multi-position handles, which can provide a variety of functions for training

Equipment Features

Standard Features
  • Adjustable safety stops easily accessed from the user position
    Six weight plate storage horns
  •  Foot pads and heavy duty levelor device accommodates
  • uneven floor surfaces
  • Linear bearing for a smooth feel
  • Olympic Bar storage to secure the bar when using the Smith Machine
Instructional Placard Easy to understand exercise placards feature large set-up and start and finish position diagrams that are visibly easy to identify. QR codes provide quick and easy video instruction from your smart phone.
Adjustments 14 Bar hooks   / 155 mm increments
Bolt Down Capability Yes

Product Information

Technical Details
Grip Diameter 1.3 in / 33 mm
Frame The frame is 11 gauge 4×2-inch flat oval steel tubing. The weight bar is stainless steel tube, 1.5″ diameter.
Additional Upholstery Options (Additional lead time applies) American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate

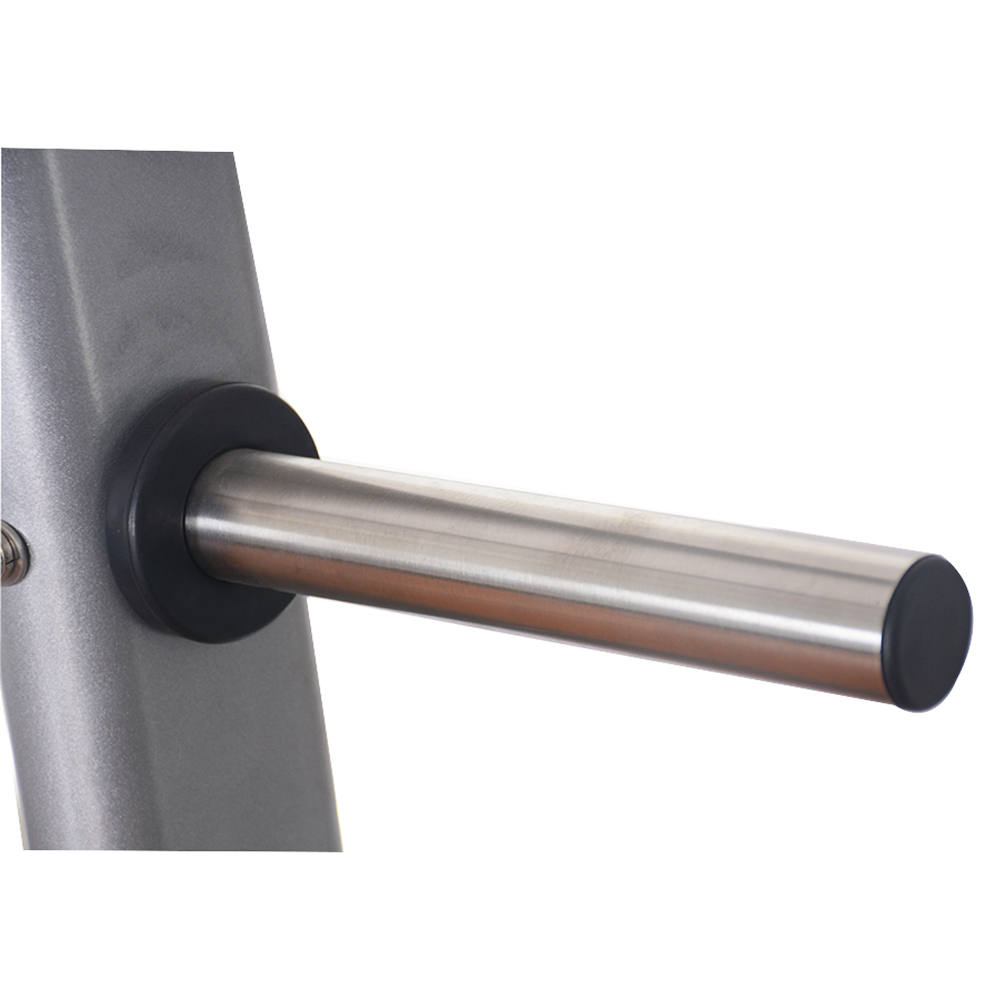

Weight Storage Horns Six Storage horns at 10 in / 25 cm length each (three per side)
Max Load Weight 600 lb / 272 kg
