CNC Dimensional Measuring Tool for 3D Parts Fully Automatic

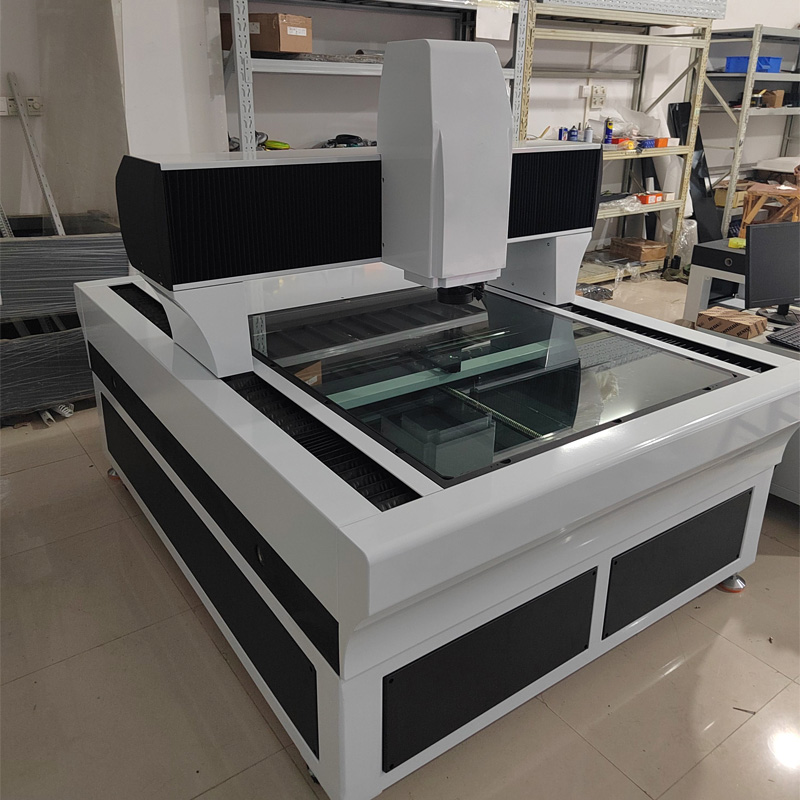

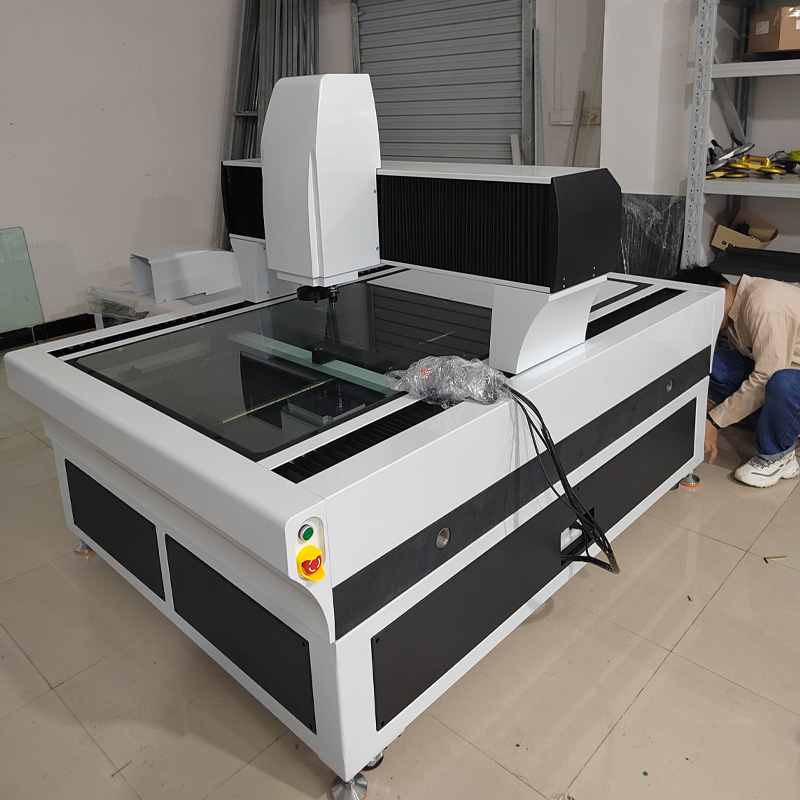

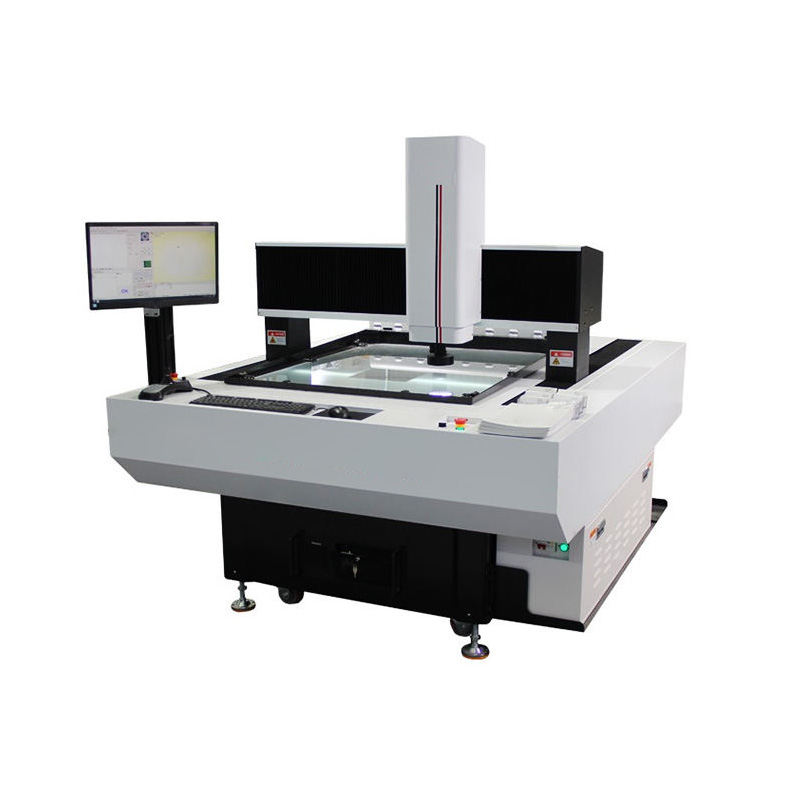

This high-precision CNC coordinate system is a professional dimensional measuring tool designed for the comprehensive 3D inspection of complex mechanical parts and industrial molds. It functions as a fully automated metrology station that captures precise spatial coordinates to verify geometric tolerances and surface profiles against digital CAD models.
$21.00
CompareProduct Introduction for CNC Dimensional Measuring Tool
This high-precision CNC coordinate system is a professional dimensional measuring tool designed for the comprehensive 3D inspection of complex mechanical parts and industrial molds. It functions as a fully automated metrology station that captures precise spatial coordinates to verify geometric tolerances and surface profiles against digital CAD models.
Parameter Table
| Product Name | Fully Automatic 3D Measuring Machine |
| Stroke (mm) | 200*100*200 |
| Machine Dimensions (mm) | 750*1300*1500 |
| Metal Table Dimensions (mm) | 345*250 |
| Glass Dimensions (mm) | 223*143 |
| Glass Table Loading Weight (kg) | 20 |
Application Scenario
- Aerospace Component Verification
- Automotive Engine Part Inspection
- Precision Mold and Die Measuring
- Medical Device Quality Control
Contact us to get your quotation now.
