CIP Cleaning System Manufacturer for Milk Production Line

Product introduction of CIP Cleaning System

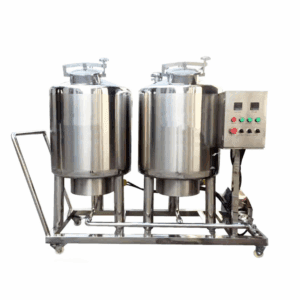

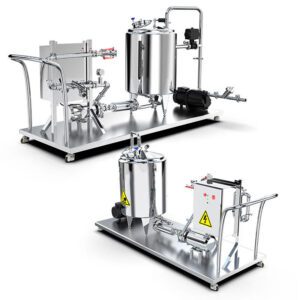

The skid-mounted CIP cleaning system is a fully integrated industrial sanitation unit used for cleaning pipelines, tanks, and production equipment.

It consists of alkali tank, acid tank, hot water tank, clean water tank, and recycling tank. The system supports single, double, triple, or four-circuit cleaning modes depending on production requirements.

With automatic temperature regulation, liquid level compensation, and concentration control, it ensures stable and efficient cleaning performance for continuous production lines.

Working principle

Step 1. System Preparation
Cleaning tanks (acid, alkali, hot water) are filled and system parameters are set.

Step 2. Temperature Control Activation
Steam valve regulates heating based on preset temperature controller settings.

Step 3. Cleaning Cycle Execution
Cleaning liquids circulate through pipelines and equipment in selected circuit mode.

Step 4. Automatic Monitoring
Flow rate, liquid level, and concentration are automatically adjusted in real time.

Step 5. Liquid Recovery & Switching
Used cleaning liquid is recycled or replaced depending on system configuration.

Product Parameter Table

Tank size	1000 L
CIP tank type	Alcali tankacid tankhot waterclean water tankwater recycle tank
Cleaning recycles	Single circuitdouble circuitsthree circuitsfour circuits
Heating method	Coil pipes insideplate tubular
Automatic types and charastics	1. flow rate auto control; 2. temperature auto control; 3. auto compensate the cip liquid level; 4. auto compensate the liquid concentrate; 5. cleaning liquids auto transfer; 6. auto alarm

Automatic CIP System vs Manual Cleaning

• Automatic temperature control vs unstable manual heating
• Closed-loop cleaning vs labor-intensive disassembly cleaning
• Stable sanitation results vs inconsistent human operation

Skid Mounted CIP vs Fixed Installation System

• Easy export and mobility vs complex on-site installation
• Compact integrated design vs space-consuming layout
• Faster deployment vs long installation time

Result: higher efficiency, lower labor cost, and stable hygiene compliance

Main Features

• Skid-mounted structure for easy transportation and export installation
• Multi-tank system including acid, alkali, hot water, and recycling tanks
• Automatic temperature control via steam regulation system
• Flow rate, level, and concentration automatic compensation system
• Supports single to four circuit cleaning configurations
• Integrated auto-alarm system for liquid level monitoring
• Cleaning liquid circulation reduces water and chemical waste
• Manual pipeline switching for flexible process control
• Coil or plate-type heating system for stable thermal performance
• Fully automatic operation reduces labor dependency and errors

Application Scenarios

• For dairy factories facing hygiene contamination risks, it ensures automated cleaning of milk pipelines and storage tanks
• For beverage production lines with frequent product changeover, it reduces downtime and improves cleaning efficiency
• For food processing plants requiring strict sanitation control, it ensures consistent CIP sterilization results
• For chemical plants dealing with residue buildup, it removes internal contamination and improves equipment lifespan
• For pharmaceutical facilities requiring high purity standards, it guarantees sterile cleaning conditions
• For industrial plants with complex piping systems, it simplifies cleaning operations and reduces manual labor

Buying Guide

• How to choose CIP cleaning system for dairy production line
• What is skid mounted CIP system used for industrial cleaning
• How automatic CIP system controls temperature and flow rate
• Which CIP system is suitable for beverage factory sanitation
• How to maintain CIP cleaning system in food processing plant
• What is difference between single circuit and multi circuit CIP system

FAQ

Q: What is CIP cleaning system used for in industry?

A: It is used for automatic cleaning of tanks, pipelines, and processing equipment.

Q: How does CIP system control cleaning temperature?

A: It uses steam valves and temperature controllers for automatic regulation.

Q: What is skid mounted CIP cleaning system?

A: It is a compact integrated cleaning unit designed for easy transport and installation.

Q: Can CIP system support multiple cleaning circuits?

A: Yes, it supports single, double, triple, or four circuit configurations.

Q: What industries use CIP cleaning system?

A: Dairy, food, beverage, pharmaceutical, and chemical industries.

Q: How does CIP system reduce manual labor?

A: It automates cleaning flow, temperature, and chemical concentration control.

Q: Does CIP system recycle cleaning liquids?

A: Yes, it includes recycling tanks to reuse cleaning solutions efficiently.

Q: Is CIP system suitable for export projects?

A: Yes, skid-mounted design makes it easy for shipping and installation.
