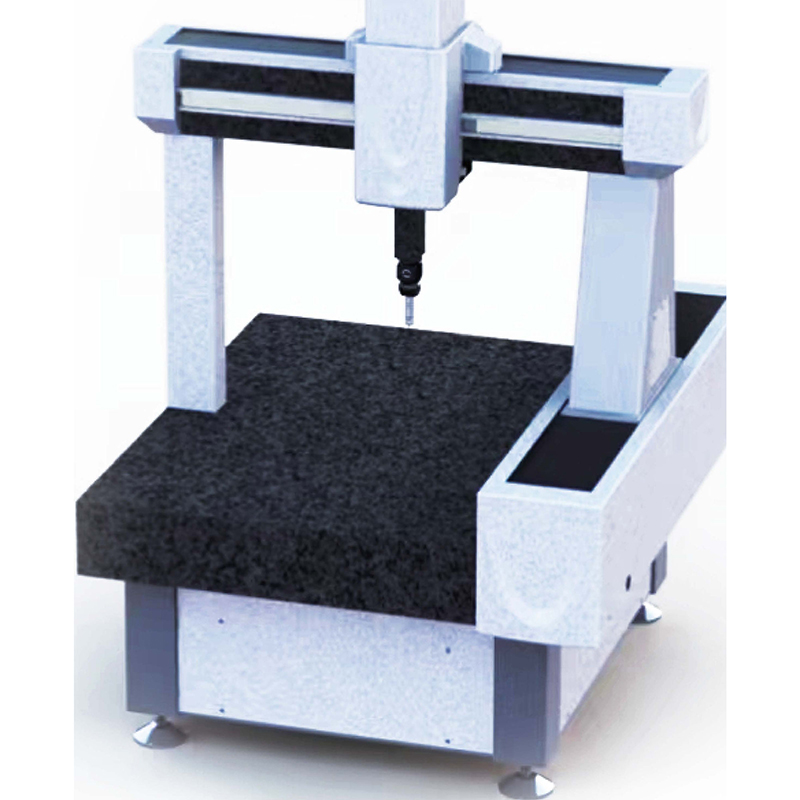

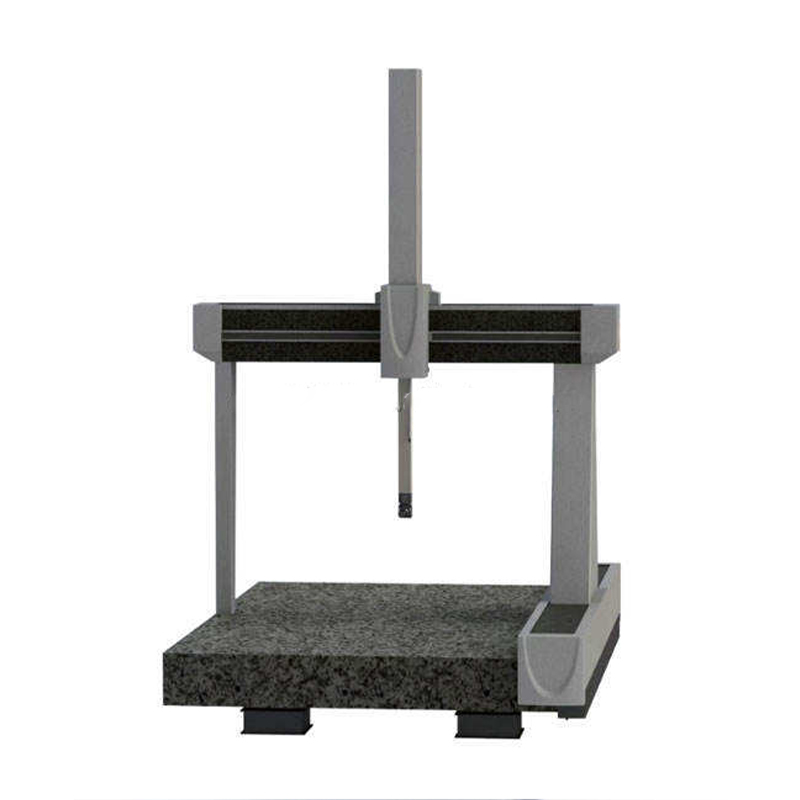

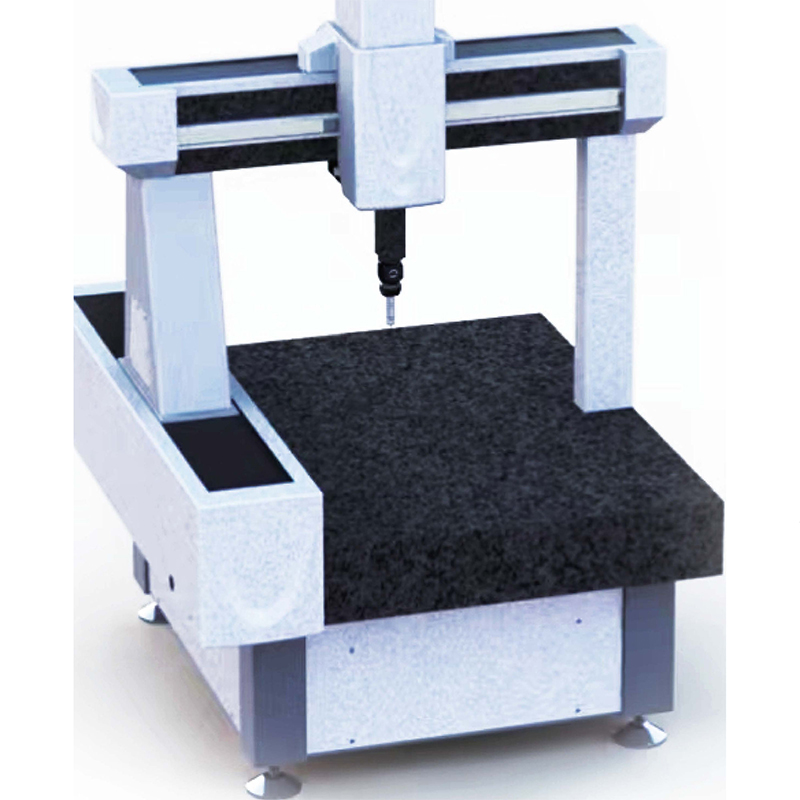

Bridge-type CMM for Precision Part Dimensional Inspection
The E-Helium Series Bridge-type Coordinate Measuring Machine (CMM) is a high-performance, high-precision industrial measurement device designed to meet strict quality control needs in manufacturing. Tailored for compatibility with Milling Machines, Lathe Machines, Grinding Machines, and Drilling Machines, it excels at capturing accurate spatial data to verify workpiece dimensions and geometry, making it a core tool for precision-focused industries.
$100,000.00
CompareParameter Table： Bridge-type CMM
|
Category
|
Details
|
|
Product Name
|
E-Helium Series Bridge-type Coordinate Measuring Machine (CMM)
|
|
Machine Type
|
Milling Machine, Lathe Machine, Grinding Machine, Drilling Machine
|
|
Machinery Test Report
|
Provided
|
|
Video Outgoing-Inspection
|
Provided
|
|
Weight
|
0.08 kg
|
|
After Warranty Service
|
Online Support
|
|
Precision
|
High Precision & High Performance
|
Application：
- Precision part dimension inspection
- Mold contour measurement
- Aerospace component calibration
- Machinery part tolerance testing
- Assembly size verification
Contact us to get your quotation now.
