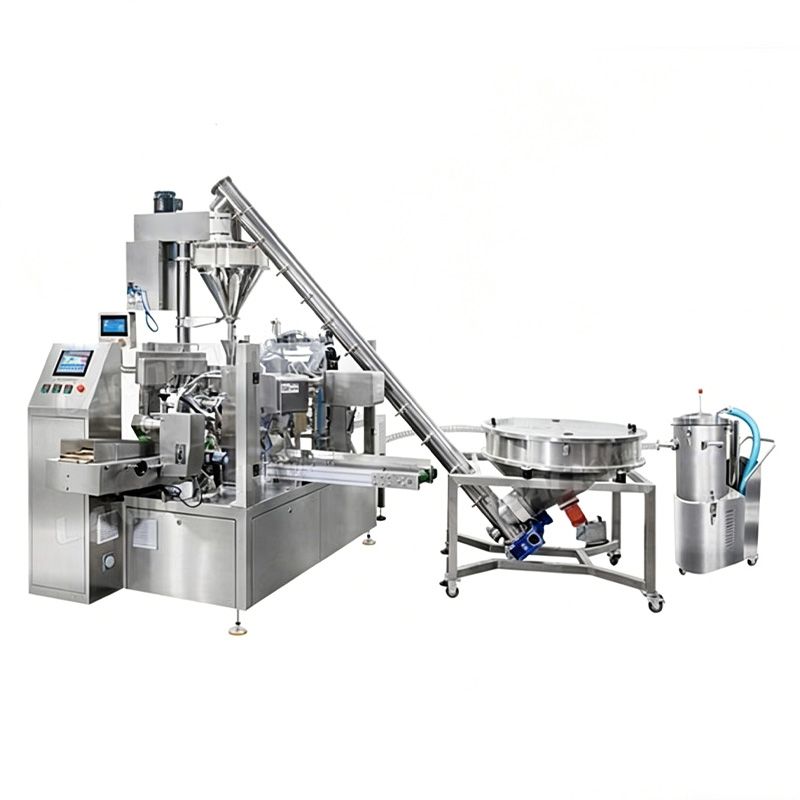

Automatic Powder Premade Pouch Packaging System for Food

Premade Pouch Packaging System Product Introduction

The automatic powder premade pouch packaging system for food is designed for efficient and hygienic packaging of various food-grade powder products such as milk powder, spice powder, flour, coffee powder, protein powder and nutritional powders. The system integrates pouch feeding, opening, powder filling, sealing and finished product output into a fully automatic packaging process.

Premade pouch packaging is widely used in the food industry due to its convenience, excellent shelf presentation and flexibility in packaging formats. For powder products, accurate dosing, dust control and reliable sealing are critical to ensure product quality and packaging consistency.

This system adopts an advanced auger filling mechanism combined with a stable premade pouch handling structure to achieve precise powder filling and consistent packaging performance. It supports various pouch types such as stand-up pouch, zipper pouch and flat pouch, making it suitable for different food packaging requirements.

Compared with manual packaging, this system significantly improves production efficiency, reduces labor cost and ensures consistent packaging quality. It can be integrated with upstream mixing and conveying systems and downstream inspection and cartoning systems to form a complete automated food powder packaging production line.

System Overview

This system is a complete premade pouch packaging solution specifically designed for food powder products. It combines automatic pouch handling, accurate powder dosing and reliable sealing into a compact and efficient system.

The auger filling system ensures precise and stable filling of powder materials, while the premade pouch structure enables flexible packaging and high production efficiency. The system is suitable for small to large-scale food production lines.

Production Process Description

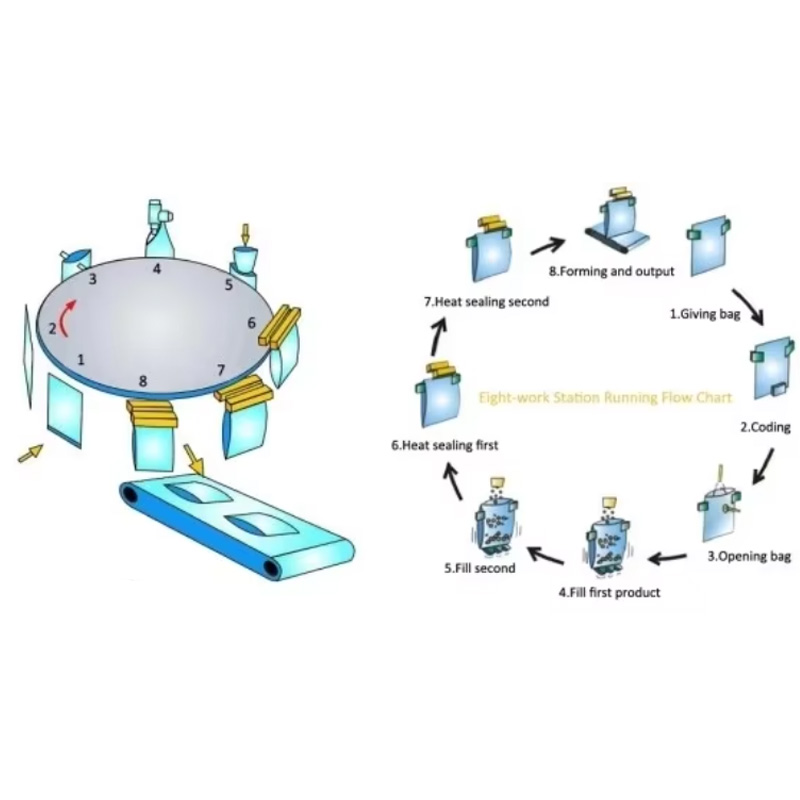

The 8-station rotary premade pouch packaging system operates in a continuous, step-by-step workflow as follows:
Bag Feeding (Station 1)The machine automatically picks up and feeds a premade pouch into the rotary indexing system.
Coding/Marking (Station 2)Production information such as batch numbers or expiry dates is printed on the pouch.
Pouch Opening (Station 3)The pouch is opened using vacuum suction to prepare it for filling.
First Filling (Station 4)The first portion of the product (primary material) is dispensed into the open pouch.
Second Filling (Station 5)A second ingredient (e.g., additives, liquids, or additional powder) is added, enabling multi-component packaging.
First Heat Sealing (Station 6)An initial seal is applied to the pouch to prevent spillage, forming a temporary closure.
Second Heat Sealing (Station 7)A second, stronger heat seal is performed to ensure the pouch is fully sealed, leak-proof, and airtight.
Forming & Discharge (Station 8)The finished package is formed, shaped, and then discharged from the rotary system onto the output conveyor for collection.

Why This System Is Designed This Way

Powder packaging requires high precision dosing, dust control and stable pouch handling to ensure packaging efficiency and product quality. Fine powders such as milk powder and spices can cause dust contamination and inconsistent filling if not properly controlled.

The system is designed with an auger filling mechanism to ensure accurate and stable powder dosing. The pouch handling system is optimized to ensure smooth pouch feeding and positioning during operation.

The sealing system is engineered to prevent powder contamination in the sealing area, ensuring clean and reliable sealing performance. Each stage of the system is designed to improve efficiency, reduce product loss and maintain consistent packaging quality.

This design ensures stable, hygienic and efficient operation for modern food powder packaging production lines.

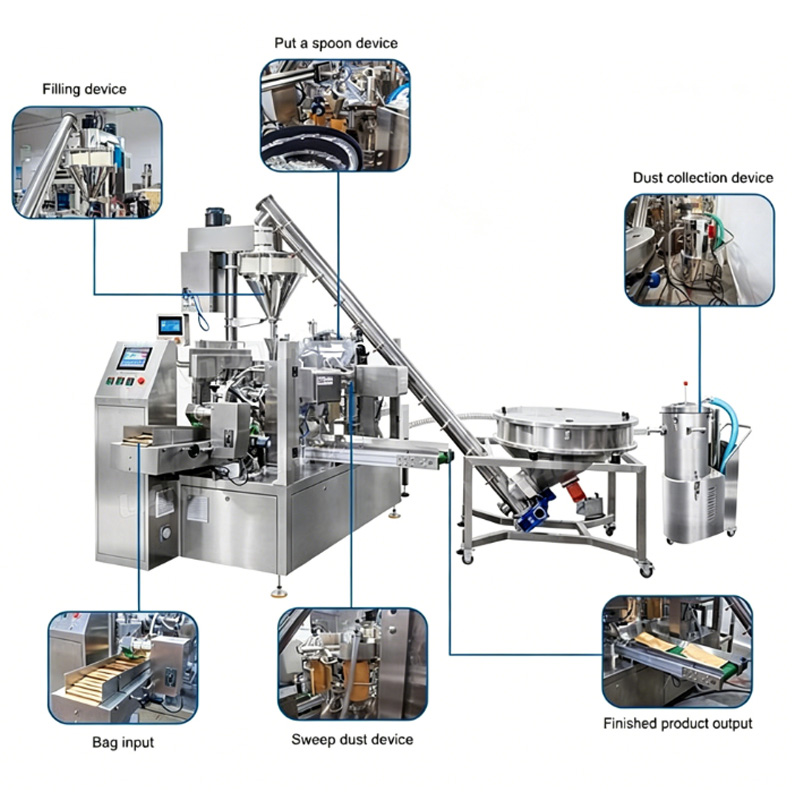

Solution Composition

. Premade pouch feeding system
. Pouch opening and positioning system
. Auger powder filling system
. Heat sealing system
. PLC control system
. Touch screen interface
. Finished product conveyor
. Optional dust collection system
. Optional nitrogen flushing system
. Optional weighing and inspection system
. Optional coding system

Technical Specifications

Machine type	Premade pouch powder packaging system
Application	Milk powder, spices, flour, coffee powder
Packaging type	Stand-up pouch, zipper pouch, flat pouch
Filling method	Auger filling
Production capacity	20–70 bags/min
Filling accuracy	±1–2%
Pouch size range	Customizable
Sealing type	Heat sealing
Control system	PLC with touch screen
Machine material	SS304 stainless steel
Power supply	220V / 380V / 415V
Air pressure	0.6–0.8 MPa
Operation mode	Automatic continuous
Optional system	Nitrogen flushing, dust collection
Integration	Compatible with full production line

Note:
All specifications can be customized based on product characteristics, packaging format and production requirements.

Main Features

. Fully automatic premade pouch packaging system improves efficiency and reduces labor cost

. Auger filling system ensures accurate and consistent powder dosing

. Stable pouch feeding and positioning system improves operation reliability

. Advanced sealing system ensures airtight and clean sealing quality

. Dust control design minimizes powder leakage and improves working environment

. SS304 stainless steel construction ensures hygiene and durability

. Flexible configuration supports different pouch sizes and powder types

. PLC control system allows easy operation and real-time monitoring



Key Engineering Advantages

Compared with conventional powder packaging machines, this system offers the following engineering advantages:

. High precision auger dosing system ensures stable and accurate powder filling

. Optimized pouch handling system improves positioning accuracy and reduces errors

. Advanced sealing structure prevents powder contamination during sealing

. Dust control design improves product quality and production environment

. Modular system design supports integration with complete packaging lines

. High efficiency operation increases production output while maintaining consistency



Why Choose This Machine

. Complete powder packaging system instead of standalone equipment

. Designed specifically for food-grade powder packaging applications

. Improves production efficiency and reduces labor cost

. Ensures consistent packaging quality and professional product appearance

. Supports flexible packaging formats for different market needs

. Easy integration into automated production lines

. Reliable performance for long-term industrial operation



Application Scenarios

. Packaging of milk powder, protein powder and nutritional products

. Food powder packaging for spices, flour and seasoning products

. Coffee powder packaging for retail and export markets

. Industrial food production requiring continuous packaging

. Flexible packaging lines handling multiple powder products



Industry Applications

Food processing industry

Dairy product manufacturing

Spice and seasoning production

Coffee and beverage production

Nutritional supplement industry

OEM food packaging production



FAQ

What products can this system package?
It is suitable for milk powder, spices, flour, coffee powder and other food-grade powders

What filling system is used?
The system uses an auger filling system for accurate powder dosing

Is the system suitable for food applications?
Yes, it is made of SS304 stainless steel and meets food hygiene standards

Can it handle different pouch sizes?
Yes, it can be customized according to pouch size and packaging requirements

Can the system control dust during packaging?
Yes, optional dust collection system can be added

Is the machine suitable for continuous production?
Yes, it supports stable and continuous industrial operation

Contact us today to get a customized powder premade pouch packaging solution and detailed quotation. Our engineering team will provide professional technical support and production line design tailored to your project.
