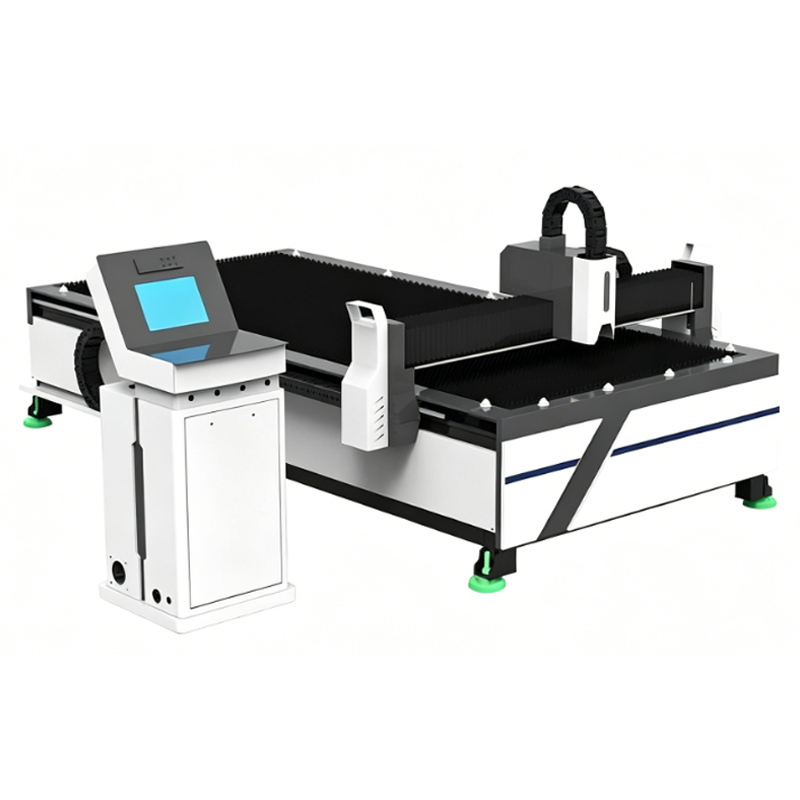

Automatic Plasma Metal Cutting System for Industrial Workshops

Automatic Plasma Metal Cutting System Product Introduction

The Automatic Plasma Metal Cutting System for Industrial Workshops is a high-efficiency CNC thermal cutting solution designed for steel fabrication workshops, sheet metal factories, industrial processing centers, engineering manufacturing plants, machinery fabrication enterprises, and customized metal production facilities. Integrating intelligent CNC automation technology, high-speed plasma contour cutting capability, precision servo transmission systems, and industrial-grade processing structures, the equipment delivers stable metal cutting performance for continuous workshop manufacturing operations.

This industrial plasma metal fabrication system is suitable for carbon steel cutting, stainless steel processing, galvanized sheet fabrication, aluminum contour cutting, industrial metal component manufacturing, machinery frame processing, metal enclosure fabrication, ventilation duct production, engineering structure manufacturing, and customized industrial contour processing projects. The system supports automated contour cutting, precision hole fabrication, slot processing, edge trimming, and continuous industrial production workflows while improving workshop productivity, contour consistency, and manufacturing efficiency.

Industrial Workshop Processing Challenges

• Industrial workshops require stable automated metal processing capability for continuous production

• Manual cutting operations reduce contour accuracy and manufacturing consistency

• Poor nesting optimization increases metal material waste during production

• Different metal thicknesses require flexible cutting parameter adjustment

• Workshop production efficiency depends on reliable CNC automation systems

• Thermal deformation and unstable contour quality affect downstream assembly operations

• Industrial fabrication enterprises require repeatable contour precision for batch manufacturing

• High-volume production workshops require fast and stable contour cutting performance

Intelligent Plasma Workshop Cutting Technology

• Intelligent CNC contour systems support automated industrial metal fabrication

• High-speed plasma cutting technology improves workshop production efficiency

• Precision servo transmission systems improve contour positioning consistency

• Smart nesting software optimizes sheet metal utilization and reduces production waste

• Automatic torch height control improves contour quality on different metal surfaces

• Stable plasma arc systems improve edge consistency during continuous fabrication

• Industrial automation systems improve workshop workflow coordination

• Flexible contour programming capability supports customized manufacturing requirements

Equipment Configuration

The Automatic Plasma Metal Cutting System for Industrial Workshops mainly includes:

• Industrial CNC plasma cutting platform

• High-performance plasma power supply

• Intelligent CNC controller system

• Precision servo motor transmission system

• Automatic torch height controller

• Industrial touch screen operating interface

• Linear guide rail motion structure

• CAD/CAM nesting software

• Heavy-duty machine frame

• Electrical control cabinet

• Industrial cable drag chain system

• Workshop ventilation interface

Optional configurations available:

• Rotary tube cutting module

• Flame cutting integration system

• Automatic loading platform

• Dust collection system

• Dual plasma cutting head

• Bevel contour cutting module

• Smart workshop production management software

Automated Workshop Production Workflow

Raw Material Positioning

Steel plates, stainless steel sheets, galvanized metal panels, aluminum plates, or industrial metal materials are positioned onto the processing platform.

Intelligent CAD Nesting

Contour drawings are imported into the intelligent nesting software for automatic path optimization and material utilization improvement.

Automatic Parameter Configuration

The CNC system automatically adjusts plasma current, contour speed, arc parameters, and torch height according to metal thickness and contour geometry.

High-Speed Plasma Contour Processing

The system performs contour cutting, slot fabrication, circular hole processing, edge trimming, thermal shaping, and industrial metal fabrication through intelligent plasma automation technology.

Finished Metal Component Manufacturing

Processed metal components are manufactured with stable contour precision, smooth edge quality, optimized dimensional consistency, and reliable industrial fabrication performance suitable for downstream welding, assembly, coating, and industrial manufacturing operations.

Core Advantages For Industrial Workshops

• Fully automated plasma processing improves workshop production efficiency

• Intelligent CNC systems improve contour repeatability and dimensional consistency

• High-speed plasma contour cutting reduces industrial production cycle time

• Smart nesting optimization reduces raw material waste and operating costs

• Automatic torch height systems improve contour quality across different materials

• Precision servo transmission systems improve contour positioning stability

• Flexible contour processing supports customized industrial manufacturing projects

• Industrial machine structures support continuous heavy-duty workshop operations

• Stable plasma arc systems improve edge smoothness and downstream fabrication quality

• Optimized contour processing reduces secondary grinding and finishing workload

Technical Specifications

Item	Specification
Product Name	Automatic Plasma Metal Cutting System for Industrial Workshops
Cutting Technology	CNC Plasma Thermal Cutting
CNC Controller	Industrial Intelligent CNC System
Plasma Power Range	63A – 300A
Cutting Accuracy	±0.20mm
Repeat Position Accuracy	±0.05mm
Positioning Accuracy	±0.10mm
Maximum Travel Speed	20000mm/min
Recommended Cutting Speed	500–12000mm/min
Effective Working Area	1300×2500mm / 1500×3000mm / Customizable
Maximum Processing Width	1500–3000mm
Maximum Processing Length	3000–12000mm
Drive System	Precision Servo Motor
Transmission Structure	Rack And Pinion + Linear Guide Rail
Torch Height Controller	Automatic THC System
Plasma Torch Type	Industrial High Precision Plasma Torch
Cooling Method	Air Cooling
Lubrication System	Automatic Central Lubrication
Table Structure	Heavy Duty Welded Steel Frame
Working Table Type	Blade Table / Water Table Optional
Carbon Steel Cutting Thickness	1–40mm
Stainless Steel Cutting Thickness	1–25mm
Aluminum Cutting Thickness	1–20mm
Hole Cutting Diameter	≥1.5× Material Thickness
Arc Voltage Adjustment	Automatic
Supported File Formats	DXF / DWG / NC
Nesting Software	Intelligent CAD/CAM System
Operation Interface	Industrial Touch Screen
Voltage	220V / 380V / 415V
Frequency	50Hz / 60Hz
Installed Power	8KW – 35KW
Processing Mode	Fully Automatic CNC
Optional Functions	Rotary Tube Cutting / Flame Cutting / Bevel Cutting
Industrial Applications	Sheet Metal / Steel Fabrication / Engineering Manufacturing

Main Features

• Fully automatic plasma contour processing capability

• Intelligent CNC industrial fabrication system

• High-speed thermal metal cutting performance

• Precision servo motion transmission technology

• Automatic torch height adjustment system

• Smart CAD/CAM nesting integration

• Stable industrial plasma arc performance

• Flexible multi-material contour fabrication support

• Continuous industrial workshop manufacturing workflow

• Heavy-duty industrial machine structure

Engineering Advantages

• Heavy welded machine structures improve operational stability during workshop production

• Intelligent servo systems improve contour repeatability and positioning consistency

• Automatic torch height systems improve contour quality on uneven metal surfaces

• Smart nesting software improves sheet metal utilization efficiency

• Stable plasma arc systems improve edge smoothness and contour precision

• Industrial electrical systems support long-duration automated manufacturing environments

• Flexible CNC contour programming supports customized fabrication projects

• Optimized thermal cutting workflows improve downstream welding preparation efficiency

• Precision motion systems reduce contour vibration during high-speed processing

• Automated industrial workflows reduce manual operation and improve workshop productivity

Application Scenarios

• Steel fabrication workshops

• Sheet metal processing factories

• Industrial enclosure manufacturing

• HVAC duct fabrication

• Engineering component processing

• Agricultural machinery fabrication

• Industrial frame manufacturing

• Stainless steel contour cutting

• Metal furniture manufacturing

• Customized industrial metal production

Industry Applications

• Steel fabrication industry

• Sheet metal processing industry

• Industrial manufacturing industry

• Mechanical engineering industry

• Construction equipment industry

• Agricultural machinery industry

• Industrial automation industry

• Metal processing workshops

• Engineering fabrication industry

• Industrial component manufacturing industry

Frequently Asked Questions

1. Why is automatic plasma cutting suitable for industrial workshops?

Automatic plasma systems improve production efficiency, contour consistency, workflow coordination, and continuous manufacturing capability.

2. What metal materials can this system process?

The equipment supports carbon steel, stainless steel, galvanized sheets, aluminum, and multiple industrial metal materials.

3. What advantages does CNC contour cutting provide?

CNC contour cutting improves dimensional consistency, contour precision, production speed, and automated manufacturing efficiency.

4. Why is automatic torch height control important?

Automatic torch height systems maintain stable cutting distance and improve contour quality across different material surfaces.

5. Can complex contour designs be processed automatically?

Yes. The CNC system supports automated contour fabrication using CAD engineering files and intelligent nesting software.

6. Why is intelligent nesting important for industrial workshops?

Smart nesting improves material utilization, reduces sheet waste, and lowers manufacturing costs.

7. Is the system suitable for continuous industrial manufacturing?

Yes. The machine is designed for heavy-duty workshop production and continuous automated metal fabrication environments.

8. Can the system process different material thicknesses?

Yes. Cutting parameters can be automatically adjusted according to material type and thickness requirements.

9. Which industries commonly use automatic plasma cutting systems?

Industries including steel fabrication, sheet metal processing, engineering manufacturing, and industrial component fabrication commonly use these systems.

10. What production benefits does industrial automation provide?

Industrial automation improves contour repeatability, production speed, workflow efficiency, manufacturing consistency, and workshop productivity.
