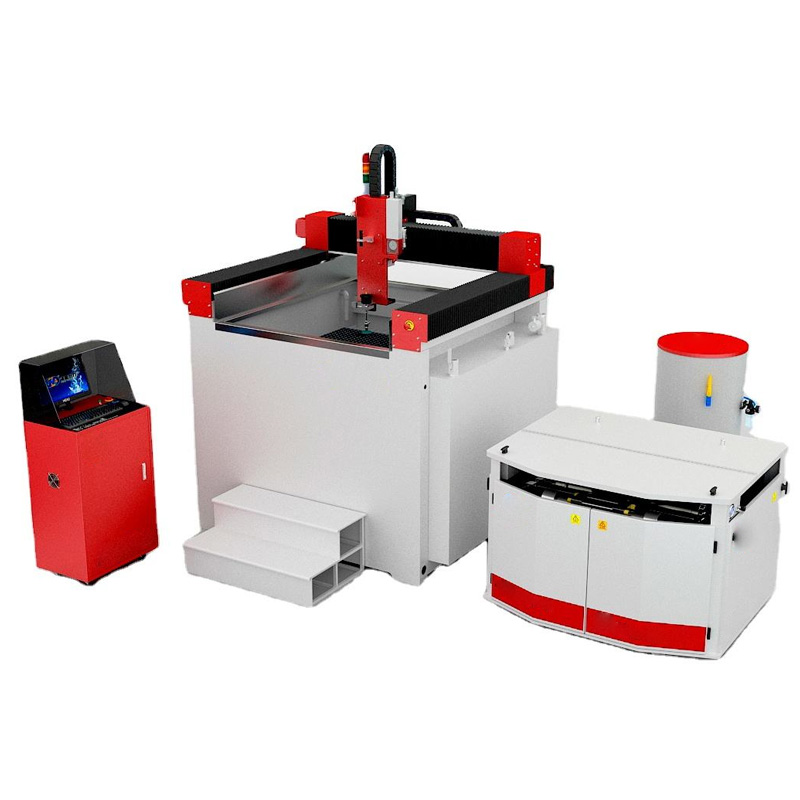

CNC Waterjet Cutting Machine Product Introduction

Automatic CNC Waterjet Cutting Machine is a high-precision industrial cutting solution specially designed for metal cutting, stainless steel processing, aluminum fabrication, carbon steel cutting, stone cutting, glass processing, ceramic cutting, composite material cutting, aerospace component manufacturing, automotive parts fabrication, and industrial custom machining applications.

This CNC waterjet cutting machine adopts ultra-high-pressure waterjet technology combined with intelligent CNC automatic control systems to achieve precise cold cutting without thermal deformation, burning, cracking, or material damage. The equipment supports high-precision cutting for complex shapes, irregular contours, intricate patterns, and industrial manufacturing requirements.

Compared with traditional plasma cutting, flame cutting, and laser cutting systems, the automatic CNC waterjet cutting machine provides smoother cutting edges, reduced material deformation, improved cutting precision, wider material compatibility, and environmentally friendly processing performance.

Manufactured with heavy-duty industrial machine structures and advanced motion control technology, the CNC waterjet cutting machine supports continuous industrial production with stable cutting accuracy, high processing efficiency, low material waste, and intelligent automation capability.

As a professional automatic CNC waterjet cutting machine manufacturer, we provide customized waterjet cutting solutions according to cutting material, processing thickness, production capacity, cutting precision, automation requirements, and industrial manufacturing standards.

Common Industrial Cutting Problems

● Traditional thermal cutting methods may cause material deformation and heat-affected zones.

● Plasma cutting and flame cutting often create rough cutting edges requiring secondary processing.

● Complex cutting patterns are difficult to process accurately with conventional cutting machines.

● Material waste increases production costs and reduces industrial manufacturing efficiency.

● High-temperature cutting methods may damage sensitive materials and reduce product quality.

● Different industrial materials require flexible cutting technologies and adjustable processing parameters.

● Manual cutting processes reduce production precision and increase labor costs.

● Inadequate cutting precision affects final product assembly and industrial manufacturing standards.

Our CNC Waterjet Cutting Solution

● Ultra-high-pressure waterjet technology supports cold cutting without thermal deformation.

● Intelligent CNC control systems provide high-precision automatic cutting performance.

● Multi-material processing capability supports metal, stone, glass, ceramic, and composite cutting.

● Automatic cutting path optimization improves material utilization and production efficiency.

● High-pressure abrasive waterjet systems improve thick material cutting capability.

● Stable cutting precision supports complex industrial component manufacturing.

● Energy-saving industrial engineering design reduces long-term operating costs.

● Heavy-duty industrial structures support continuous large-scale manufacturing applications.

Main Features

● Advanced CNC waterjet cutting technology

● Ultra-high-pressure cold cutting system

● Intelligent CNC automatic control system

● High-precision industrial cutting capability

● Multi-material cutting applications

● Smooth cutting edges with minimal secondary processing

● No thermal deformation or burning damage

● High-efficiency abrasive waterjet cutting

● Stable cutting accuracy and repeatability

● Automatic cutting path optimization system

● Heavy-duty industrial machine structure

● Energy-saving industrial engineering design

● Flexible cutting parameter adjustment

● Suitable for continuous industrial operation

● Easy operation and low maintenance cost

Technical Specifications

Capacity Solutions

Customized automatic CNC waterjet cutting machines are available according to cutting material, worktable size, cutting thickness, processing precision, automation level, and industrial production requirements.

Optional configurations including dual cutting heads, abrasive recycling systems, automatic loading tables, CAD/CAM integration software, dust collection systems, and robotic material handling systems can be integrated according to industrial manufacturing requirements.

Main Machine Components

● High-Pressure Pump System

● Ultra-high-pressure intensifier pump
● Pressure stabilization system
● Water filtration system
● Cooling circulation system
● High-pressure pipeline assembly

● CNC Motion Control Section

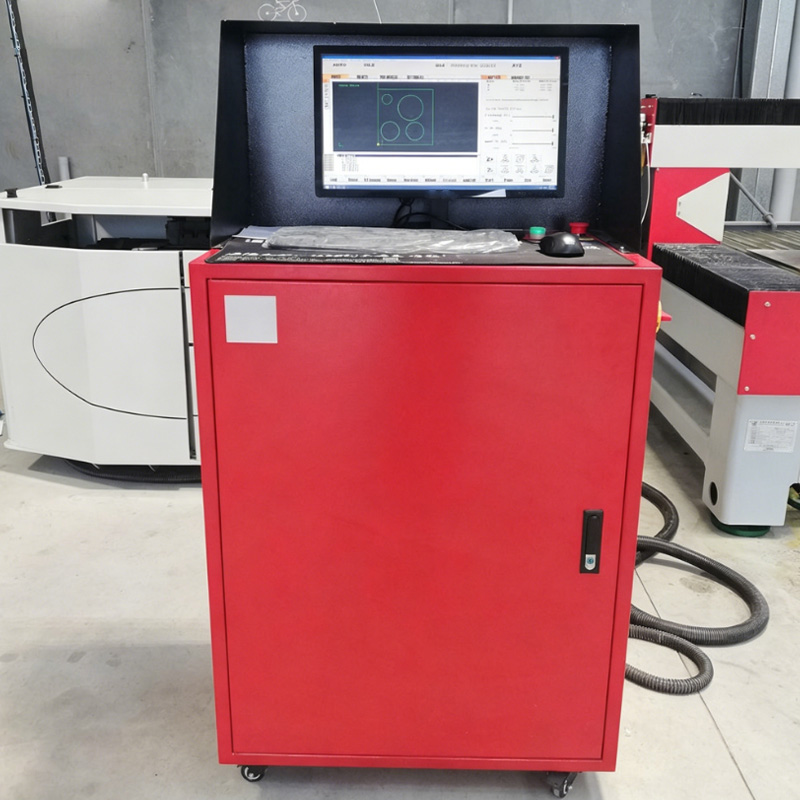

● CNC automatic control cabinet
● Servo motion system
● Precision linear guide rails
● High-precision positioning system
● Automatic path control software

● Cutting Head Section

● Waterjet cutting nozzle
● Abrasive mixing chamber
● Automatic abrasive feeding system
● Precision cutting head assembly
● Cutting angle adjustment system

● Worktable Section

● Heavy-duty cutting platform
● Water tank system
● Material support system
● Slag collection system
● Automatic drainage system

● Electrical & Safety Section

● Touchscreen HMI interface
● Emergency stop protection system
● Intelligent monitoring system
● Automatic fault diagnosis system
● Industrial electrical protection system

Working Principle

● Ultra-High-Pressure Water Generation

The intensifier pump generates ultra-high-pressure water flow for industrial cutting applications.

● Abrasive Mixing Process

Abrasive materials are mixed with high-pressure water to increase cutting capability for hard materials.

● CNC Automatic Path Control

The CNC system controls cutting movement precisely according to CAD design programs.

● High-Precision Cold Cutting

The high-pressure waterjet cuts materials without generating thermal damage or deformation.

● Automatic Material Processing

Complex shapes, curves, holes, and industrial components are processed automatically.

● Finished Product Output

Finished components are removed from the cutting platform for assembly or further processing.

Engineering Advantages

● No Thermal Deformation

Cold waterjet cutting prevents burning, cracking, heat-affected zones, and material deformation.

● High Cutting Precision

Advanced CNC systems provide accurate cutting for complex industrial manufacturing requirements.

● Multi-Material Compatibility

The machine supports cutting of stainless steel, aluminum, stone, ceramic, glass, rubber, composites, and many industrial materials.

● Reduced Secondary Processing

Smooth cutting edges reduce grinding, polishing, and additional finishing requirements.

● Improved Material Utilization

Automatic nesting and CNC optimization reduce material waste and improve manufacturing efficiency.

● Environmentally Friendly Processing

Waterjet cutting reduces smoke, dust, and thermal pollution compared with traditional cutting technologies.

● Suitable for Complex Industrial Components

The machine supports precision cutting for aerospace, automotive, machinery, and architectural manufacturing applications.

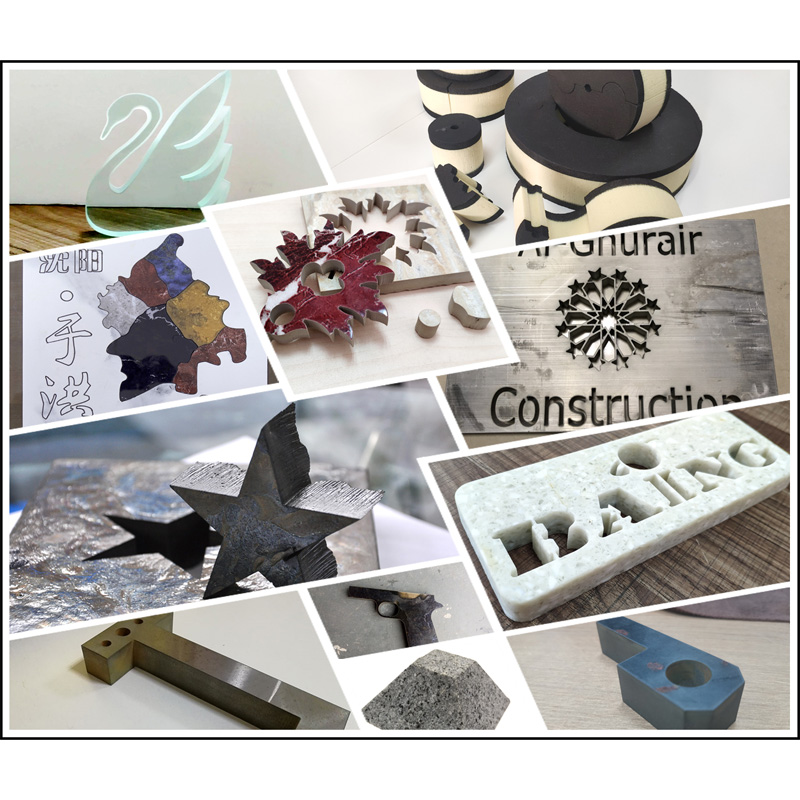

Application Scenarios

● Stainless steel sheet cutting
● Aluminum plate processing
● Carbon steel fabrication
● Stone slab cutting
● Glass cutting applications
● Ceramic processing projects
● Metal decorative panel cutting
● Industrial component manufacturing
● Aerospace precision cutting
● Automotive parts fabrication
● Architectural material processing
● Industrial custom machining

Industry Applications

● Metal Fabrication Industry

Precision waterjet cutting systems for stainless steel, aluminum, carbon steel, and industrial metal processing.

● Stone Processing Industry

Waterjet cutting equipment for granite, marble, quartz, and architectural stone fabrication.

● Automotive Manufacturing Industry

Complex automotive component cutting and industrial precision fabrication.

● Aerospace Industry

High-precision cutting for aerospace components and advanced industrial manufacturing.

● Glass & Ceramic Industry

Cold cutting technology for fragile material processing without cracking or thermal damage.

● Industrial Machinery Manufacturing

Automatic CNC waterjet cutting systems for industrial parts production and custom machining projects.

FAQ

1. What is a CNC waterjet cutting machine?

A CNC waterjet cutting machine uses ultra-high-pressure water mixed with abrasive materials to cut industrial materials precisely without heat damage.

2. What materials can this machine cut?

The machine can cut stainless steel, carbon steel, aluminum, stone, marble, granite, ceramic, glass, rubber, plastic, and composite materials.

3. Why is waterjet cutting better than thermal cutting?

Waterjet cutting does not create heat-affected zones, burning, cracking, or material deformation.

4. Is the machine suitable for thick metal cutting?

Yes. Abrasive waterjet systems support thick metal and industrial material cutting applications.

5. Can the machine process complex cutting patterns?

Yes. CNC automatic control systems support highly complex industrial cutting designs and contours.

6. What industries commonly use waterjet cutting machines?

Metal fabrication, aerospace, automotive, stone processing, architectural manufacturing, and industrial machinery industries commonly use CNC waterjet cutting systems.

7. Does the machine support automatic operation?

Yes. CNC intelligent control systems support fully automatic industrial cutting operation.

8. Is abrasive feeding automatic?

Yes. Automatic abrasive feeding systems improve continuous cutting efficiency and production stability.

9. Can the cutting table size be customized?

Yes. Worktable dimensions and cutting areas can be customized according to industrial production requirements.

10. Do you provide complete waterjet cutting solutions?

Yes. We provide complete CNC waterjet cutting systems including high-pressure pumps, abrasive systems, CNC control software, cutting tables, and industrial automation solutions.
