Automatic Chili Sauce Paste Filling Machine for Packaging

Chili Sauce Paste Filling Machine Product Introduction

Automatic Chili Sauce Paste Filling Machine for Packaging is a high-speed sachet packaging solution designed for automatic filling and sealing of liquid and paste products. The machine integrates material feeding, accurate measuring, pouch forming, filling, sealing and cutting processes into one complete packaging system.

Designed for chili sauce, hot sauce, ketchup, jam, honey, mayonnaise and other viscous products, this automatic paste filling machine provides stable filling accuracy, reliable sealing performance and efficient production capacity. The compact structure and intelligent control system make it suitable for food manufacturers requiring continuous and hygienic packaging operations.

With customizable filling volume, pouch size and packaging materials, the machine offers a flexible solution for small sachet packaging in the food, beverage and condiment industries.



Industry Pain Points

Food manufacturers producing sauces and viscous products often face challenges such as inconsistent manual filling, high labor costs, product waste and unstable packaging quality.

For products like chili sauce and paste materials, accurate dosing, clean filling and reliable sealing are essential to maintain product quality and improve production efficiency.

Our Solution

The Automatic Chili Sauce Paste Filling Machine provides a complete automated sachet packaging solution for liquid and paste products.

Through precise filling control, automatic pouch forming and heat sealing technology, the machine ensures consistent package volume, reduces material waste and improves production efficiency.

The equipment helps sauce manufacturers achieve hygienic, standardized and cost-effective packaging production.

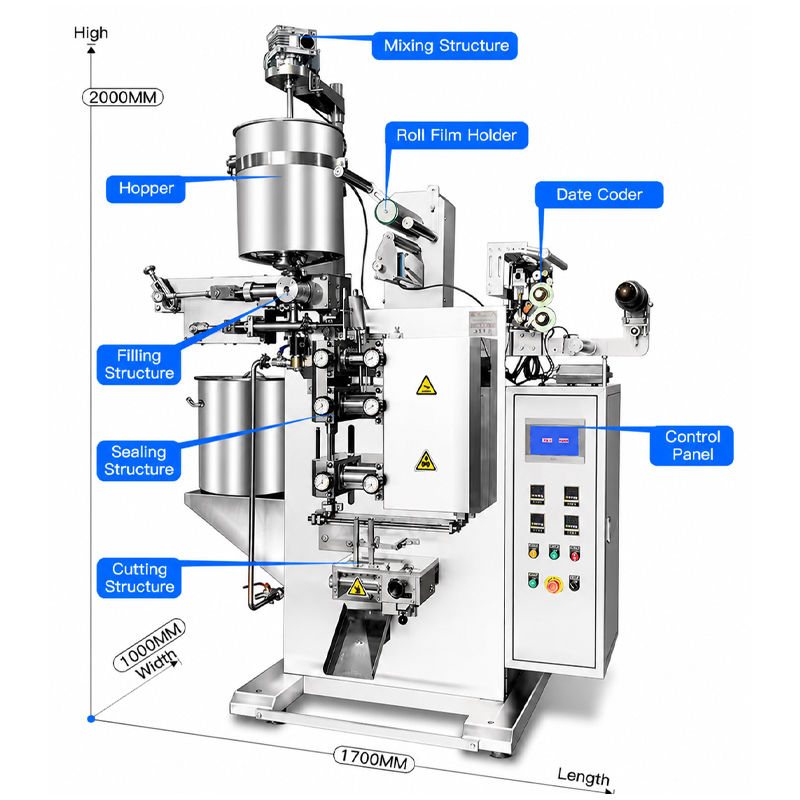

Product Structure

Material Feeding System

The feeding system transfers sauce or paste materials smoothly into the filling unit, ensuring continuous production.

Filling System

The precision filling system is designed for liquid and high-viscosity paste products, providing accurate dosing and reducing product loss.





Pouch Forming System

The machine automatically forms packaging bags from roll film according to preset pouch dimensions.

Sealing System

The heat sealing system creates secure package sealing to prevent leakage and protect product quality.

Cutting System

The automatic cutting unit separates finished sachets for easy collection and transportation.

Control System

The intelligent control panel allows operators to adjust filling parameters, packaging speed and machine settings conveniently.

Working Principle

Film Feeding
→ Packaging film is automatically transferred into the forming unit.

Pouch Forming
→ The machine creates individual sachets according to preset size.

Material Filling
→ Chili sauce or paste products are accurately filled into each pouch.

Heat Sealing
→ The package is sealed with controlled heating technology.

Bag Cutting
→ Finished sachets are automatically separated.

Product Output
→ Completed packages are collected for further processing or transportation.

Key Features & Advantages

The machine integrates filling, pouch forming, sealing and cutting functions into one automatic packaging system.

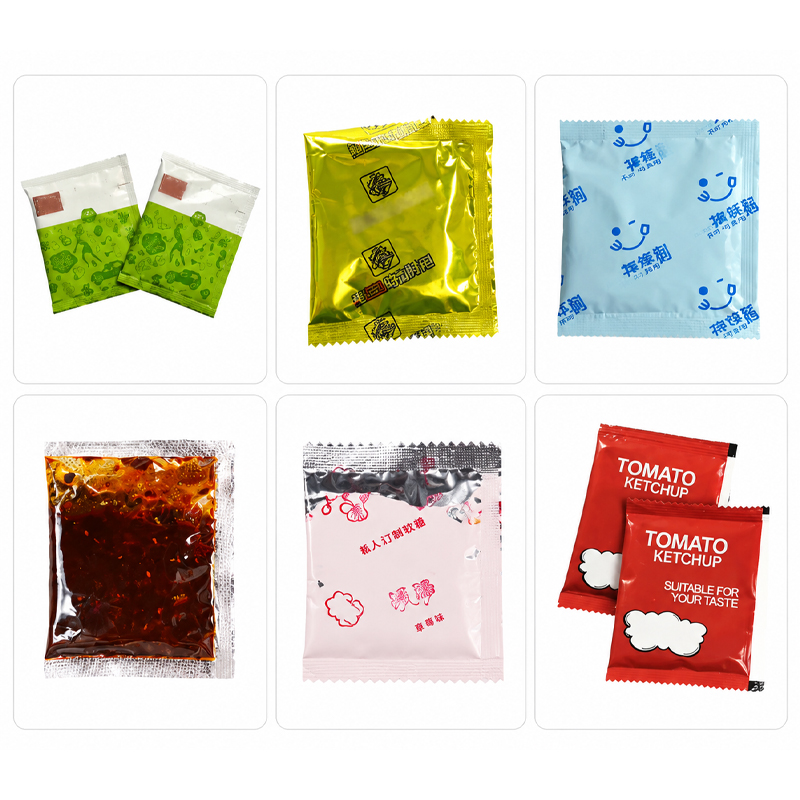

Suitable for chili sauce, hot sauce, jam, honey and other liquid or paste products.

The precision filling system ensures stable filling volume and reduces material waste.

High-speed operation improves production efficiency compared with manual packaging methods.

The automatic sealing system provides reliable package protection and reduces leakage risks.

The compact structure saves production space and is suitable for different factory environments.

The intelligent control system makes operation simple and parameter adjustment convenient.

Stainless steel construction meets food processing hygiene requirements.

Customizable pouch size, filling volume and packaging materials are available according to customer needs.

Technical Parameters

Parameter	Specification
Equipment Type	Automatic Liquid and Paste Sachet Packaging Machine
Applicable Products	Chili Sauce, Hot Sauce, Jam, Ketchup, Honey and Other Liquid/Paste Products
Packaging Speed	60–120 Bags/min
Filling Range	3–30g / 30–70g (Customizable)
Bag Width	30–100 mm
Bag Length	50–180 mm
Packaging Type	3-Side Sealing and 4-Side Sealing
Filling System	Servo Piston Pump for Paste Products / Magnetic Pump with Solenoid Valve for Liquid Products
Hopper Capacity	50L (Optional Mixing and Heating Function)
Film Width	60–200 mm
Film Roll Outer Diameter	≤400 mm
Cutting Options	Flat Cutting, Serrated Cutting, Dotted Cutting, Rounded Cutting
Optional Functions	Date Coding, Easy Tear Notch
Control System	Intelligent PLC Control System
Power Supply	380V, 50Hz
Total Power	5.5 kW
Machine Dimensions	Approx. 1700 × 1000 × 2000 mm
Machine Weight	Approx. 650 kg

Optional Configurations

The machine can be customized according to different production requirements:

• Different filling volumes
• Different pouch sizes
• Heating hopper system
• Mixing hopper system
• Different filling pumps
• Customized sealing methods
• Automatic feeding systems

Application Scenarios

Chili sauce manufacturers use this machine for automatic portion packaging of spicy sauces and seasoning products.

Food processing factories apply the equipment for packaging ketchup, jam, honey and other viscous food products.

Condiment production plants use it to improve packaging efficiency and achieve standardized sachet production.

Fast food suppliers use small sachet packaging for sauces and seasonings.

Beverage and food ingredient companies use the machine for liquid and paste product packaging.

Restaurant supply companies use it for individual sauce packs and convenient food packaging.

Small and medium food factories use it as an efficient alternative to manual filling.

Large food production plants use it for continuous automated packaging operations.

Industry Applications

Food Processing Industry: Used for automatic packaging of various liquid and paste food products, improving production efficiency and ensuring consistent packaging quality.

Condiment Manufacturing Industry: Suitable for chili sauce, hot sauce, ketchup, salad dressing and other seasoning products requiring accurate filling and sealing.

Sauce Production Industry: Applied for packaging tomato sauce, fruit sauce, barbecue sauce, pasta sauce and other viscous food materials.

Ready-to-Eat Food Industry: Provides convenient portion packaging solutions for sauces, seasonings and food ingredients used with prepared meals.

Fast Food Supply Industry: Used for producing individual sauce sachets for restaurants, catering companies and food service providers.

Jam and Spread Industry: Suitable for filling and packaging jam, honey, chocolate spread and other high-viscosity sweet products.

Bakery Industry: Used for packaging cream, chocolate sauce, custard and other bakery filling materials.

Dairy Product Industry: Suitable for packaging yogurt sauce, cream products and other semi-liquid dairy materials.

Beverage Ingredient Industry: Applied for filling syrup, concentrated ingredients and other liquid or paste additives.

Organic Food Industry: Provides hygienic packaging solutions for natural sauces, jams and clean-label food products.

FAQ

1. What products can this chili sauce filling machine package?

It is suitable for chili sauce, hot sauce, ketchup, jam, honey, mayonnaise and other liquid or paste products.

2. Can it handle high-viscosity products?

Yes. The filling system is designed for liquid and paste materials with different viscosities.

3. What packaging form does the machine produce?

It mainly produces small sachet bags, including three-side and four-side sealed pouches.

4. Is the filling volume adjustable?

Yes. The filling volume can be customized according to product requirements.

5. Is this machine suitable for food production?

Yes. The machine uses hygienic materials and is widely used in food packaging applications.

6. Can different pouch sizes be produced?

Yes. The pouch size can be customized according to packaging requirements.

7. How does the machine improve production efficiency?

It integrates feeding, filling, sealing and cutting processes, reducing manual operation and increasing output.

8. What filling system does the machine use?

The machine uses a precision filling system suitable for liquid and paste products.

9. Can the machine package other sauces?

Yes. It can package various sauces, seasonings and viscous food products.

10. Can the machine be customized?

Yes. Filling range, pouch size, sealing method and configuration can be customized.
