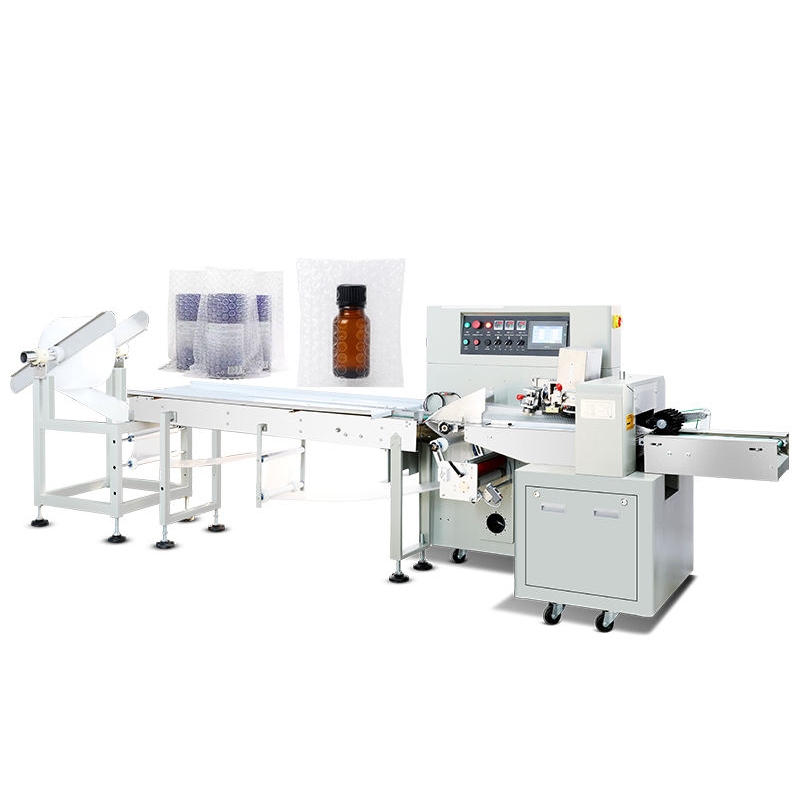

Automatic Bubble Wrap Packaging Machine for Cosmetic Bottles

Automatic Bubble Wrap Packaging Machine Product Introduction

The Automatic Bubble Wrap Packaging Machine for Cosmetic Bottles is a high-efficiency horizontal flow wrapping solution designed for protective packaging of fragile and valuable products. It uses air bubble film as the packaging material to provide cushioning protection during transportation, storage, and handling.

This automatic bubble wrapping machine integrates film feeding, product conveying, bag forming, sealing, and cutting into one complete packaging process. It is especially suitable for cosmetic bottles, essential oil containers, perfume bottles, skincare products, glass containers, and other delicate products requiring additional protection.

Compared with traditional manual bubble wrapping methods, this machine improves packaging speed, reduces labor costs, and ensures consistent packaging quality. The servo-controlled system provides accurate film positioning, stable sealing performance, and flexible adjustment according to different product sizes.

With its compact structure and intelligent control system, this equipment is an ideal choice for cosmetic manufacturers, e-commerce suppliers, and industries requiring professional protective packaging solutions.

Industry Pain Points

Fragile products such as cosmetic bottles and glass containers often face packaging challenges:

Manual bubble wrapping requires high labor input and low production efficiency.

Inconsistent wrapping quality affects product protection performance.

Different product sizes make standard packaging difficult.

Poor protection during transportation may cause product damage.

High-volume production requires stable and continuous packaging solutions.

Traditional packaging methods occupy more labor and production space.

Our Solution

The Automatic Bubble Wrap Packaging Machine provides an efficient solution for automated protective packaging.

The machine automatically feeds bubble film, transports products, forms protective packages, seals edges, and cuts finished packages. The complete packaging process minimizes manual operation while maintaining stable protection performance.

For cosmetic bottles, essential oil products, perfume containers, and other fragile items, the bubble film packaging structure provides excellent shock absorption and surface protection during logistics and distribution.

The machine supports customized packaging dimensions and can be integrated into automated production lines to improve overall packaging efficiency.

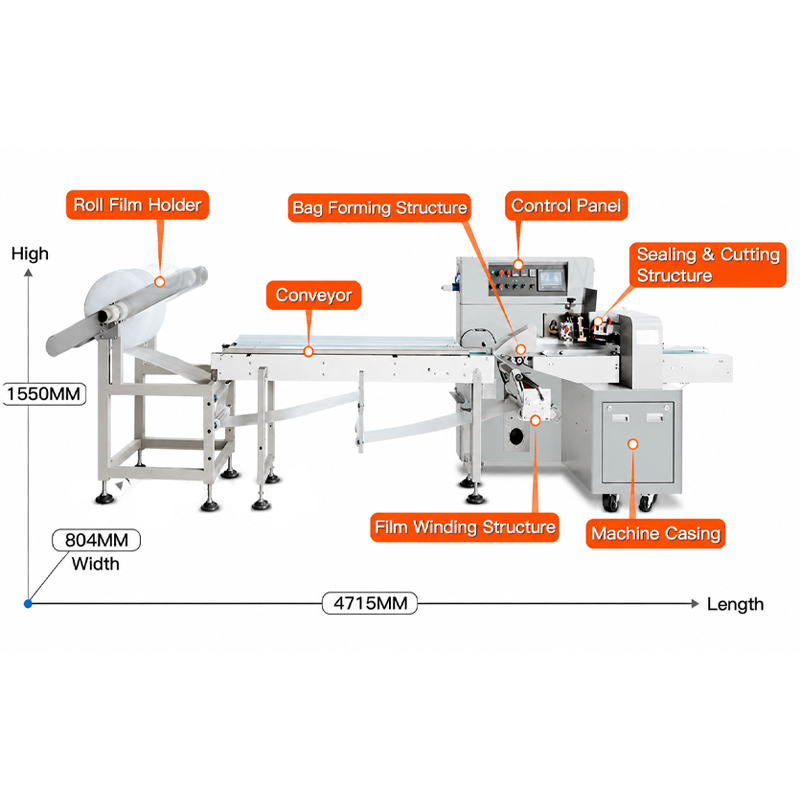

System Overview

The automatic bubble wrap packaging system consists of:

Automatic film feeding unit

Product conveyor system

Bubble film forming structure

Servo-driven packaging system

Horizontal sealing mechanism

Cutting system

Touch screen control panel

Finished package discharge conveyor

Protective machine frame

The integrated design ensures smooth operation and reliable packaging performance.

Process Description

Bubble Film Feeding

The bubble film roll is installed on the film holder and automatically supplied into the packaging system.

Product Conveying

Products are transported continuously through the conveyor system with stable positioning.

Package Forming

The machine automatically wraps products with bubble film to create a protective package structure.

Heat Sealing

The packaging film is sealed securely according to preset parameters.

Cutting and Output

Finished bubble-wrapped products are automatically separated and transferred for collection or further processing.

Main Features

Automatic bubble film feeding and wrapping.

Horizontal flow packaging design for continuous production.

Suitable for fragile cosmetic and bottle products.

Servo motor control ensures accurate packaging operation.

Adjustable packaging length according to product requirements.

Intelligent color mark detection improves positioning accuracy.

Anti-cut protection system enhances operator safety.

Touch screen interface for easy parameter adjustment.

Suitable for customized protective packaging solutions.

Stainless steel structure for stable industrial operation.

Key Performance Highlights

The Automatic Bubble Wrap Packaging Machine combines efficient packaging speed with reliable product protection.

Its servo-controlled system improves film feeding accuracy and reduces packaging material waste. The horizontal wrapping structure allows products to move continuously through the machine, making it suitable for medium and large-scale production.

The bubble film packaging method provides cushioning protection against impact, scratches, and transportation damage, making it especially valuable for premium cosmetic products and fragile containers.

Why Choose This Equipment

Provides professional protection for fragile products.

Improves packaging efficiency compared with manual wrapping.

Reduces labor costs and production time.

Ensures consistent package appearance.

Minimizes product damage during transportation.

Supports various product sizes and packaging formats.

Easy operation with digital control system.

Suitable for integration with automatic production lines.

Technical Specifications

Parameter	Specification
Equipment Type	Automatic Bubble Wrap Packaging Machine
Packaging Material	Air bubble film, protective packaging film
Power Supply	110V, 50/60Hz
Motor Power	6.3 kW
Maximum Film Width	Up to 340 mm (590 mm / 790 mm optional)
Packaging Length	≥120 mm
Bag Width Range	30–110 mm
Maximum Product Height	≤60 mm
Maximum Film Roll Diameter	≤320 mm
Packaging Speed	5–20 bags/min (depending on product size and packaging material)
Packaging Method	Automatic film feeding, forming, wrapping, sealing and cutting
Control System	Intelligent PLC control with touch screen operation
Suitable Products	Cosmetic bottles, essential oil bottles, perfume bottles, fragile products and small retail items
Machine Size	Approx. 4715 × 804 × 1550 mm (L × W × H)
Machine Weight	About 650 kg
Customization	Film size, packaging dimensions and conveyor structure can be customized according to product requirements

Note: Actual packaging speed and specifications may vary depending on product dimensions, bubble film material, and customized machine configuration.

Optional Equipment

Automatic product feeding system.

Customized conveyor extension.

Printing and coding system.

Automatic labeling system.

Different sealing knife configurations.

Customized bubble film packaging sizes.

Integration with filling and production lines.

Application Scenarios

Cosmetic Bottle Protection Packaging

The machine is suitable for wrapping cosmetic bottles, perfume bottles, essential oil containers, and skincare products that require additional protection during transportation.

Essential Oil Product Packaging

For small glass essential oil bottles, bubble film packaging provides cushioning protection and improves shipping safety.

E-commerce Product Packaging

Suitable for online retail products requiring attractive and protective packaging before delivery.

Premium Gift Packaging

Provides professional protective wrapping solutions for high-value cosmetic and beauty products.

Fragile Container Packaging

Suitable for glass bottles, small containers, and delicate products that require impact protection.

OEM Cosmetic Manufacturing

Helps OEM factories achieve standardized and efficient protective packaging operations.

Industry Applications

Cosmetics Industry

Used for perfume, essential oil, skincare, and beauty product protective packaging.

Personal Care Industry

Suitable for lotions, serums, creams, and small personal care containers.

Pharmaceutical Industry

Can be used for protective packaging of small bottles and sensitive products.

Daily Chemical Industry

Suitable for various bottled consumer products requiring transportation protection.

E-commerce and Retail Industry

Provides automated packaging solutions for online product fulfillment.

Glass Bottle Manufacturing Industry

Used for protecting fragile glass containers during storage and logistics.

FAQ

1. What products can this bubble wrap packaging machine package?

It is mainly used for cosmetic bottles, essential oil bottles, perfume containers, glass products, and other fragile items requiring protection.

2. What packaging material does the machine use?

The machine mainly uses air bubble film and other protective wrapping films.

3. Is this machine suitable for glass bottles?

Yes. The bubble film provides cushioning protection and helps reduce damage caused by impact during transportation.

4. Can the packaging size be adjusted?

Yes. The packaging length and film size can be adjusted according to product dimensions.

5. Does the machine require manual operation?

The machine automatically completes film feeding, wrapping, sealing, and cutting, reducing manual operation.

6. Can it connect with other packaging machines?

Yes. It can be integrated with conveyors, filling machines, labeling machines, and other automatic systems.

7. Is the machine suitable for cosmetic factories?

Yes. It is widely used in cosmetic, beauty care, and essential oil production industries.

8. Can different product shapes be packaged?

Yes. The machine can be customized according to product size and packaging requirements.

9. How does bubble film protect products?

The air cushion structure absorbs impact and reduces scratches, vibration, and transportation damage.

10. Can the machine be customized for my products?

Yes. Packaging dimensions, conveyor design, and machine configuration can be customized according to specific product requirements.
