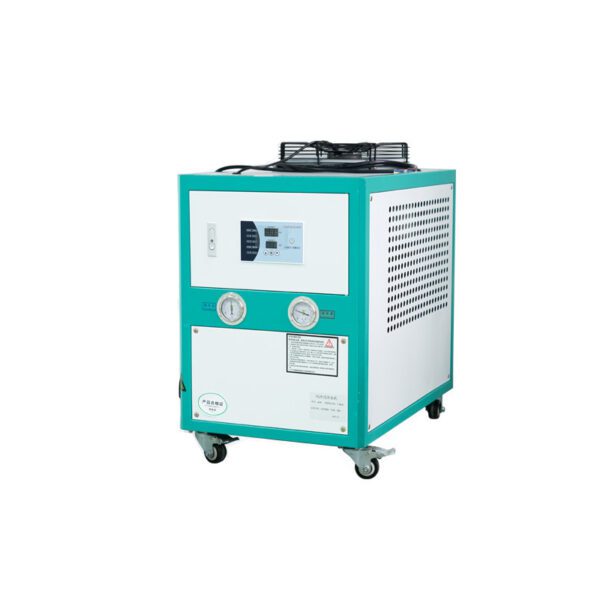

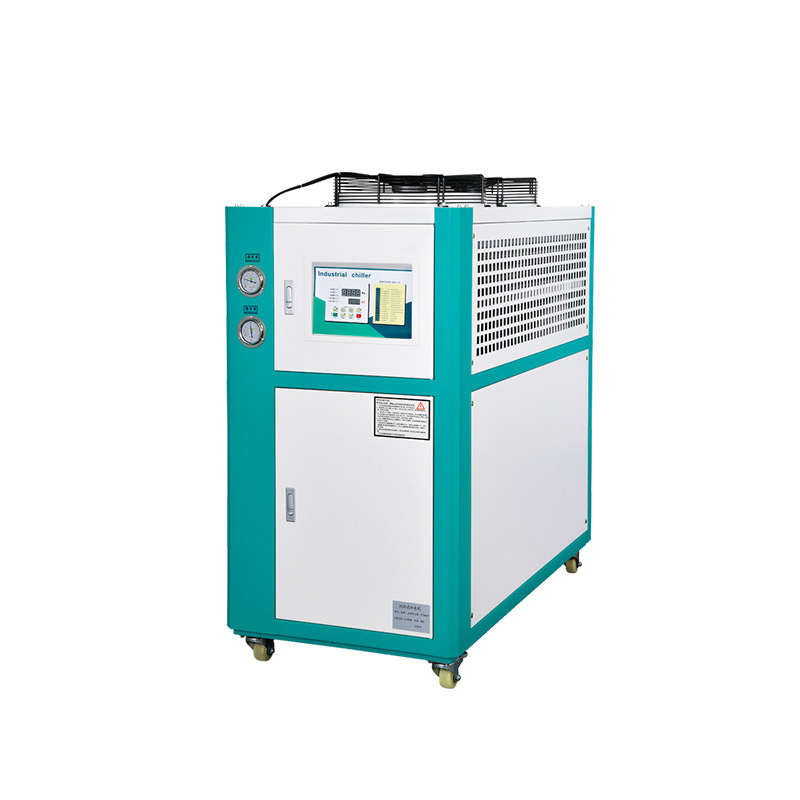

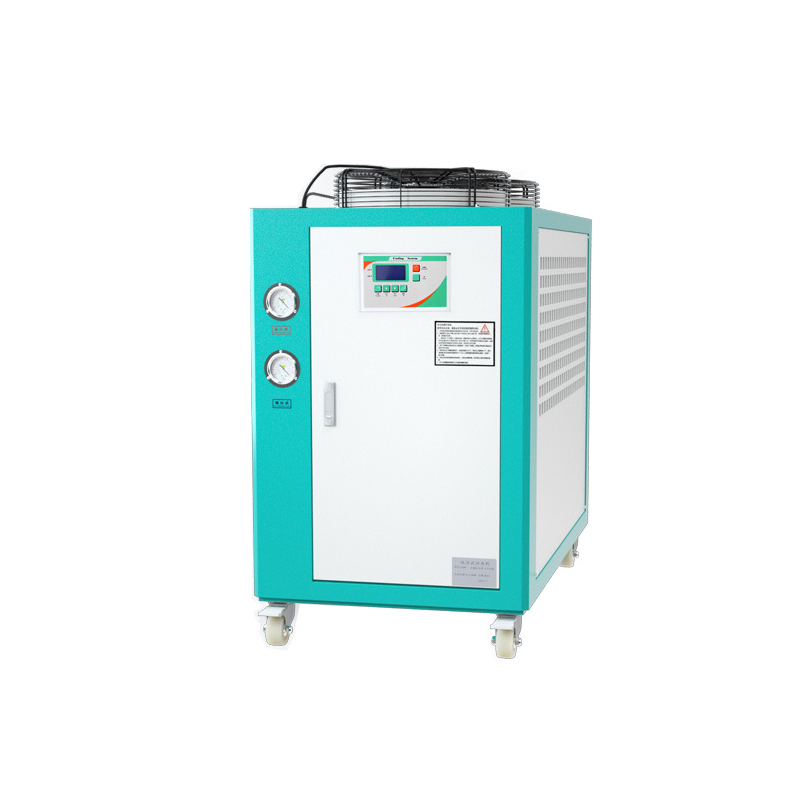

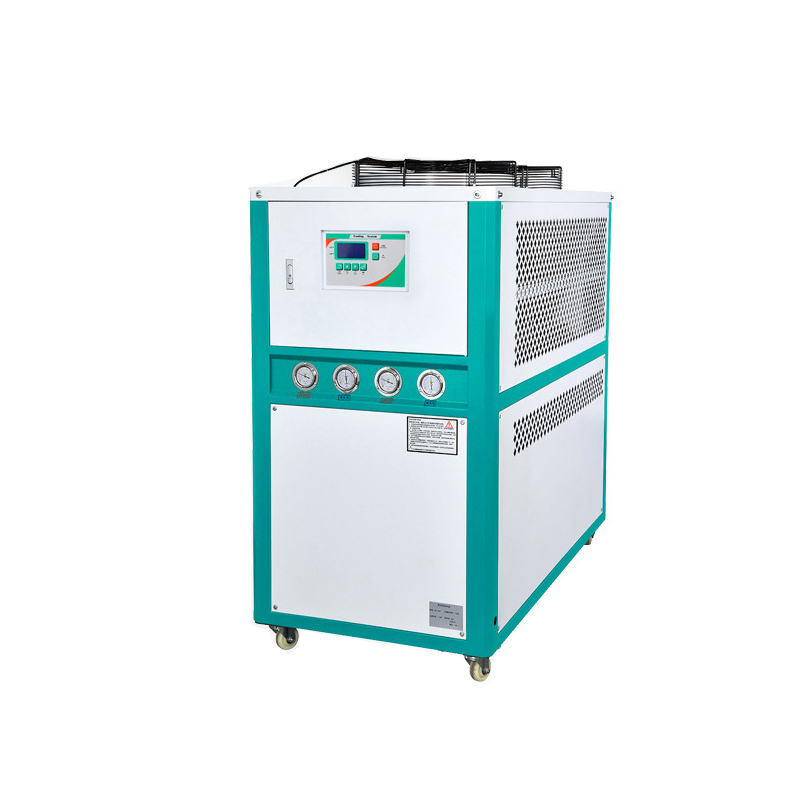

Air-cooled Industrial Chiller 2HP Injection Molding Cooling Machine Manufacturing and Medical Industry Chiller


  • Cooling Capacity: 5000 Kcal/h
  • Refrigerant: R22
  • Lowest Temp Setting: 41°F (5°C)
  • Weight:102KG
  • Size:85*52*80cm

$2,689.00

Compare

Technical Parameters of the Air-cooled Industrial Chiller

Product name Air-cooled Industrial Chiller 2HP
Type 2HP
Power supply 220V/50hz
Refrigeration capacity Kcal/H:5000
KW:5.6
Refrigerant Name:R22
Control mode: Capillary
Compressor Type: Scroll
Power: 1.5KW
Cooling Fan Air volume:2350m³/H
Motor Power:0.15KW
Cooling ambient temperature:≤35ºC
Evaporator Water tank capacity:40L
Port diameter:DN6
Water pump Flow:40L/min
Power:0.37KW
Lift:18M
Machine description Weight:102KG
Size:85*52*80cm
Fan:350mm*1

Brand new heavy duty portable water chillers, virtually compatible with any closed-loop application.
Suitable for but not limited to: Manufacturing, Plastics & Rubber, Metalworking, Welding, Oil & Gas, HVAC, Food & Beverage, Medical, and more!
Industrial strength cooling at an affordable price. It comes fully charged with freon and is ready to use out of the box. No complex installation requirements; just hook up basic inlet & outlet connections. User friendly interface allows for easy operating controls and best suited for general water cooling purposes.

Features

  • High Quality Scroll Compressor
  • Stainless steel plate heat exchanger
  • Charged with R-22 refrigerant
  • Includes pump and water reservoir
  • User friendly temperature controller
  • Alarm detection for abnormal pressures and overloads.

Easy Setup & Operation

  • Connect inlet & outlet water lines and fill up the internal reservoir
  • Turn on water pump and check that the flow returns to the inlet
  • Set desired temperature set points
  • Turn on the compressor and let the chiller handle automatic cooling.
