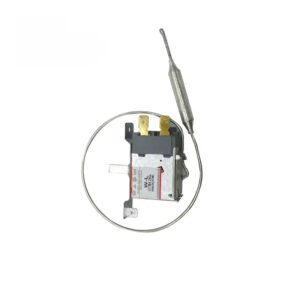

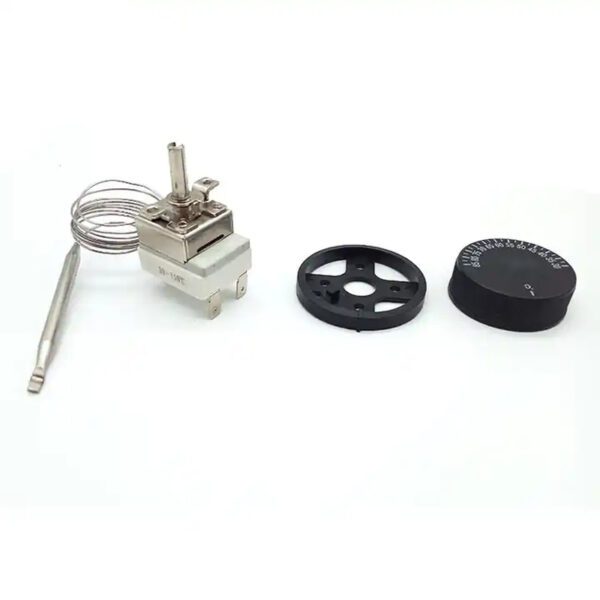

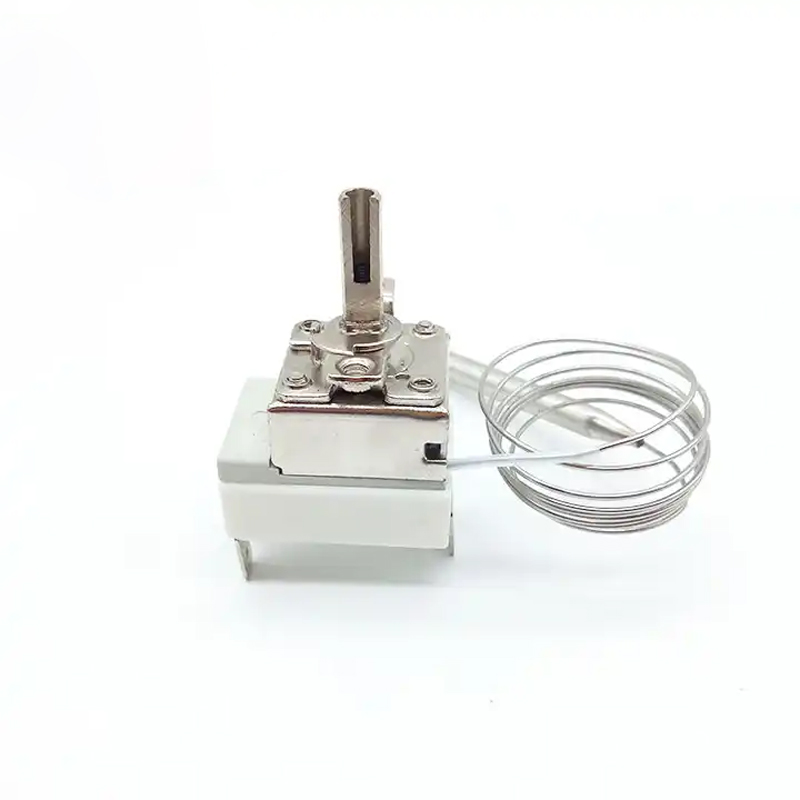

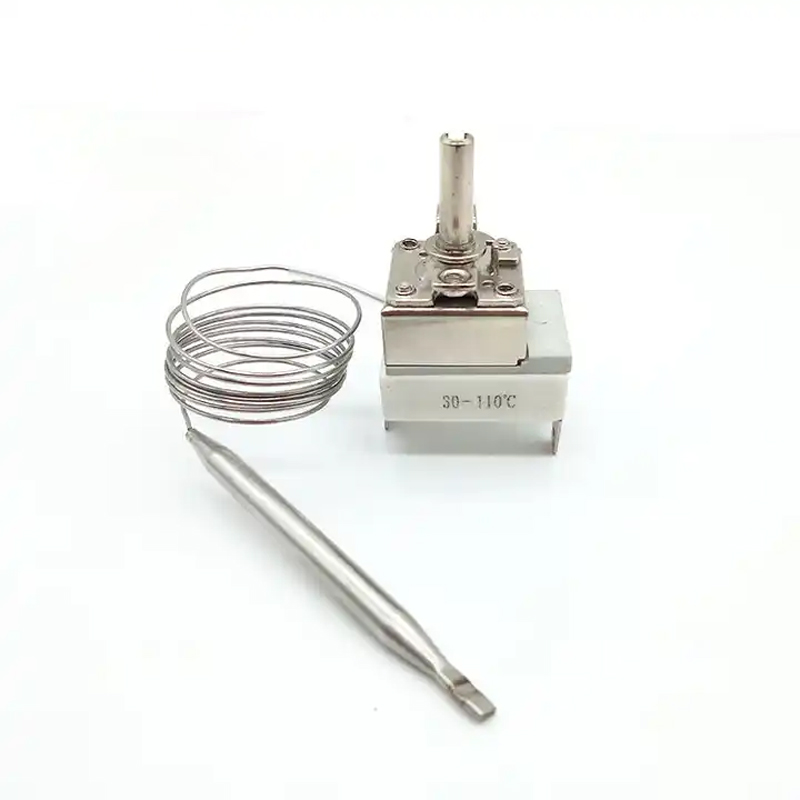

Adjustable Pressure Type Capillary Thermostat Heat Exchangers for Domestic Appliances Tube Capillary Thermostat

Description of constant temperature thermostat
1)Designed temperature range: -35°C ~ 350 °C
2)Capillary Length: 300-3000mm
3)On-off temperature difference: 3°C- 10°C
4)Fitting size:28±0.25mm
5)Rated at 16A/250V 50/60Hz
6)Main body temperature: T90 / T1507)Electric strength: 800v/s between two pin.
8)Insulation resistance≥100MΩ
9)Control type: mechanical temperature controller
10)Contact resistance:≤50MΩ
11)Operating life: ≥ 100,000times
12)CERTIFICATES OF CQC AND CE
13)Widely used for electric water heater, washer, electric oven, fried pan, ice machines, fish ponds, etc.
14)Manufactured on customers’ request
15)Welcome your consults at any time
