Abrasive CNC Waterjet Cutting Machine Production Solution

Abrasive CNC Waterjet Cutting Machine Product Introduction

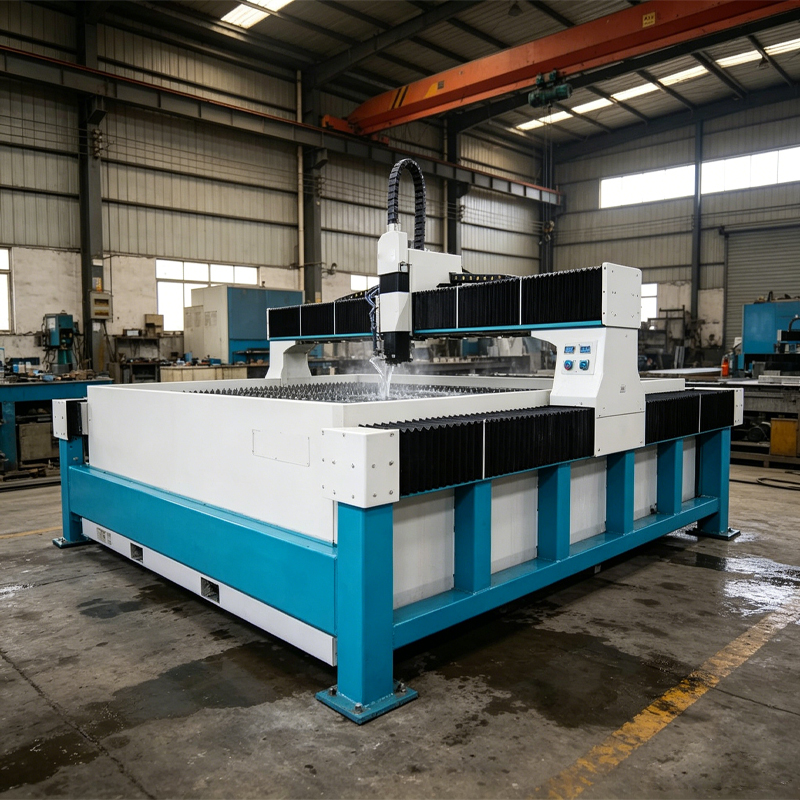

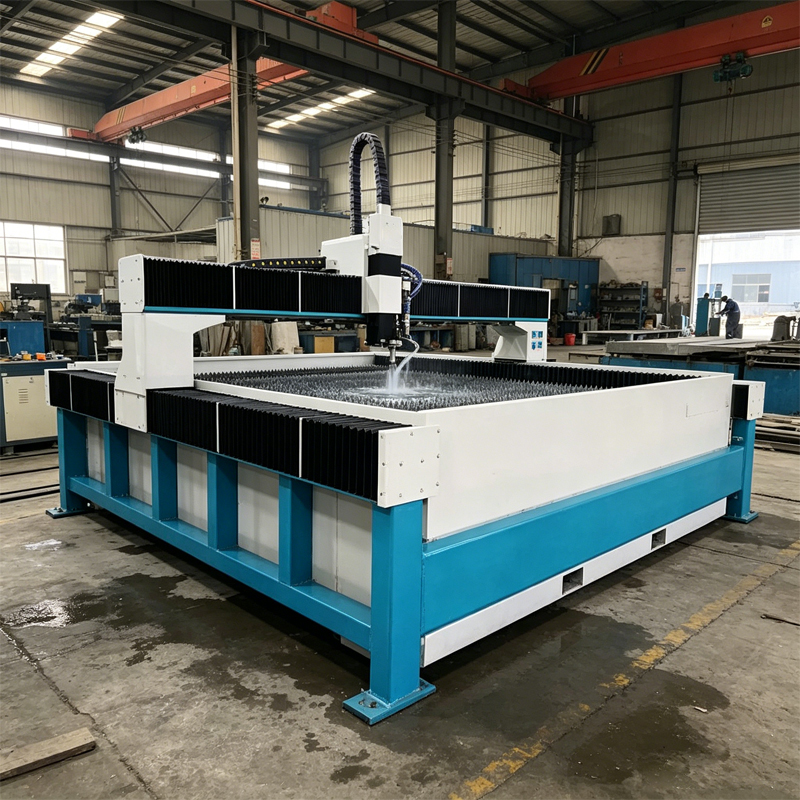

The Abrasive CNC Waterjet Cutting Machine Production Solution is a precision cold-cutting system specially developed for industrial manufacturers requiring high-quality multi-material processing, smooth edge finishing, and flexible production capability. By combining ultra-high-pressure waterjet technology with abrasive sand cutting systems and intelligent CNC automation control, the equipment can process metals, stone, ceramic, glass, composite panels, and engineering materials without thermal deformation, material cracking, or surface burning. This makes the machine highly suitable for industries requiring strict cutting quality and dimensional accuracy.

Unlike thermal cutting equipment such as plasma cutting or laser cutting systems, abrasive waterjet technology uses cold cutting methods that preserve original material properties and improve finished product quality. The machine is widely used in architectural decoration factories, aerospace component manufacturing, precision engineering workshops, industrial fabrication plants, stone processing factories, and customized metal fabrication industries. With strong material adaptability, intelligent nesting capability, and stable industrial operation performance, this abrasive CNC waterjet solution helps manufacturers improve product quality, reduce material waste, and optimize large-scale industrial production efficiency.

Industrial Processing Challenges

• Heat-based cutting equipment can damage material surfaces and affect finished product quality

• Thick materials are difficult to process accurately using traditional cutting technologies

• Manufacturers handling different materials often require multiple processing machines

• Complex contour fabrication increases programming difficulty and production costs

• Poor cutting consistency affects industrial production standards and customer requirements

• Conventional processing equipment generates excessive sparks, smoke, and thermal pollution

• Expensive industrial materials require higher cutting precision and lower waste rates

• Large-format production environments require stable and continuous cutting capability

Smart Production Solution

• Abrasive waterjet technology provides precise cold cutting without heat-affected zones

• Intelligent CNC systems support automatic contour optimization and precision path generation

• Multi-material processing capability reduces equipment investment and improves production flexibility

• Reinforced machine structures improve stability during large-scale industrial cutting operations

• Automatic abrasive feeding systems improve cutting efficiency and reduce manual workload

• High-pressure cutting capability supports thick material processing with smooth edge quality

• Intelligent nesting systems maximize material utilization and reduce production waste

• Advanced automation improves manufacturing consistency and lowers labor dependency

System Configuration

The Abrasive CNC Waterjet Cutting Machine Production Solution mainly includes:

• Ultra-high-pressure waterjet pump unit
• Abrasive sand feeding system
• CNC waterjet cutting platform
• Precision cutting head assembly
• Intelligent CNC control cabinet
• Servo motion control system
• Heavy-duty guide rail transmission system
• Automatic lubrication device
• Industrial water circulation system
• CAD/CAM programming software
• Touch screen operation interface

Optional configurations:
• Bevel cutting head
• Dual cutting head system
• Large-format working platform
• Automatic abrasive recycling system
• Remote monitoring module

Production Workflow

• Import CAD drawings into the CNC programming software for automatic nesting and cutting path optimization

• Place metal sheets, stone slabs, ceramic plates, glass panels, or industrial materials onto the cutting table

• Generate ultra-high-pressure water flow through the industrial intensifier pump system

• Mix abrasive garnet sand with high-pressure water to improve cutting power and processing capability

• Perform precision contour cutting, hole cutting, bevel cutting, slot cutting, and customized shape fabrication through the CNC cutting head

• Output finished products with smooth edges, accurate dimensions, and excellent surface quality without secondary thermal processing

Core Advantages

• Cold cutting technology prevents material burning, deformation, and thermal cracking

• High-pressure abrasive cutting systems support thick and hard material processing capability

• Excellent edge finishing quality reduces secondary polishing and grinding costs

• Intelligent CNC automation improves industrial production efficiency and consistency

• Precision servo motion systems ensure smooth contour processing and accurate positioning

• Multi-material compatibility improves manufacturing flexibility and production capacity

• Stable industrial configurations support continuous heavy-duty factory operation

• Environmentally friendly processing reduces smoke, sparks, and workshop pollution

• Automatic nesting software improves expensive raw material utilization efficiency

• Large-format processing capability supports industrial-scale fabrication projects

Technical Specifications

Item	Specification
Product Name	Abrasive CNC Waterjet Cutting Machine Production Solution
Cutting Technology	Abrasive Waterjet Cold Cutting
CNC Controller	Industrial Intelligent CNC System
Pump Pressure	420MPa / 450MPa / 500MPa
Pump Power	37KW / 50HP / 75HP / 100HP
Cutting Accuracy	±0.1mm
Repeat Position Accuracy	±0.05mm
Maximum Cutting Speed	0–18000mm/min
Working Area Options	1500×3000mm / 2000×4000mm / Customizable
Motion System	Servo Motor Drive
Transmission Structure	Ball Screw + Linear Guide Rail
Abrasive Feeding Method	Automatic Garnet Feeding
Cooling System	Industrial Water Cooling
Voltage	220V / 380V / 415V
Supported Materials	Metal / Stone / Glass / Ceramic / Composite
Maximum Cutting Thickness	150mm
File Format Support	DXF / DWG / CAD
Control Interface	Industrial Touch Screen
Operation Mode	Fully Automatic CNC

Production Capacity

Production efficiency depends on:
• Material type
• Material thickness
• Pump pressure configuration
• Cutting complexity
• Production speed settings

Typical industrial output:
• Stainless steel processing: 200–900㎡/day
• Stone slab cutting: 150–700㎡/day
• Ceramic and glass processing: 300–1200㎡/day
• Customized industrial parts: 500–5000 pcs/day

Main Features

• Abrasive cold cutting technology
• Intelligent CNC automation system
• High-pressure industrial cutting capability
• Precision contour processing
• Multi-material fabrication support
• Automatic abrasive feeding system
• Heavy-duty industrial structure
• CAD/CAM programming software
• Large-format processing capability
• Continuous industrial production support

Engineering Advantages

• Reinforced machine frames improve rigidity and stability during high-pressure cutting operations

• Ultra-high-pressure intensifier systems improve cutting power and industrial production efficiency

• Precision servo drive systems improve positioning accuracy and contour smoothness

• Intelligent CNC software simplifies operation and improves factory production management

• Automatic abrasive systems improve cutting consistency and reduce labor intensity

• Modular industrial design simplifies maintenance and lowers operational downtime

• Excellent cold-cutting performance preserves material integrity and improves finished product quality

• High compatibility with different industrial materials improves factory processing flexibility

• Large-format platform designs support oversized industrial fabrication projects

• Environmentally friendly waterjet processing improves workshop safety and production environments

Application Scenarios

• Stainless steel decorative panel cutting
• Thick aluminum alloy processing
• Marble and granite fabrication
• Architectural glass contour cutting
• Ceramic tile precision processing
• Aerospace component manufacturing
• Industrial gasket fabrication
• Composite material processing
• Heavy machinery component cutting
• Customized engineering part production

Industry Applications

• Metal fabrication industry
• Stone processing industry
• Architectural decoration industry
• Aerospace manufacturing industry
• Automotive component industry
• Industrial engineering industry
• Ceramic processing industry
• Glass manufacturing industry
• Composite material fabrication industry
• Intelligent industrial manufacturing industry

FAQ

1. What is the advantage of abrasive waterjet cutting?

Abrasive waterjet cutting uses cold cutting technology without thermal deformation, material burning, or edge discoloration.

2. Which materials can the machine process?

The machine can process metal, stone, ceramic, glass, rubber, foam, composite materials, and industrial engineering materials.

3. Can the machine process thick materials?

Yes. The ultra-high-pressure abrasive cutting system supports thick material processing with stable cutting quality.

4. Does the machine support complex contour cutting?

Yes. The CNC system supports precision contour cutting and customized shape processing.

5. Is the cutting edge smooth?

Yes. Abrasive waterjet cutting provides smooth edge quality and reduces secondary processing requirements.

6. Does the machine support automatic programming?

Yes. CAD drawings can be imported for automatic nesting and intelligent cutting path generation.

7. Is the machine suitable for industrial production?

Yes. The system is designed for continuous heavy-duty industrial manufacturing applications.

8. Can the working size be customized?

Yes. Customized working areas and machine configurations are available according to production requirements.

9. Is technical training provided?

Yes. Installation guidance, operation training, and technical support services are provided.

10. Is after-sales support available?

Yes. Remote technical assistance and spare parts support are available for long-term industrial operation.
