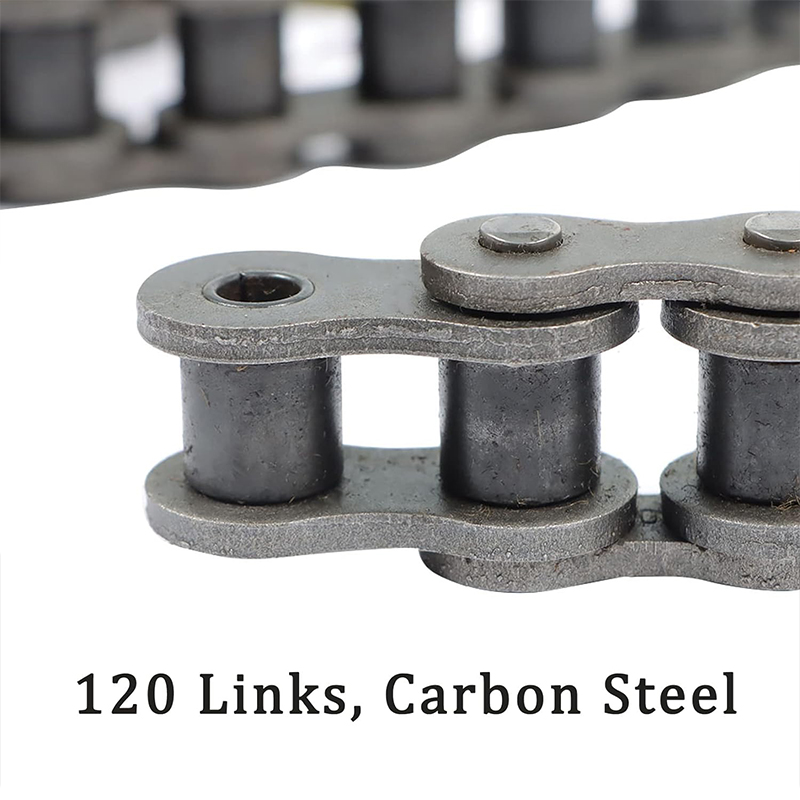

Technical Parameters of the Heavy Duty Roller Chain
Pitch (P) | 1.0 inch (25.400 mm) |
Weight (q) | 2.083 lb/ft (3.1 kg/m) |
Average Tensile Strenght (Qo) | 71.4 kN |
Pin Lenght (L max) | 1.425 inch (36.20 mm) |
Pin Lenght (Lc max) | 1.484 inch (37.70 mm) |
Pin Diameter (d2 max) | 0.311 inch (7.92 mm) |
Plate Thickness (T max) | 0.157 inch (4.00 mm) |
Roller Diameter (d1 max) | 0.625 inch (15.88 mm) |
Inner Plate Depth (h2 max) | 0.944 inch (24.00 mm) |
Ultimate Tensile Strenght (Q min) | 56.70/12886 kN/LB |
Width Between Inner Plates (b1 min) | 0.620 inch (15.75 mm) |
Package Includes | 1 × Connecting Links+1 × 80H Heavy Duty Roller Chain |
