8 m³/h Z Type Elevator Conveyor for Vertical Packaging Line

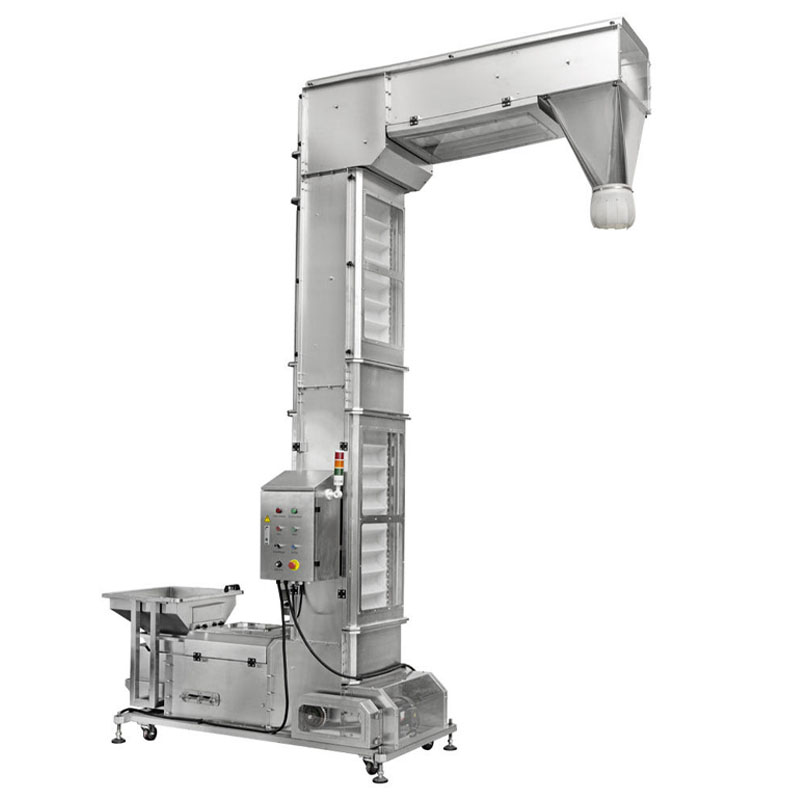

Z Type Elevator Conveyor Product Introduction

The Z Type Elevator Conveyor is a vertical and horizontal conveying system designed for compact production layouts, capable of elevating bulk and granular materials to multiple discharge points. Constructed with food-grade PP buckets and durable carbon steel or stainless steel frames, it prevents material leakage, contamination, and damage. This conveyor solves challenges in automated production lines, enabling smooth material transfer, multi-point feeding, and precise discharge. Widely used by food processing factories, packaging lines, chemical plants, and pet food manufacturers, it supports hygienic, efficient, and continuous operation in industrial and food-grade applications.

Working principle

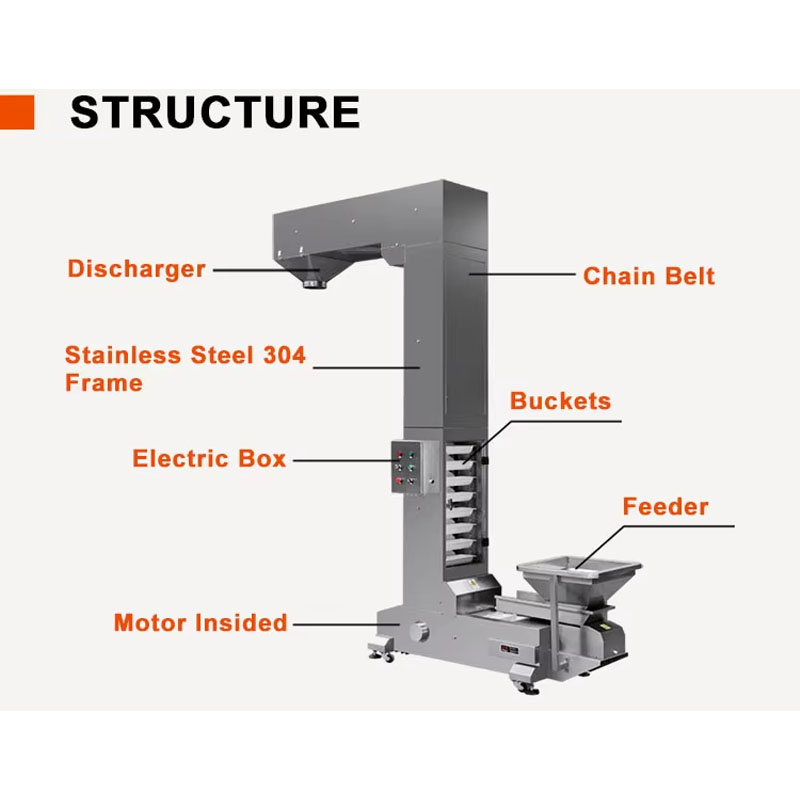

The Z Type Elevator Conveyor operates using a chain-driven bucket system. Material enters the horizontal feeder hopper, then moves into the vertical lifting section. Buckets attached to the chain lift the material to the top, where it rotates around the upper wheel and discharges through the outlet. Adjustable chain tension, vibration feeders, and smooth nylon gears ensure uniform feeding, low noise, and minimal material damage, while the fully enclosed structure prevents contamination or spillage.

Product Parameter Table

Body Material	Carbon steel / SUS304
Hopper Volume	4.0 L
Hopper Surface	Dimple / plain
Power Supply	Single/ 3 phrase 220 V/380 V,50 Hz/60 Hz,0.4 kW/0.75 kW/1.5 kW/2.2 kW
Conveying Capacity	8 m³/h
Machine Dimension	Per customer’s requirement
Vibrating Feeder	Detached / independent vibrating feeder
Feeder Volume	200 L
Discharge Funnel	Single / double / multiple

Main Features

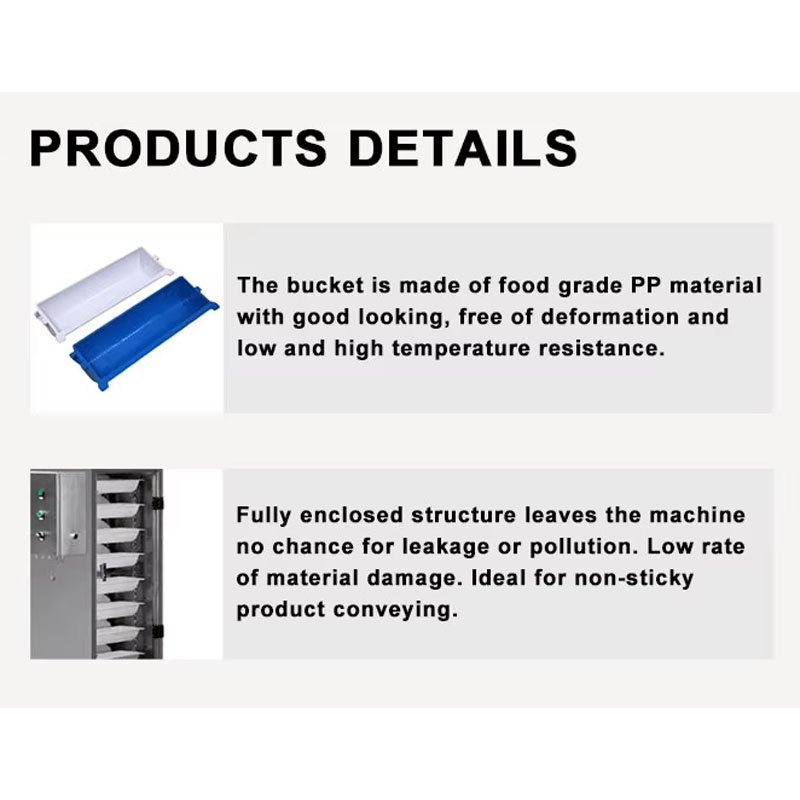

• Food-grade PP buckets ensure hygienic handling and resistance to high and low temperatures.
• Fully enclosed structure prevents material leakage and minimizes contamination risks.
• Compact Z-type design saves factory floor space while enabling multi-point discharge.
• Adjustable conveyor speed allows precise material transfer for automated production lines.

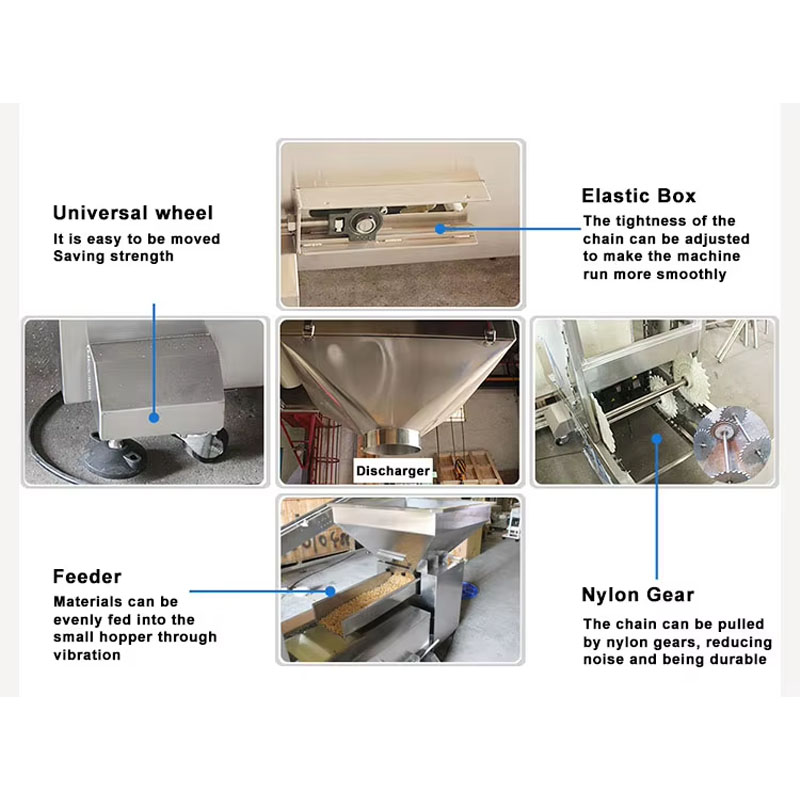

• Durable nylon gear chain reduces noise and ensures smooth, long-term operation.
• Easy disassembly and maintenance enable convenient cleaning and efficient workflow.

Application Scenarios

• Automated food production lines for potato chips, candy, puffed food, and dried fruit
• Grain and cereal handling in food processing and storage facilities
• Pet food factories requiring hygienic vertical lifting and discharge
• Packaging systems with weighing machines and color sorters for multi-point feeding
• Chemical or hardware production requiring non-sticky material transfer
• Multi-point discharge setups for small or large automated industrial plants

FAQ – Z Type Elevator Conveyor

Q1: What materials can this Z-type elevator handle?

A1: It is suitable for potato chips, grains, dried food, candy, pet food, chemicals, and non-sticky materials.

Q2: What materials are the buckets and frame made of?

A2: Buckets are food-grade PP, while the frame can be carbon steel or stainless steel, durable and hygienic.

Q3: Can the conveyor speed be adjusted?

A3: Yes, the conveyor features adjustable speed control for precise material handling.

Q4: Is the elevator suitable for automated production lines?

A4: Yes, it works with packaging machines, weighing systems, and multi-point discharge setups.

Q5: How does the machine prevent material damage?

A5: Smooth bucket movement, fully enclosed structure, and vibration feeding minimize breakage and loss.
