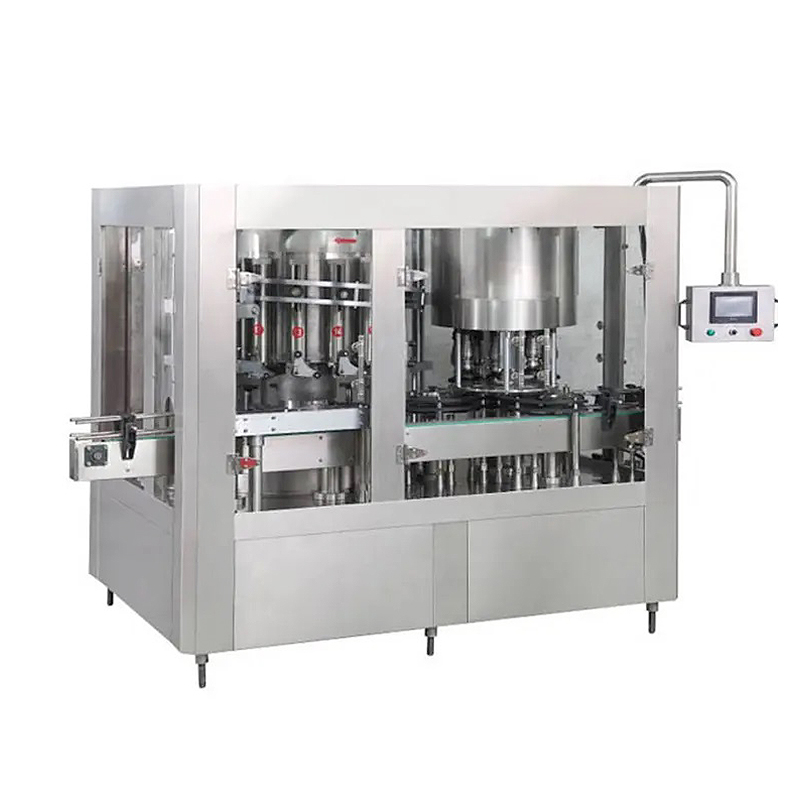

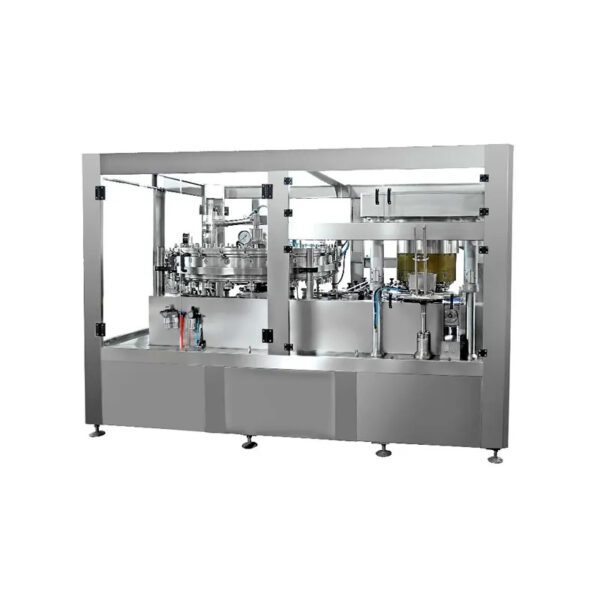

8-8-3 Automatic Can Filling Machine Carbonated Beverage beer Coke Can Filling Packing Line Rinsing+Filling+Capping System

Add to wishlist
Compare
  • Model: 8-8-3
  • Capacity(CPH): 2000-2500
  • Power(KW): 2.42
  • Dimension(mm): 2360*1770*2700
  • Weight(KG): 2600

NOTE: Prices may vary by product model and material.

$32,500.00

Compare

Main Structure of Can Filling Machine:

  • Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
  • Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
  • Capping system: Combined with capper, cap sorter and cap falling track.
  • Driving system: Combined with main motor and gears.
  • Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
  • Electrical control system: this part is frequency inverted, PLC controlled and touch screen operated.
Model Capacity(CPH) Power(KW) Dimension(mm) Weight(KG)
8-8-3 2000-2500 2.42 2360*1770*2700 2600
12-12-4 3000-3500 3.12 2760*2060*2700 3500
18-18-6 5000-6000 3.92 2800*2230*2700 4800
24-24-8 8000-10000 3.92 3550*2650*2700 6500
32-32-10 12000-14000 5.87 4700*3320*2700 10000
40-40-12 16000-17000 7.87 5900*4150*2700 12000
