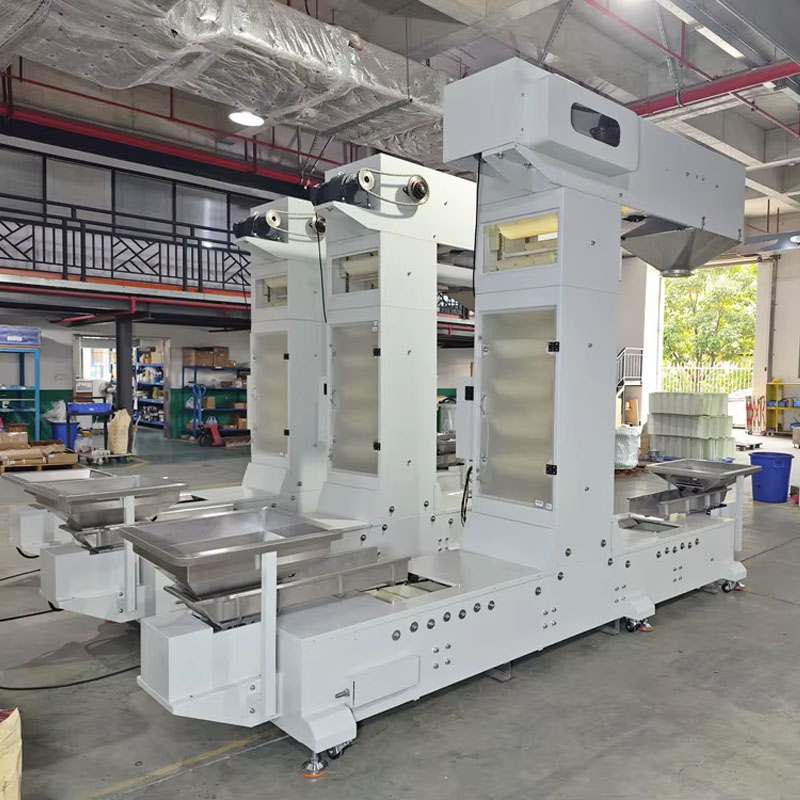

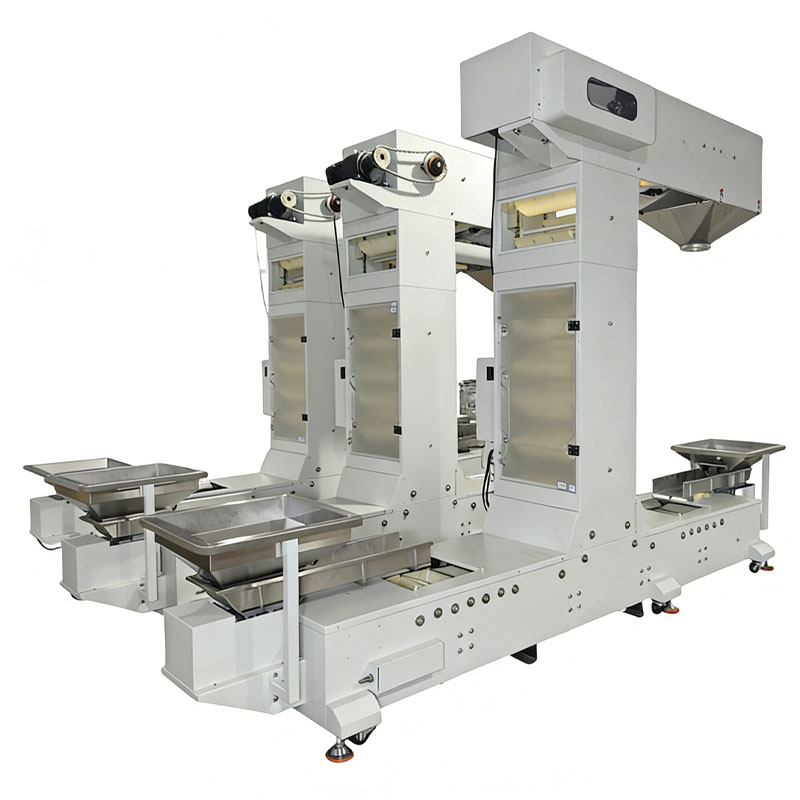

8.5-12 m³/h Double Inlet Bucket Elevator for Restaurant Use

Product introduction of Double Inlet Bucket Elevator

The double inlet bucket elevator is a vertical conveying system engineered to lift and transfer free-flowing products from multiple inlets to single or multiple discharge points. Its food-grade reinforced polypropylene buckets withstand temperatures from -10°F to 120°F, ensuring safe handling of sensitive materials. The system provides controlled feeding at multiple locations and can interface seamlessly with various feeding devices. Equipped with easy-to-remove inspection covers, automatic chain tensioning, and overload protection, the elevator ensures reliable operation and long service life. Optional stainless steel or carbon steel frames make it suitable for food, chemical, pharmaceutical, and agricultural industries requiring hygienic, efficient, and durable vertical transport solutions.

Working Principle

The double inlet bucket elevator uses a continuous belt or chain with mounted buckets to lift materials from multiple inlets. The geared motor drives the system, ensuring smooth and stable vertical transport. Materials are gently lifted to the required discharge height, where they are released at single or multiple points depending on process requirements. Automatic chain tensioning maintains optimal performance, and overload protection prevents mechanical failure.

Product Parameter Table

Bucket volume	6.5 L
Numbers of discharge	One or Multi-discharge
Machine structure	Stainless steel or Painted steel
Production capacity	8.5-12 m/h
Machine packed dimension	3000×1550×1200 mm
Voltage	Three phase 380 V or single phase 220 V,50 Hz/60 Hz
Power supply	2 kW

Main Features

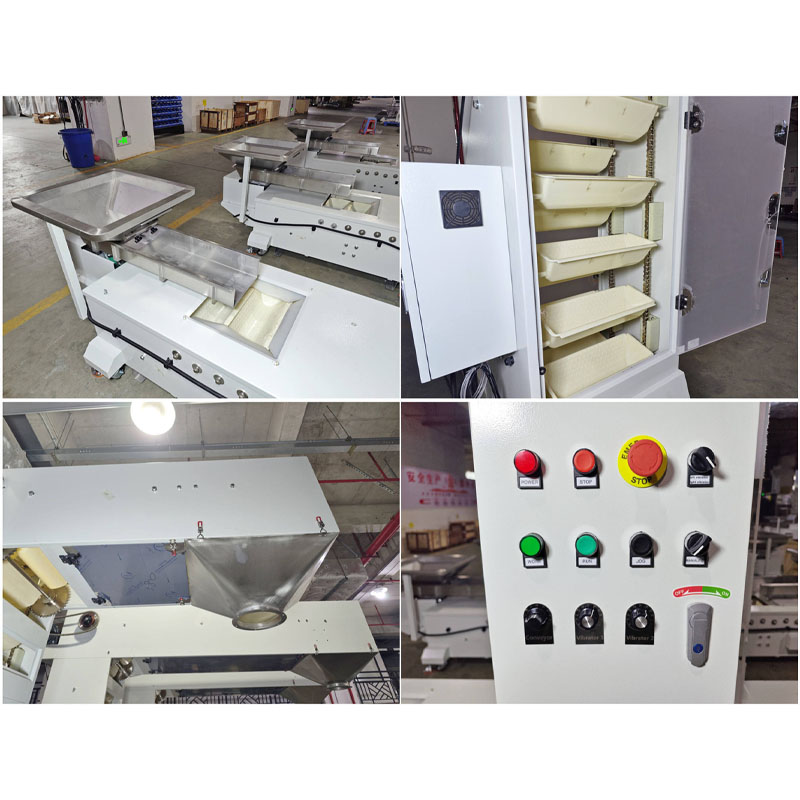

• Food-grade polypropylene buckets molded in one piece ensure safe handling of sensitive materials and reduce contamination risk.
• Quick-release bucket mechanism allows fast installation or removal, simplifying maintenance and cleaning processes.
• Multiple inlets and discharges enable precise feeding control, accommodating complex production and packaging systems.
• Geared reducer motor provides stable performance, long service life, and easy maintenance for continuous operation.
• Automatic chain tensioning and overload protection prevent downtime and ensure smooth, reliable vertical transport.
• Optional stainless steel or carbon steel frames allow customization for specific hygienic or industrial requirements.

Application Scenarios

• Food industry: snacks, frozen foods, vegetables, fruits, confectionery, and granules.
• Pharmaceutical and chemical industries: powders, granules, and small components requiring hygienic handling.
• Agricultural processing: grains, seeds, and feed materials in automated production lines.
• Packaging systems: vertical transfer of bulk products to different packaging or processing stations.
• Multi-discharge setups: integration into complex logistics systems for continuous, controlled product flow.

FAQ

Q1: What types of materials can this elevator handle?

A1: Free-flowing food, pharmaceuticals, chemicals, granules, frozen foods, and agricultural products.

Q2: Can the elevator be used with multiple discharge points?

A2: Yes, single, multiple, or anywhere in-circuit discharges are available.

Q3: What maintenance is required?

A3: Quick-release buckets and easy-access inspection covers allow fast cleaning, routine lubrication, and chain tension checks.

Q4: What materials are available for construction?

A4: Standard food-grade polypropylene buckets, with frame options in stainless steel or carbon steel.

Q5: What is the maximum temperature the buckets can handle?

A5: The reinforced polypropylene buckets can handle temperatures from -10°F to 120°F.
