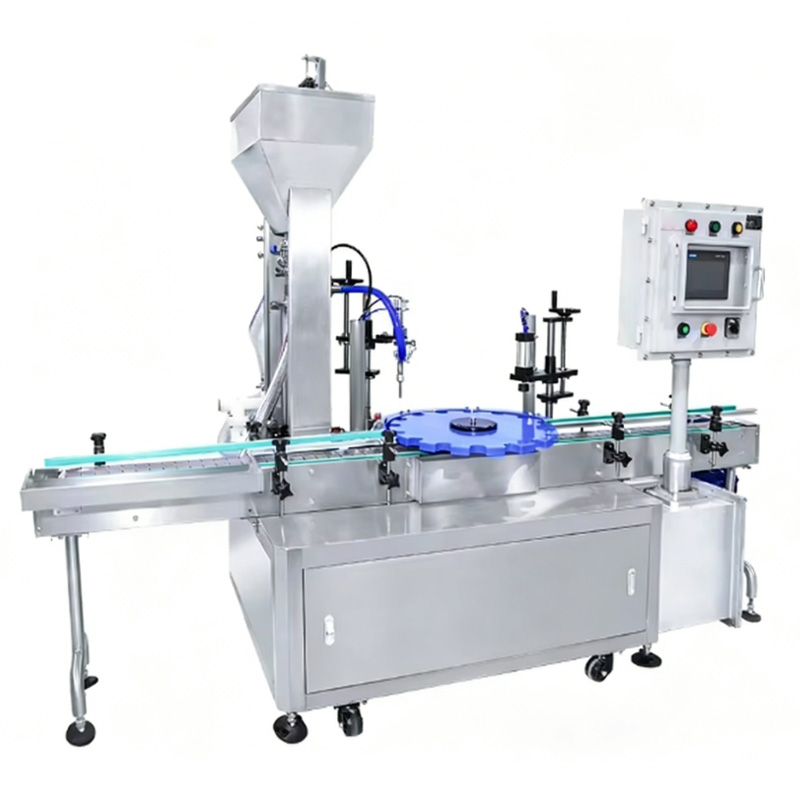

8–15 Bottles/min PLC-Controlled Paint Bottle Screw Cap Machine

Bottle Screw Cap Machine Product Introduction

The 8–15 bottles/min PLC-controlled paint bottle screw cap machine is a medium-speed, high-precision capping solution for paint, pigment, and chemical liquid bottles. It operates continuously with a conveyor feeding system, while the electric screw capping head ensures consistent torque and reliable sealing.

PLC control with a touchscreen interface allows real-time monitoring, fast adjustment of torque and speed, and supports multiple bottle and cap sizes. Compatible with plastic and glass bottles, this machine is ideal for small to medium batch production in paint factories, pigment manufacturing, and chemical laboratories. Its stainless steel frame and modular design make maintenance easy and ensure long-term operation.

Working Principle：

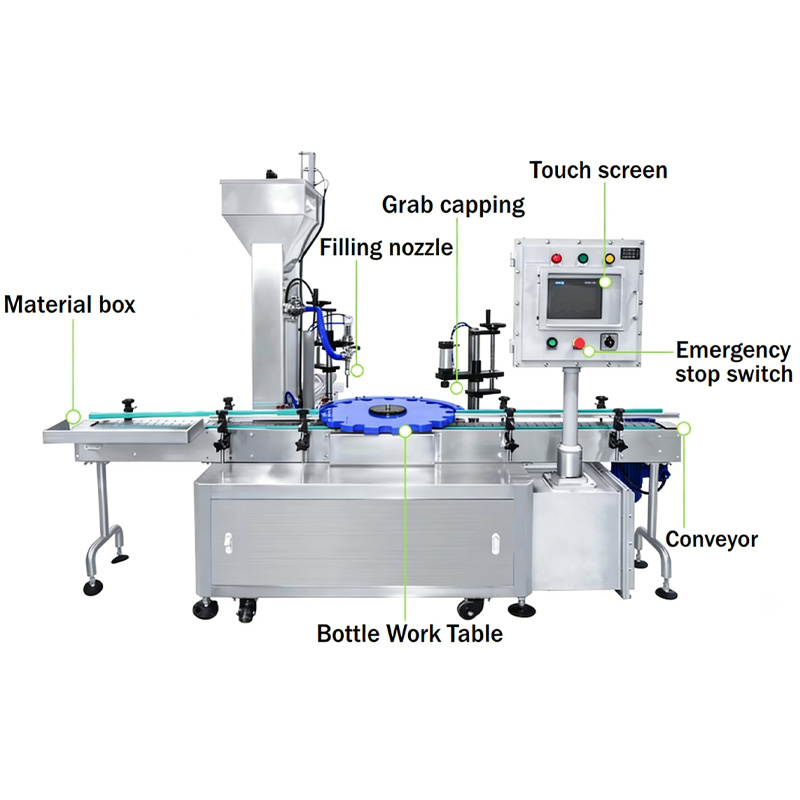

Bottles are conveyed into the capping station where the PLC-controlled electric screw capping head aligns with each bottle. The machine applies adjustable torque to tighten caps consistently. Sensors monitor bottle position and torque to prevent over-tightening or leakage. After capping, bottles continue on the conveyor to the next stage of production.

Technical Specifications：

Production Capacity	8–15 Bottles/min
Applicable Bottle Type	Plastic, Glass, Round & Square
Applicable Cap Type	Plastic Screw Cap, Metal Lid
Cap Diameter Range	18–55 mm
Bottle Height Range	70–210 mm
Capping Method	Electric Screw Capping
Control System	PLC With Touchscreen
Motor Power	1.0 kW
Air Pressure	0.4–0.7 MPa
Machine Weight	350 kg

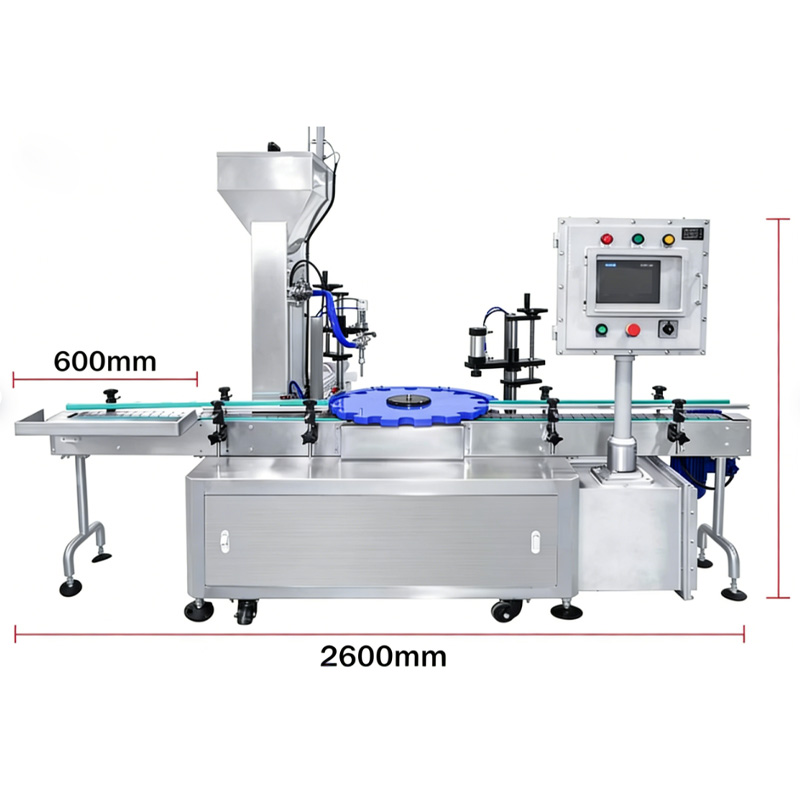

Machine Dimension	2600× 850 × 1550 mm

Main features：

• Medium-speed precision capping – 8–15 bottles/min with consistent torque and leak-proof sealing.
• PLC touchscreen control – Real-time monitoring, fast torque and speed adjustments.
• Wide bottle compatibility – Supports plastic and glass bottles, multiple cap types.
• Stainless steel industrial frame – Ensures durability and long-term operation.
• Easy maintenance – Modular design for quick cleaning, replacement, and minimal downtime.

Application Scenarios：

• Paint production – Small to medium bottles for acrylic, oil, and watercolor paints.
• Pigment and dye packaging – Bottles containing powdered or liquid pigments.
• Chemical liquid packaging – Laboratory or industrial chemical bottles.
• OEM/Contract packaging – Multiple bottle sizes and cap types for custom labels.
• Medium-speed production lines – Ideal for factories, workshops, and R&D labs requiring precise automated capping.

FAQ

Q1: What bottle types are supported?
A: Plastic and glass bottles of various shapes and sizes.

Q2: Can the torque be adjusted?
A: Yes, torque is adjustable via the PLC touchscreen for precise sealing.

Q3: Is this machine suitable for chemical liquids?
A: Yes, compatible with paint, pigment, and other chemical liquids.

Q4: Does it handle both plastic and metal screw caps?
A: Yes, minor adjustments allow both cap types.

Q5: What industries commonly use this machine?
A: Paint manufacturing, pigment packaging, chemical laboratories, and OEM production.
