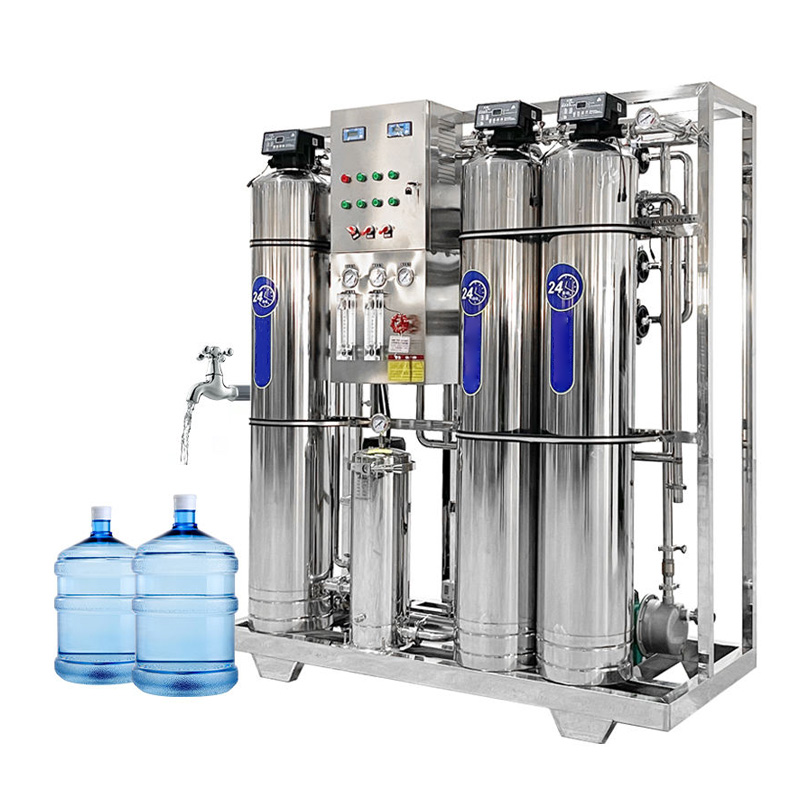

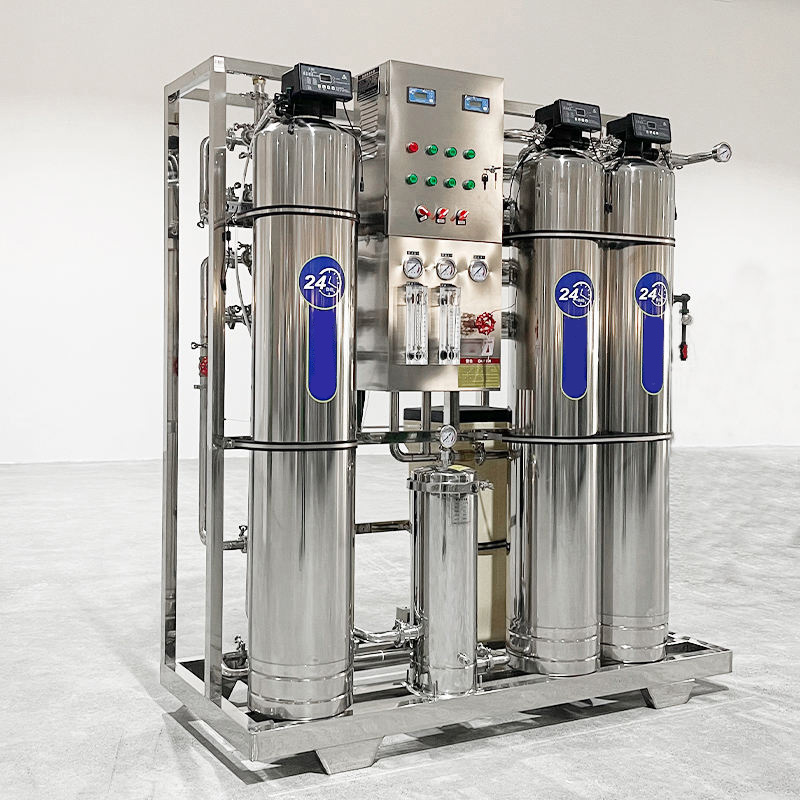

500LPH Reverse Osmosis System Water Filter with Auto Control
This 500LPH reverse osmosis system is designed for water purification and filtration applications. It uses advanced RO membrane technology to remove dissolved salts, bacteria, and impurities from raw water. Equipped with an automatic control system, high-pressure pump, and stainless steel membrane housing, it ensures stable performance and reliable purified water output.
Compare
Product Introduction for 500LPH Reverse Osmosis System
The 500LPH reverse osmosis system is a compact water treatment unit designed for small-scale industrial and commercial water purification applications. With a capacity of 500 liters per hour, it features a durable structure combining steel and stainless steel components for reliable long-term use.
This system uses reverse osmosis membrane technology to remove dissolved salts, bacteria, and impurities from water, improving water quality and safety. It can be integrated with pre-filtration and sterilization systems for enhanced performance.
It is widely used in drinking water treatment, food processing, and commercial water purification systems requiring stable and continuous output.
Technical Specifications：
|
Item
|
Parameter
|
|---|---|
|
Product Name
|
Stainless Steel Three-Tank
|
|
Type
|
Pure Water Treatment System
|
|
Purification Rate
|
97%-99%
|
|
Keyword
|
Complete Reverse Osmosis System
|
|
Processing Technology
|
Reverse Osmosis System
|
|
Productivity
|
500 liters/hour
|
|
Core Component
|
Pump
|
|
Power
|
800W, 1 kW, 2 kW
|
|
Voltage
|
220V, 380V
|
|
Weight
|
400 KG
|
|
Dimensions (L×W×H)
|
1.6m×0.65m×1.75m
|
Main features：
• Reverse osmosis membrane technology effectively removes dissolved salts, bacteria, and impurities

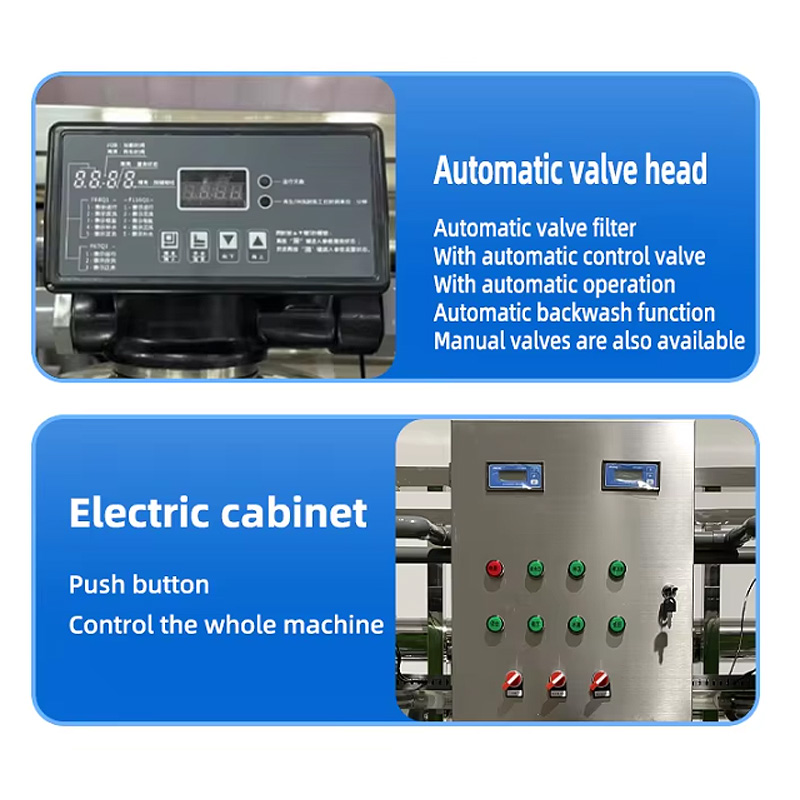

• Automatic control valve system ensures stable operation and reduces manual intervention

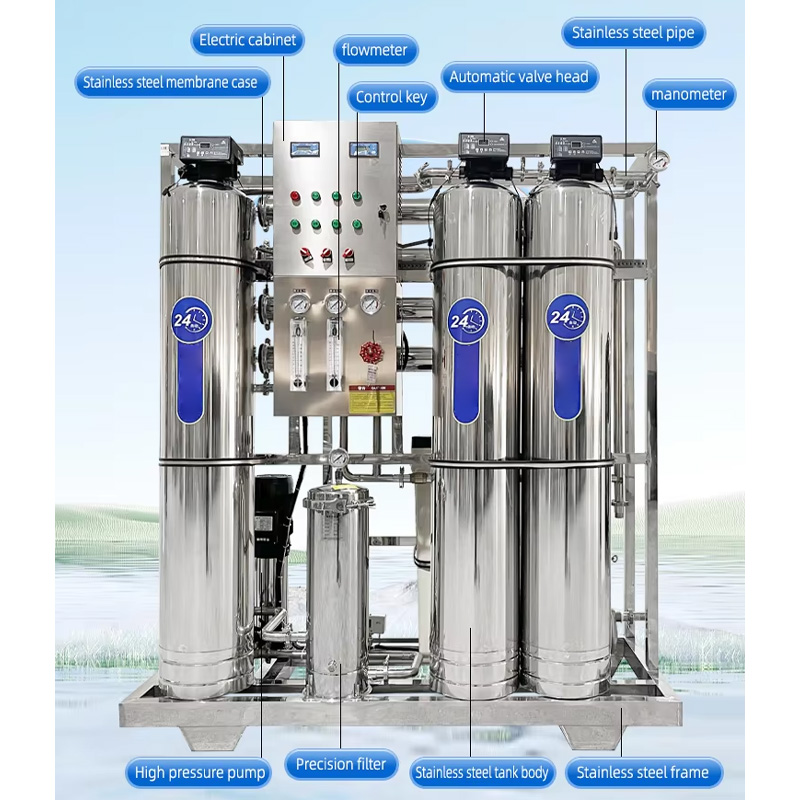

• Equipped with high-pressure pump for consistent membrane filtration performance

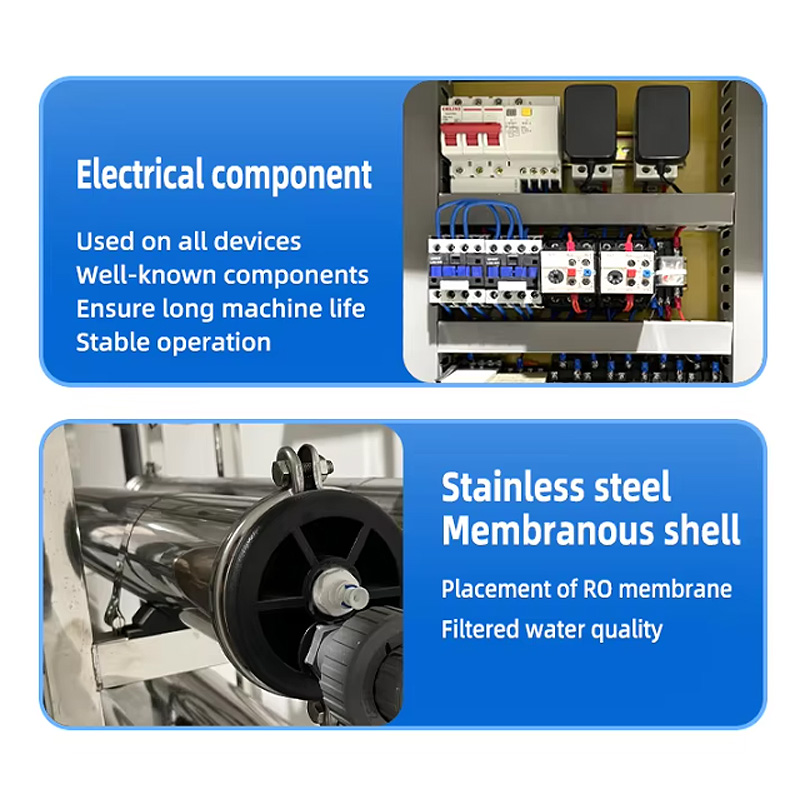

• Stainless steel membrane housing provides durability and corrosion resistance
• Integrated electrical control cabinet with push button operation for easy system management
Working principle：
Raw water first passes through pre-filtration units to remove suspended solids and impurities. Then, a high-pressure pump increases water pressure and forces it through the reverse osmosis membrane.
The semi-permeable RO membrane allows water molecules to pass while rejecting dissolved salts, bacteria, and other contaminants. The purified water is collected for use, while concentrated impurities are discharged as wastewater. Optional ultraviolet sterilization further improves water quality by eliminating microorganisms.
Application scenarios：
• Commercial water purification equipment
• Laboratory purified water supply systems
• Restaurant and kitchen water treatment
• Groundwater and tap water purification applications
• Pre-treatment systems for further high-purity water processing
FAQ
Q1: What is the hourly water output of this RO filter?
A: It can produce 500 liters of filtered clean water per hour.
Q2: Does this RO system have automatic control function?
A: Yes, it is equipped with full auto control and auto cleaning.
Q3: Is this equipment a reverse osmosis water filter?
A: Yes, it is a professional RO water filtration and purification system.
Q4: Can this auto RO filter remove harmful water impurities?
A: Yes, it filters bacteria, heavy metals, ions and suspended solids effectively.
Q5: Is this 500LPH RO system suitable for commercial use?
A: Yes, it fits small commercial and light industrial water purification scenes.
Contact us to get your quotation now.
Get in touch with our engineering team.
Download full specification PDF.
