500L Industrial CIP Cleaning System for Beverage Plants

Compare

The 500L industrial CIP cleaning system is designed for automated cleaning of beverage processing equipment. It provides efficient circulation of cleaning solutions to tanks, pipes, and valves, ensuring hygiene and reducing manual labor. The system includes pumps, sensors, heaters, and a PLC control for precise operation, suitable for breweries, juice production, and dairy plants.

Compare

Description

500L Industrial CIP Cleaning System Product Introduction

The 500L industrial CIP cleaning system is a fully automated solution for beverage plants, providing consistent and thorough cleaning of tanks, pipelines, valves, and fittings. The system circulates cleaning agents such as caustic soda, acids, or sanitizers through high-efficiency pumps and maintains precise temperature using integrated heaters. PLC control allows automated sequences, monitoring of flow, pressure, and temperature, reducing cleaning time while improving hygiene standards. Designed for breweries, juice factories, dairy production, and soft drink facilities, the system ensures compliance with food safety regulations and minimizes downtime. Its modular design allows easy installation and scalability for different plant layouts.

Working Principle：

Technical Specifications：

Processing Type	Clean-In-Place (CIP)
Application	Food, Beverage, Dairy, Brewery, Pharmaceutical, Cosmetic
Capacity	500 L (50L – 20000L Customizable)
Material	SS304 / SS316L Stainless Steel
Control System	PLC Automatic Control
Operation Type	Automatic / Semi-Automatic / Manual
Cleaning Method	Acid Cleaning, Alkali Cleaning, Hot Water Cleaning
Heating Method	Steam / Electric / Hot Water

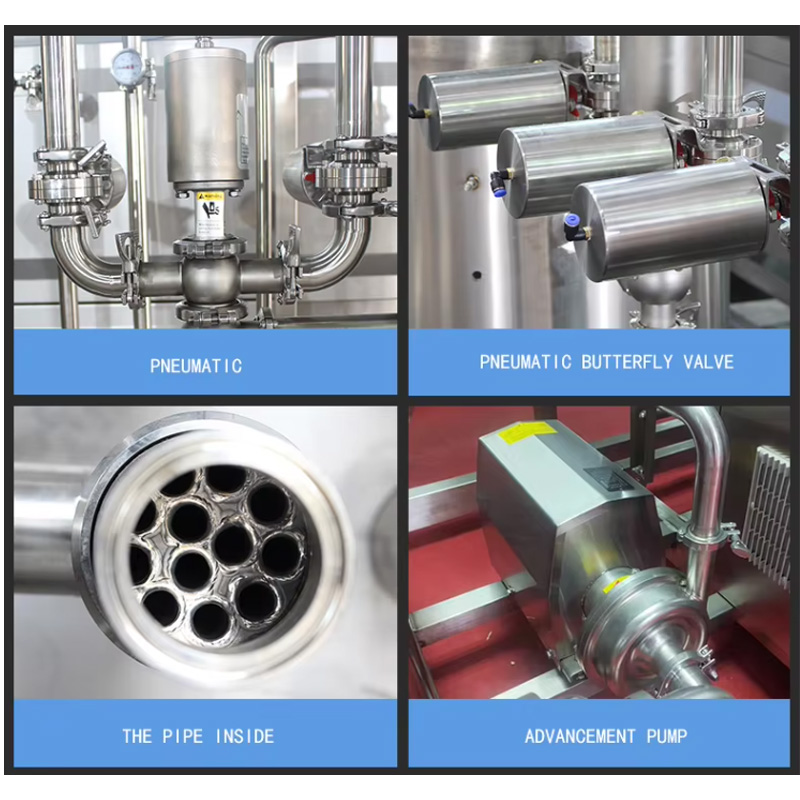

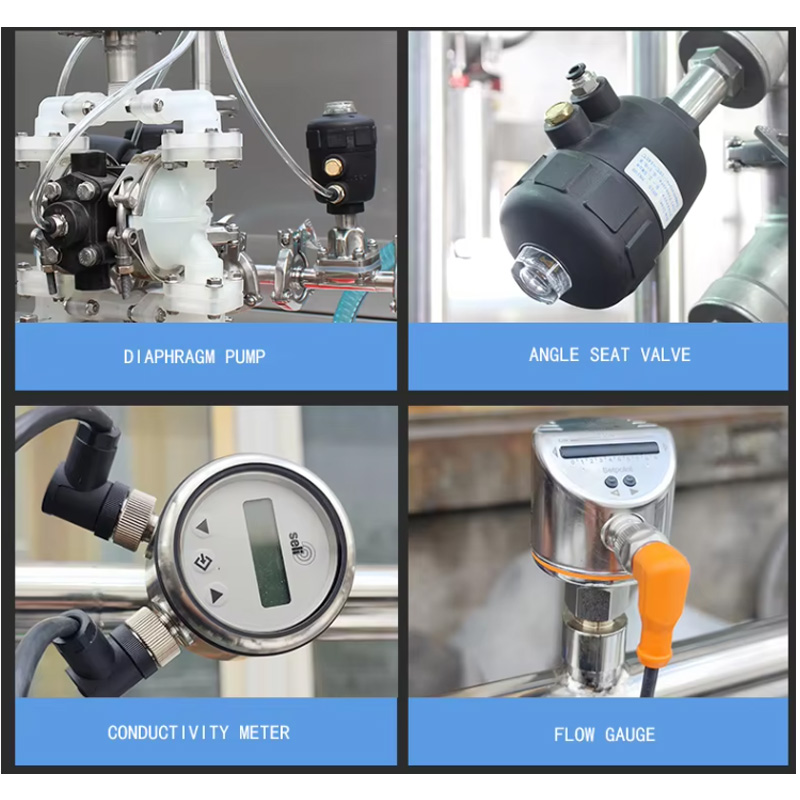

Core Components	PLC, Pump, Motor, Valves, Tanks, Pipes, Control Cabinet
Pump Flow	5 m³/h – 10 m³/h
Pump Power	1.5 kW – 4 kW
Voltage	220V / 380V / 415V / 440V
Power	2.2 kW – 6 kW
Tank Layer	Single Layer / Double Layer
Jacket Type	Dimple Jacket / Coil Jacket / Full Jacket
Processing Types	Food & Beverage Production Lines

Main features：

Fully automated CIP cleaning process reduces manual labor and increases productivity.
PLC-controlled system allows programmable sequences with real-time monitoring of temperature, flow, and pressure.
Integrated heaters and insulation maintain precise cleaning solution temperature for consistent sanitation.
High-efficiency centrifugal pumps ensure rapid and thorough circulation through tanks, pipelines, and valves.
Modular design enables flexible installation, easy maintenance, and scalability for different plant layouts.
Multiple cleaning cycles support pre-rinse, caustic wash, acid rinse, and final sanitization for high hygiene standards.

Application Scenarios：

Breweries: automated cleaning of fermentation, storage, and mixing tanks.
Juice production plants: ensuring sanitary conditions for pipelines, filling lines, and tanks.
Dairy factories: cleaning milk storage, pasteurization, and processing equipment.
Soft drink manufacturers: maintaining high hygiene standards in bottling and mixing lines.
Liquid food plants: automated cleaning of sauces, syrups, and beverage systems.
Pharmaceutical beverage production: ensuring GMP-compliant cleaning of tanks and pipelines.

FAQ

Q: What cleaning solutions are compatible with the system?
A: Caustic soda, acids, sanitizers, and other food-grade chemicals.
Q: Can the system clean complex piping networks?
A: Yes, the system circulates cleaning solutions through valves and fittings efficiently.
Q: How is temperature controlled?
A: Integrated heaters maintain precise temperature for effective cleaning.
Q: Is the system suitable for 24/7 operation?
A: Yes, it is designed for continuous industrial use with minimal supervision.
Q: Can the system be scaled for larger plants?
A: Yes, modular design allows easy expansion to fit different plant layouts.
