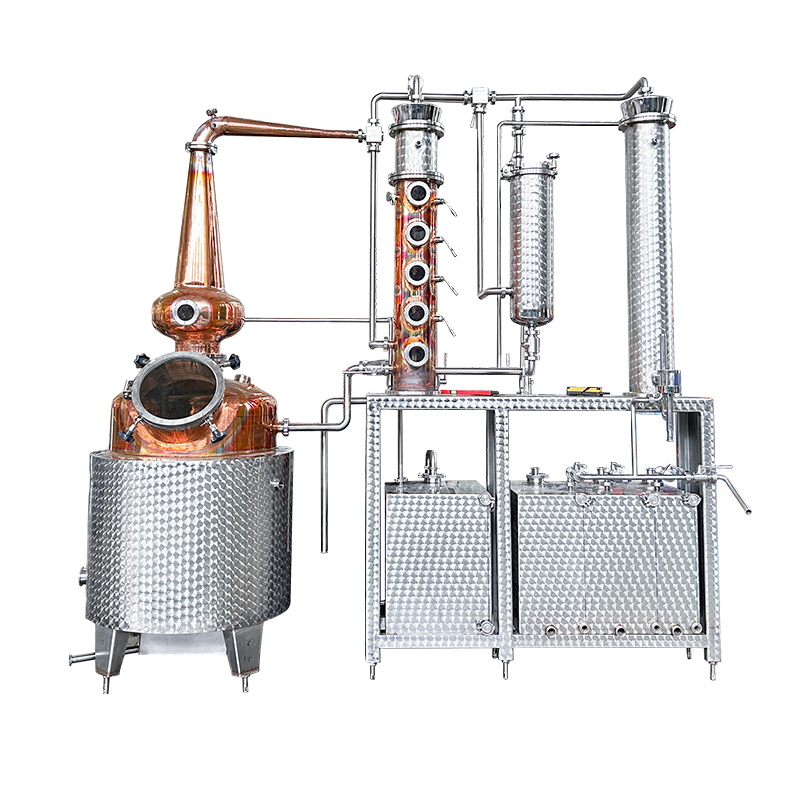

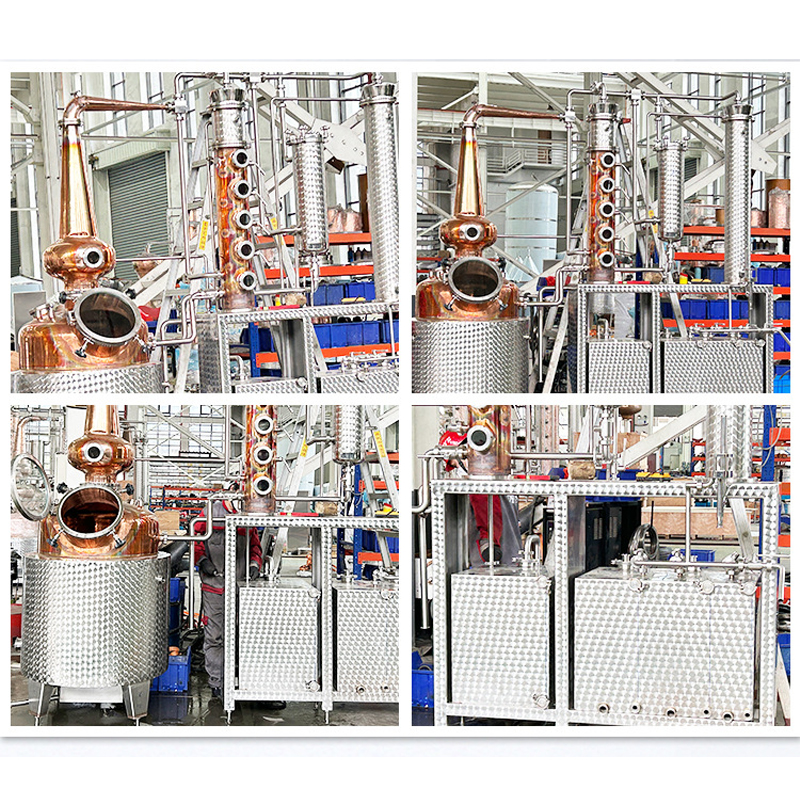

500L High Efficiency Copper Distillation Equipment/Whisky Distiller
Applicable Industries：Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Construction works , Energy & Mining, Food & Beverage Shops
$62,100.00
CompareMaterial: red copper/SUS304 for choose
Heating method: by steam/electrical heating elements
Top of pot with whole glass manway,inlet,safety valve, thermometer,pressure gauge and liquid return back hole. Top with agitator can be used to distill any wash,even washes full of fruit pulp or grain mash can heated in this configuration of boiler without any risk of burning on bottom of pot.Also,by constantly agitating the wash throughout the distillation run,the distillery can save 20% on the heating required to perform the distillation.
|
Spirit type |
Components |
|
|
Whisky distiller |
200-5000L |
Still pot, swan neck, condenser, CIP, pipe system |
|
Vodka distiller |
200-5000L |
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system |
|
Bradny distiller |
200-5000L |
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system |
|
Rum distiller |
200-5000L |
Still pot, column, condenser, CIP, pipe system |
|
Gin distiller |
200-5000L |
Still pot, column, gin basket, condenser, CIP, pipe system |
|
Multi-spirits distiller |
200-5000L |
Still pot, onion head, column, gin basket, dephlegmator, condenser, CIP, pipe system |
