500L/H RO Water Treatment System for Spring & Mineral Water
This 500L/H RO water treatment system provides high-capacity, reliable purification for spring, mineral, and purified water. Featuring quartz sand and activated carbon filters, softeners, high-pressure pump, and RO membrane, it delivers safe, clean water efficiently. Equipped with PLC control, UV sterilization, and ozone generator, the system ensures water quality monitoring and operational safety. Ideal for industrial water treatment, beverage production, and commercial water supply, offering consistent performance and easy maintenance.
Compare
Product Introduction for RO Water Treatment System
The 500L/H RO water treatment system is designed for efficient purification of spring, mineral, and industrial water. With a capacity of 500 liters per hour, it integrates pre-filtration, high-pressure pumping, reverse osmosis, UV sterilization, and optional ozone treatment.
This system effectively removes dissolved solids, bacteria, color, nitrates, and organic contaminants, providing safe and high-quality purified water. It is suitable for commercial water supply, beverage and bottled water production, laboratories, hotels, and industrial water treatment facilities. The PLC-controlled system ensures easy operation and real-time monitoring, offering a reliable and durable solution for consistent water purification needs.
Technical Specifications：
| Item | Parameter |
|---|---|
| Capacity (Productivity) | 500 liters/hour (500 L/h) |
| Functions | Drinking water, bottled water, industrial water, commercial water |
| Systems | Reverse osmosis system, ultrafiltration system, EDI ultrapure water system, water recovery system, seawater desalination, brackish water desalination |
| Desalination Rate | 96-99% |
| Water Recovery Rate | 50-70% |
| Production Water Quality | Conductivity <10 μs/cm；Total organic carbon ≤0.5 mg/L；Microorganisms <100 cfu/ml |
| Raw Water Quality | Total dissolved solids ≤ 1000 ppm；Suitable for: Well water, tap water, seawater, brine, brackish water |
| Operating Temperature | 0℃ ≤ T ≤ 45℃ |
| Operating Pressure | Pretreatment: 0.2-0.4 MPa；RO unit: 0.8-1.6 MPa |
| Power | 2-10 kW |
| Voltage | 220 V/50 Hz, 380 V |
| Materials | Fiberglass tank, 304 stainless steel, PVC pipe |
| Control Mode | Automatic or manual |
Working principle：
Raw water first passes through quartz sand and activated carbon filters to remove sediments, chlorine, and large impurities. Softening units reduce hardness, then the high-pressure pump pressurizes water into the RO membrane. The semi-permeable RO membrane allows only water molecules to pass, separating dissolved salts and contaminants. Purified water is collected in the storage tank, while concentrated brine is discharged. UV sterilization and ozone treatment further disinfect the water, ensuring safety and stability. PLC control monitors flow, pressure, and system status, maintaining efficient, high-quality purification continuously.
Main features：
• High-capacity 500L/H filtration ensures fast and efficient water purification for commercial use
• Multi-stage filtration with quartz sand, activated carbon, softener, and RO membrane ensures superior water quality

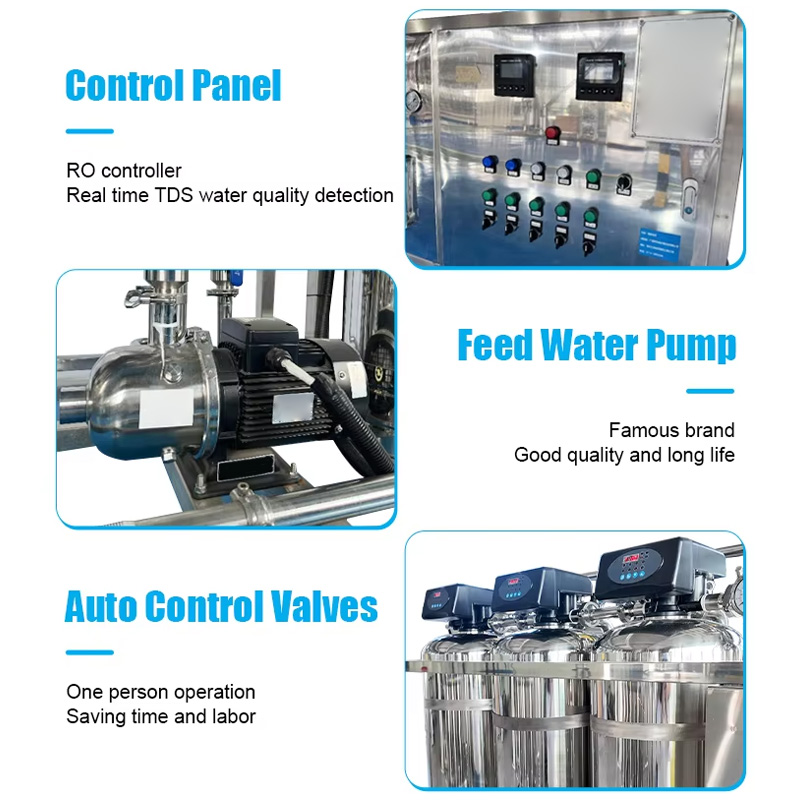

• PLC control panel provides clear operational monitoring and reduces human error during operation
• Integrated UV sterilization and ozone generator improve microbial safety and extend water shelf life
• High-pressure pump delivers consistent flow while maintaining stable system performance under continuous operation
• Durable stainless steel construction and corrosion-resistant components ensure long-term reliability and minimal maintenance
Application scenarios：
• Spring water and mineral water bottling plants requiring consistent purification
• Industrial and commercial water supply for hotels, restaurants, and offices
• Beverage production, including juice, tea, and soft drinks, needing high-quality water
• Laboratory and pharmaceutical applications where water purity is critical
• Mobile or on-site purification for construction sites, events, or temporary facilities
FAQ
Contact us to get your quotation now.
Get in touch with our engineering team.
Download full specification PDF.
