500L Automatic CIP System for Industrial Tank Cleaning
The 500L Automatic CIP System for Industrial Tank Cleaning is designed for efficient cleaning and sanitation of industrial tanks, pipelines, and processing equipment. It delivers automated cleaning cycles with stable solution circulation and controlled temperature, ensuring reliable hygienic performance for beverage, dairy, and food production facilities.
$9.00
Compare500L Automatic CIP System Product Introduction
The 500L Automatic CIP System for Industrial Tank Cleaning is engineered to provide reliable and efficient cleaning of industrial tanks, pipelines, and processing equipment. It enables automated circulation of cleaning solutions, ensuring consistent sanitation across production systems without the need for equipment disassembly. The system maintains controlled temperature and stable flow to improve cleaning efficiency while reducing water and chemical consumption. Its hygienic design supports safe operation and helps production facilities meet modern sanitation standards. Ideal for beverage, dairy, and food processing plants, this CIP system enhances operational efficiency, maintains product quality, and supports continuous hygienic production environments.
Technical Specifications：
| Total Capacity | 2 × 250 L tanks (caustic tank and hot water tank) |
| Typical Dimensions | Width: 1800 mm × Height: 1800 mm × Depth: 1000 mm |
| Dry Weight | Approx. 320 kg |
| Tank Configuration | Caustic Tank: 250 L, Hot Water Tank: 250 L (insulated/non-insulated optional); Neutralization Vessel: 100 L (optional) |
| Heating System | Electric heating: 2×2000 W; Steam heating: DN20 inlet / DN15 condensate outlet (optional), equipped with digital PID temperature controller |
| Piping & Valves | Main piping: DN32 (1.4301/316L stainless steel), sanitary quick-fit connections; Suction inlet: DN25; Delivery outlet: DN25 |
| Pump | Sanitary centrifugal pump, power: 1.5 kW, flow rate: 3–5 t/h, head: 18–24 m, material: AISI 316L |
| Electrical System | 3×400V / 50Hz 16A |
| Control System | PLC automatic/semi-automatic control, optional HMI touchscreen, with safety interlocks for flow, temperature and pressure |
| Material | All product-contact parts: AISI 304/316L stainless steel, surface roughness: Ra≤0.8μm (hygienic grade) |
| Application | Small breweries, craft beverage producers, laboratory & pilot plant processing lines |
Main features：
- Efficient circulation cleaning system designed for industrial tanks and pipelines
- Stable temperature control improves sanitation performance and cleaning consistency
- Durable stainless steel structure ensures hygienic and corrosion-resistant operation
- Automated cleaning cycles reduce manual labor and improve production efficiency
- Compact integrated design suitable for various food and beverage facilities
Application Scenarios：
- Cleaning and sanitation of industrial storage tanks in beverage factories
- Maintenance of hygienic pipelines in dairy and food processing plants
- Regular cleaning of fermentation and mixing tanks in production lines
- Sanitary washing of processing equipment in small and medium factories
- Supporting consistent hygiene management in food and beverage production environments
Q1: What equipment can the 500L Automatic CIP System clean?
A1: It is designed to clean industrial tanks, pipelines, and processing equipment used in beverage, dairy, and food production facilities.
Q2: Does the system support automated cleaning cycles?
A2: Yes, the system uses PLC-controlled cleaning cycles to ensure consistent, efficient, and repeatable sanitation with minimal manual operation.
Q3: Is the neutralization vessel necessary for operation?
A3: The neutralization vessel is optional but recommended for safely treating used cleaning solutions and helping facilities meet environmental discharge regulations.
Related products
-
Automatic CIP Systems

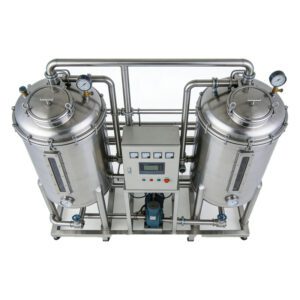

5-100 m³/h Automatic CIP System for Beverage Tank Cleaning
