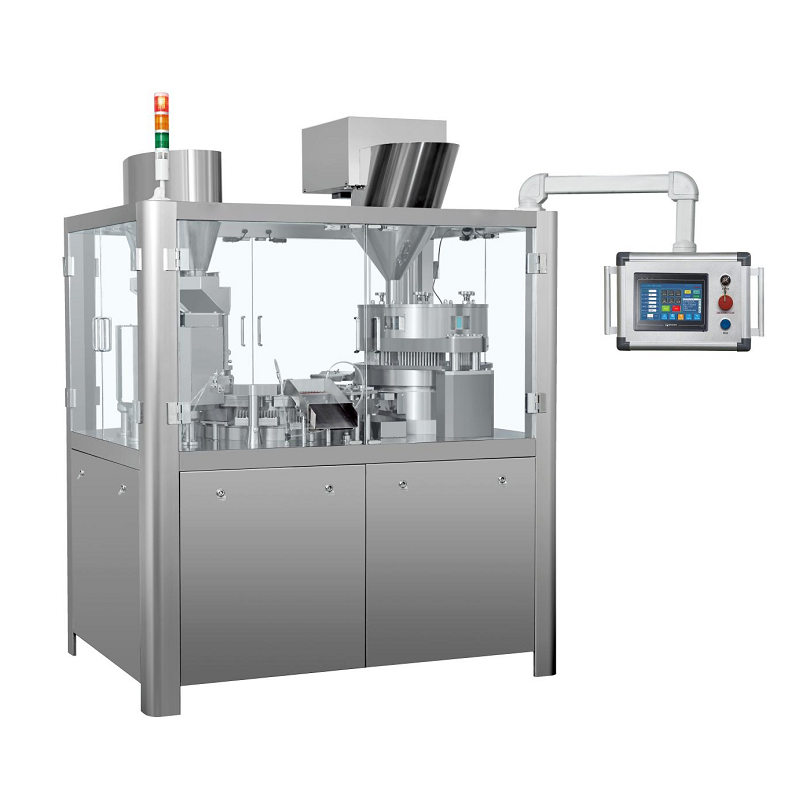

450000 Capsules/Hour Automatic Hard Capsule Filling Machine
The 450,000 capsules/hour automatic hard capsule filling machine delivers exceptional speed, accuracy, and reliability for large-scale capsule production. Designed with a user-friendly control interface and advanced dosing technology, it ensures uniform filling of powders, granules, or pellets. The enclosed rotary system and integrated cleaning mechanism maintain a hygienic, dust-free environment, fully meeting GMP requirements. Ideal for pharmaceutical and health supplement manufacturers seeking high efficiency and consistent capsule quality.
Compare
Technical Parameters — 450000 Capsules/Hour Automatic Hard Capsule Filling Machine
| Parameter | Specification |
| Filling Material | Powder, Granules, or Pellets |
| Applicable Capsule Size | 00#–5# Capsules / Safety Capsule A–E |
| Maximum Production Capacity | 450,000 capsules/hour |
| Number of Dosing Holes | 54 |
| Power Supply | 380V, 50Hz, 8.95 kW
220V, 50Hz, 9.05 kW |
| Noise Level | ≤ 80 dBA |
| Vacuum Degree | -0.02 to -0.06 MPa |
| Compressed Air (Module Cleaning) | Consumption: 12 m³/h
Pressure: 0.3–0.4 MPa |
| Machine Dimensions (L×W×H) | 1750 × 1485 × 2180 mm |
| Machine Weight | 3500 kg |
Product Features – Automatic Hard Capsule Filling Machine

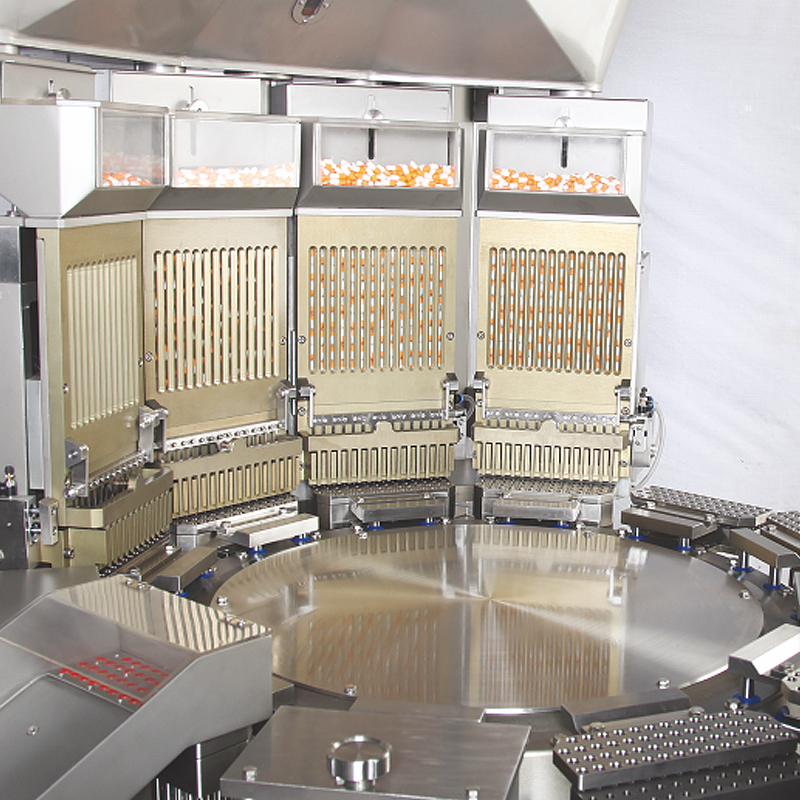

1.Fully Enclosed Filling Rotary Section
Ensures clean operation and easy maintenance.
2.High-Quality Sealing with One-Way Movement Polyester Lip Rings
Upper and lower modules use imported double-lip polyester sealing rings for excellent sealing performance.
3.Efficient Module Cleaning System
Combination of suction and air-blowing ensures no powder remains in the dosing holes during high-speed operation.

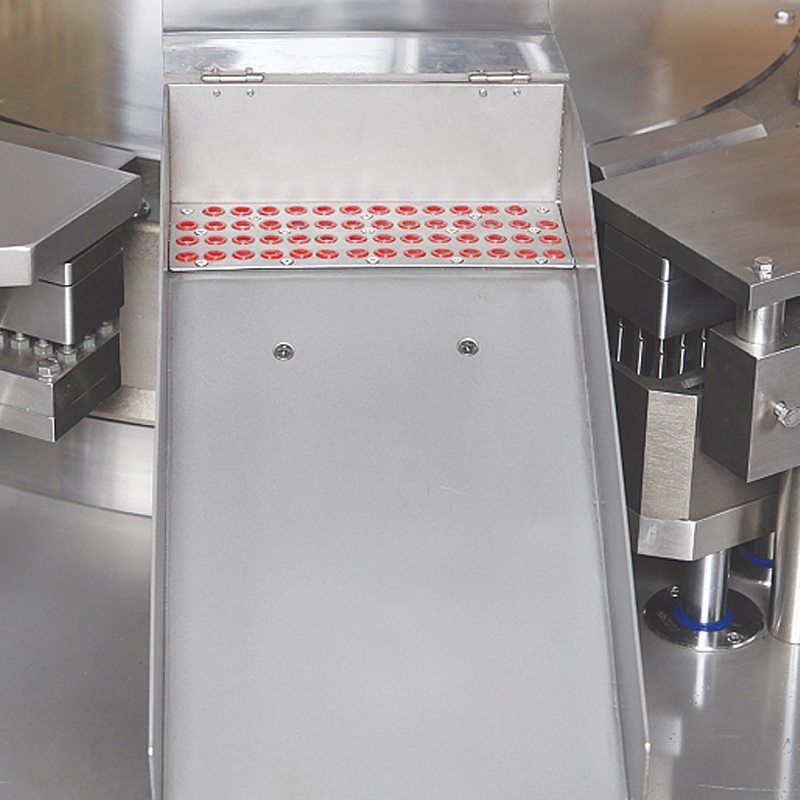

4.Dust-Free Capsule Discharge
Finished capsule discharge station equipped with capsule retaining ring prevents powder flying.
Contact us to get your quotation now.
