40 cycle/min Pouch Packing Machine for Liquid Shampoo Line

Product introduction of Pouch Packing Machine

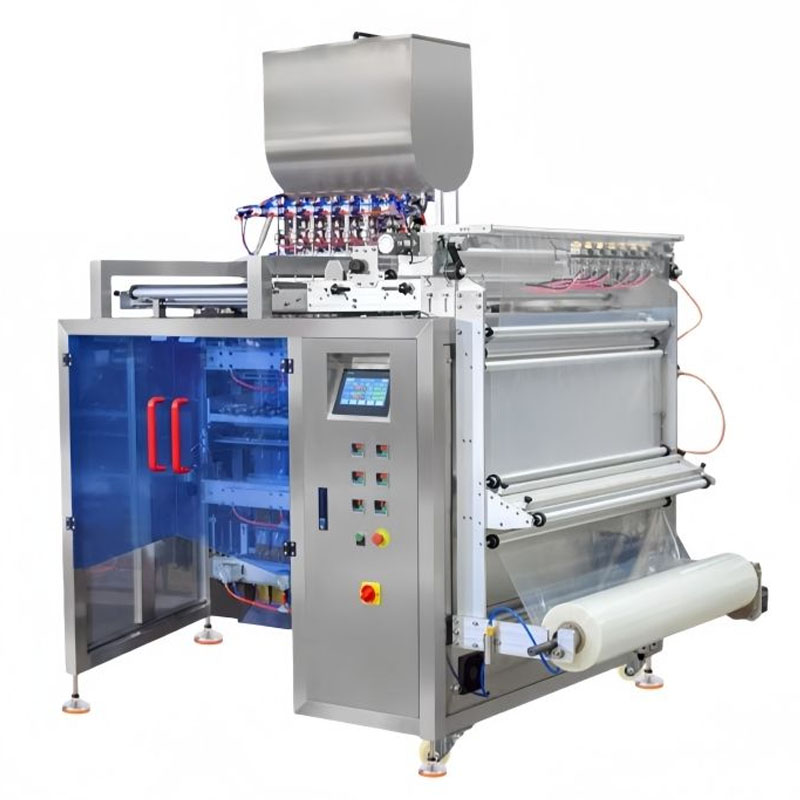

The pouch packing machine is an automatic multi-track packaging system used for producing shaped sachets from roll film materials. It integrates bag forming, measuring, filling, sealing, cutting, and counting into a continuous process. Designed with stainless steel 304 contact parts and PLC control, it ensures hygienic operation and stable performance. The machine is suitable for packaging viscous and semi-liquid products such as sauces, creams, honey, and cosmetic gels. It supports customizable sachet dimensions and film specifications, making it widely applicable for manufacturers in food processing, daily chemical production, and pharmaceutical packaging industries.

Working Principle

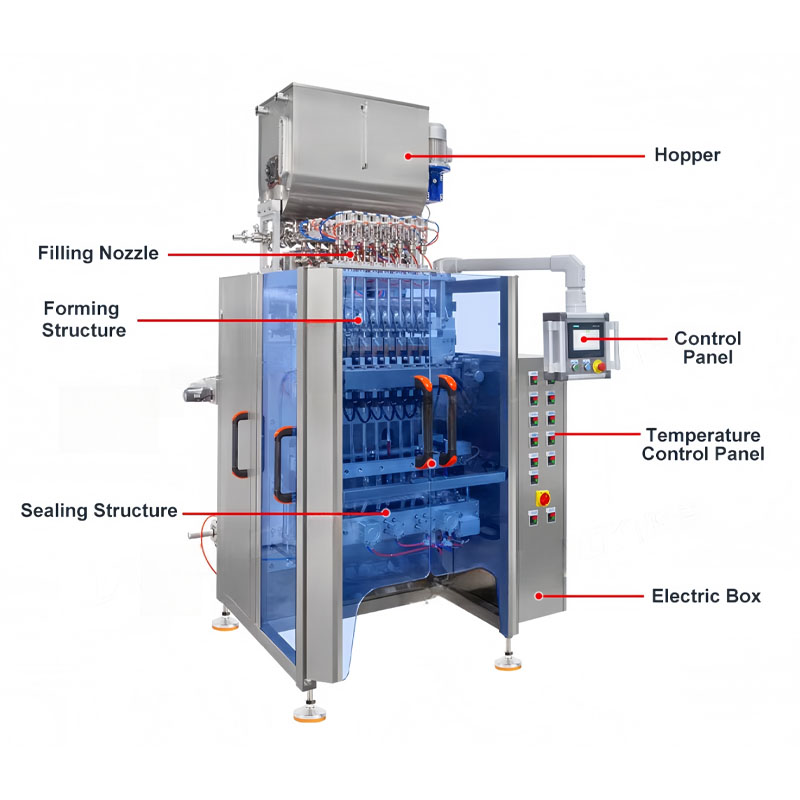

The machine feeds film into the forming system where sachets are shaped using servo-controlled film pulling. Product material is measured and filled into each pouch through a synchronized dosing system. The eye mark sensor ensures precise alignment during sealing and cutting. Pneumatic sealing units perform horizontal and vertical heat sealing to form fully enclosed sachets. Finished products are automatically counted and conveyed out, while PLC control coordinates all steps for continuous, stable, and high-speed packaging operation.

Product Parameter Table

Track number	4-10 track
Capacity	Max.40 cycle/min
Sachet size	Width 35-90 mm,Length 45-120 mm can be customized
Film width & thickness	Max 720 mm can be customized,0.07-0.1 mm
Filling method	Piston pump; Peristaltic pump
Power supply	220 V,50 Hz
Air consumption	0.5-0.8 m³/min
Equipment material	304 stainless steel

Main Features

• Servo motor controlled pouch pushing system ensures high precision bag forming and stable operation consistency.
• Eye mark sensor detection system accurately aligns sealing and cutting positions for improved packaging quality.
• PLC synchronized control system guarantees coordinated operation between filling, sealing, and cutting modules.
• Stainless steel 304 product contact surfaces meet hygienic GMP and CE production requirements.
• Multi-functional auxiliary system supports coding, feeding, conveying, and insulation mixing barrel integration.
• Multi-track high-speed design enables up to 40 cycles per minute depending on product characteristics.

Application Scenarios

• Food industry packaging for ketchup, honey, jam, chocolate sauce, and jelly products
• Cosmetic industry packaging for cream, lotion, gel, and skincare sample sachets
• Pharmaceutical applications for syrup, herbal extracts, and medicinal paste products
• Daily chemical industry for detergent gel, disinfectant gel, and liquid cleaning agents
• Health care product packaging for nutritional paste and functional food samples

FAQ

Q1: What types of products can this machine pack?
It is suitable for liquids, pastes, and viscous materials.

Q2: Can sachet size be customized?
Yes, both width and length can be adjusted according to requirements.

Q3: What is the production speed?
The machine operates up to 40 cycles per minute depending on product type.

Q4: Does it support multiple tracks?
Yes, it supports 4 to 10 track multilane production systems.

Q5: What materials are used for contact parts?
All product contact parts are made of stainless steel 304.
