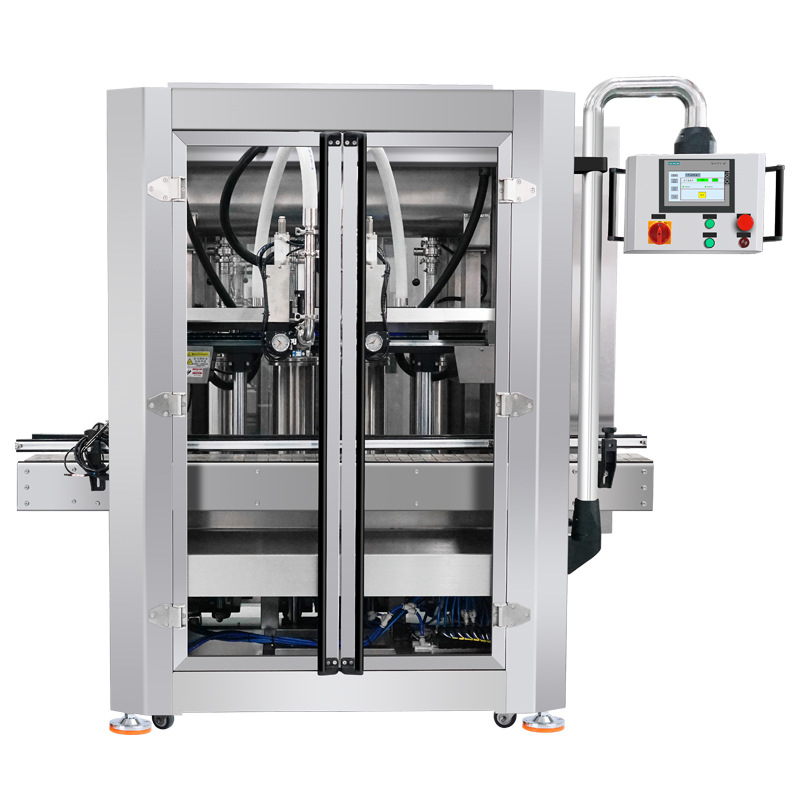

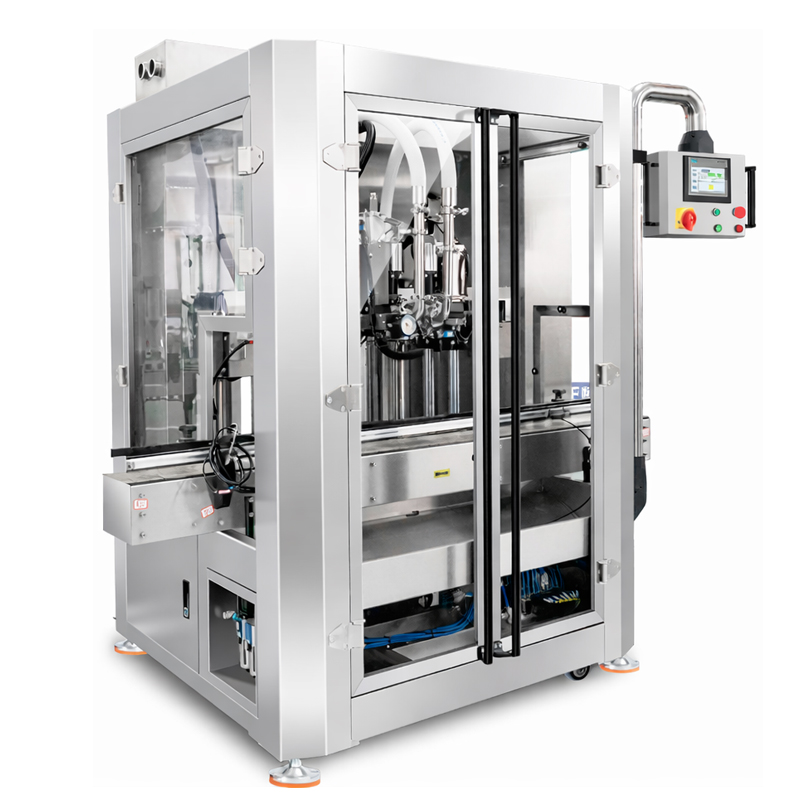

40–80 CPM Automatic Servo Tracking Filling Machine for Liquid Detergent
40–80 CPM Automatic Servo Tracking Filling Machine for Liquid Detergent is a fully automatic, high-precision filling solution designed for liquid and semi-liquid products.
The machine adopts a servo motor–controlled follow-up filling system, allowing the filling head to move synchronously with bottles during operation, ensuring stable filling, high accuracy, and no dripping or splashing.
Equipped with high-precision polished filling cylinders made of SUS304 / SUS316L stainless steel, this machine meets hygienic requirements for food, daily chemical and pharmaceutical applications. It is suitable for medium-speed production lines requiring flexible filling volumes and reliable performance.
Compare
Technical Specifications-Automatic Servo Tracking Filling Machine
| Item | Specification |
| Filling Type | Servo Tracking Piston Filling |
| Filling Heads | 2 |
| Filling Volume Range | 50–5000 ml |
| Filling Accuracy | ±1% |
| Production Capacity | 40–80 cans/min |
| Suitable Container Diameter | 10–100 mm |
| Suitable Container Height | ≤ 300 mm |
| Packaging Type | Bottles |
| Material Type | Liquid / Semi-liquid |
| Applicable Products | Water, oil, detergent, shampoo, beverage, milk, oral liquid, cosmetics, personal care products, juice, soft drinks, etc. |
| Applicable Industries | Food, Chemical, Catering, Daily Chemical, Alcohol, Pharmaceutical |
| Power Consumption | 4 kW |
| Overall Dimensions (L×W×H) | 3000 × 1000 × 2200 mm |
| Automation Level | Fully Automatic |
Key Features
-

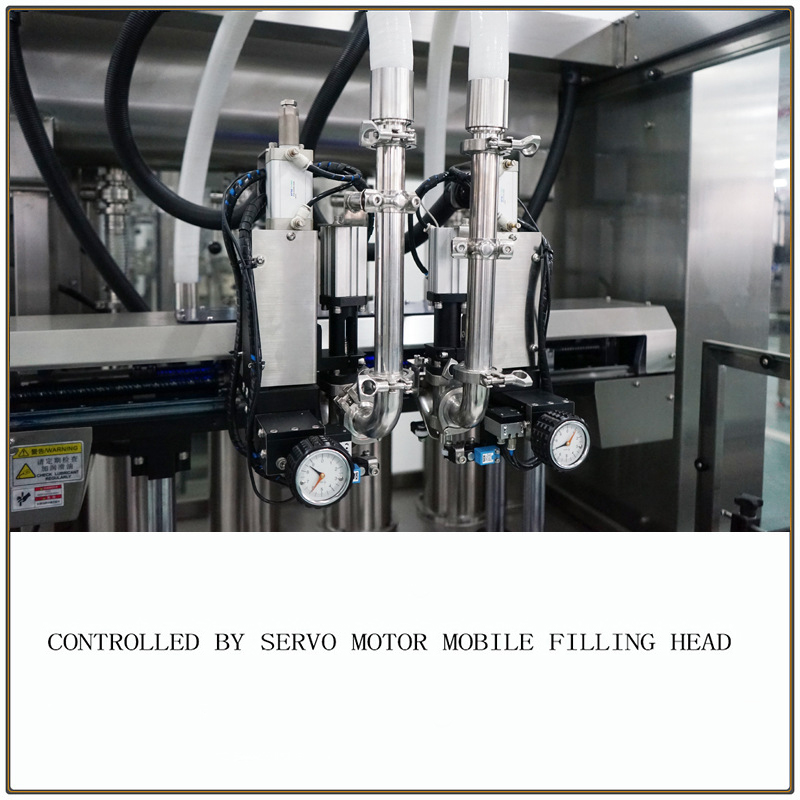

Servo Motor Controlled Tracking Filling Head
The mobile filling head follows moving bottles in real time, ensuring smooth and continuous filling at speeds of 40–80 cans per minute. -
High Filling Accuracy
Advanced servo piston filling system provides filling accuracy of ±1%, suitable for a wide range of liquid viscosities. -
Wide Filling Range
Adjustable filling volume from 50–5000 ml, compatible with various bottle sizes and production requirements. -

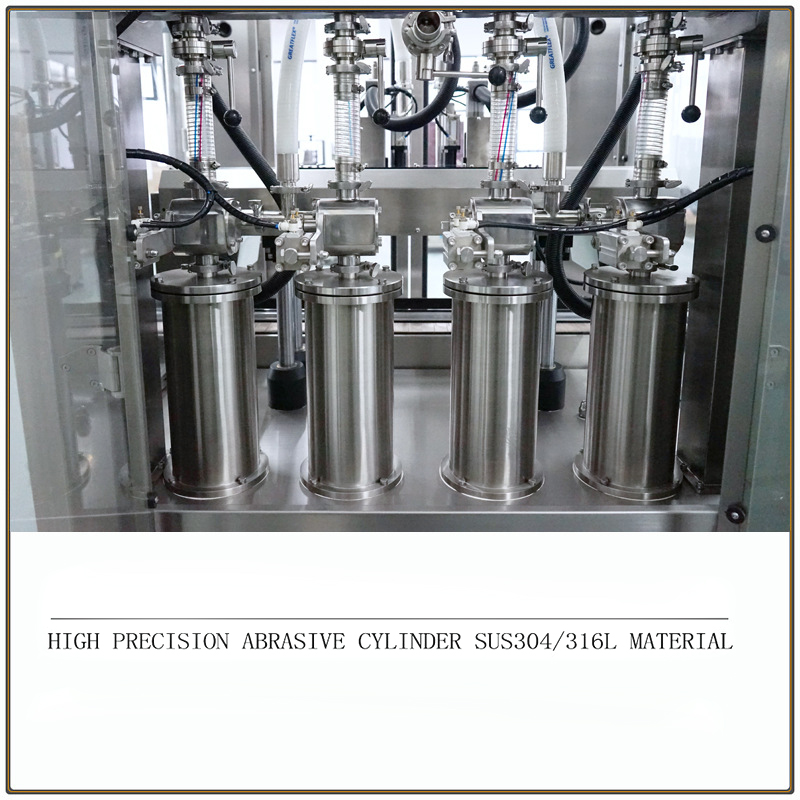

Food-Grade Stainless Steel Construction
High-precision abrasive cylinders made of SUS304 / SUS316L, corrosion-resistant, hygienic, and easy to clean. -
Strong Compatibility with Containers
Suitable bottle diameter: 10–100 mm
Suitable bottle height: up to 300 mm -
Fully Automatic Operation
Automatic filling process reduces labor cost and improves production efficiency, ideal for continuous bottling lines. -
Stable and Reliable Performance
Total power consumption 4 kW, compact structure with overall dimensions 3000 × 1000 × 2200 mm, easy to integrate into existing production lines.
Applications
This automatic servo tracking filling machine is widely used for filling liquid and semi-liquid products, including but not limited to:
-
Daily Chemical Products
Liquid detergent, laundry detergent, shampoo, shower gel, hand soap, cleaning liquids -
Food & Beverage Industry
Water, juice, beverage, edible oil, sauces -
Pharmaceutical & Health Products
Oral liquids, medicinal syrups, liquid supplements -
Cosmetics & Personal Care
Liquid cosmetics, skincare liquids, personal care formulations
Applicable industries: Food, Chemical, Catering, Daily Chemical, Alcohol, Pharmaceutical
Contact us to get your quotation now.
