This 4 heads filling machine is designed for precise liquid filling across multiple bottles in a compact production setup. It supports food, cosmetic, and chemical products such as milk, beverages, sauces, and liquid chemicals. Equipped with customizable pumps and automatic bottle sensing, it ensures stable and consistent filling performance. The straight-line bottle feeding system allows easy integration into production lines, making it suitable for small to medium-scale automated liquid filling operations with flexible application needs.

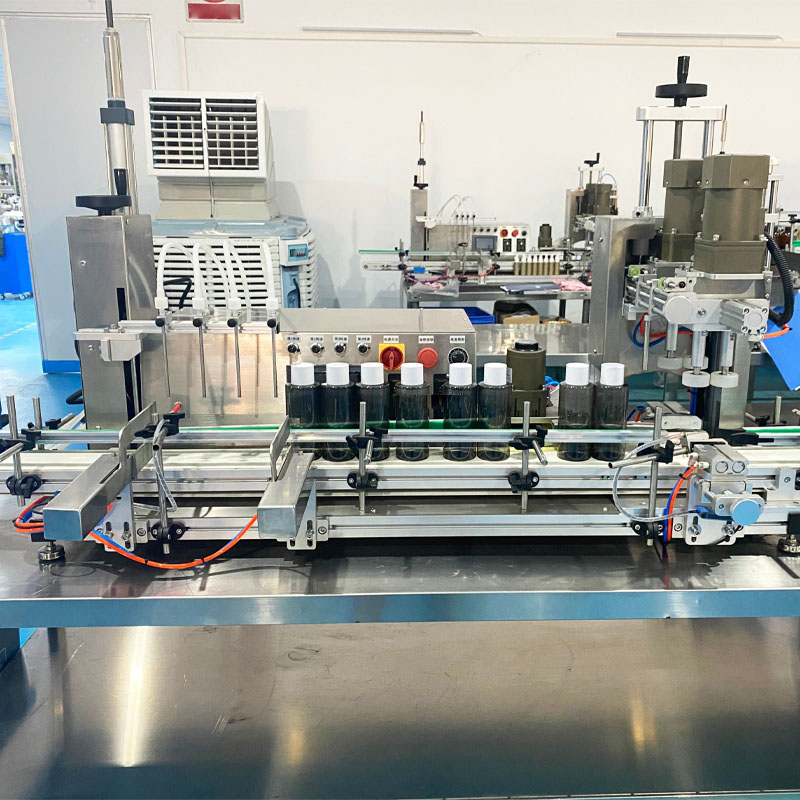

The 4 heads filling machine is an automated liquid filling system designed for accurately dispensing various liquid products into bottles or containers. It typically features a multi-head filling structure with a compact stainless steel frame, supporting different pump configurations such as gear pumps or peristaltic pumps. This equipment solves issues of inconsistent filling volume, leakage, and inefficiency in manual processes. It is suitable for manufacturers in food, beverage, cosmetic, and chemical industries who require stable, hygienic, and efficient filling solutions for liquids like milk, lotion, oil, and liquid chemicals.
Working Principle
The 4 heads filling machine operates by using a pump system to transfer liquid from a storage tank to the filling nozzles. Bottles are conveyed along a straight-line feeding system and detected by sensors. Once in position, the control system activates the filling heads simultaneously or individually. The pump delivers a measured volume of liquid, while the anti-drip valve prevents leakage. After filling, bottles are released and moved to the next process, ensuring continuous and efficient operation.
Product Parameter Table
Filling accuracy
≤1%(according to material)
Filling speed
1000-3600 Bottles/h(according to volume)
Bottle size
Diameter 10-80 mm, <22 mm bottles need molds. Height 50-220 mm.
Cap size
25-60 mm
Pressure
0.4-0.6 Mpa
Main Features
Gear and peristaltic pumps can be customized for different liquid materials

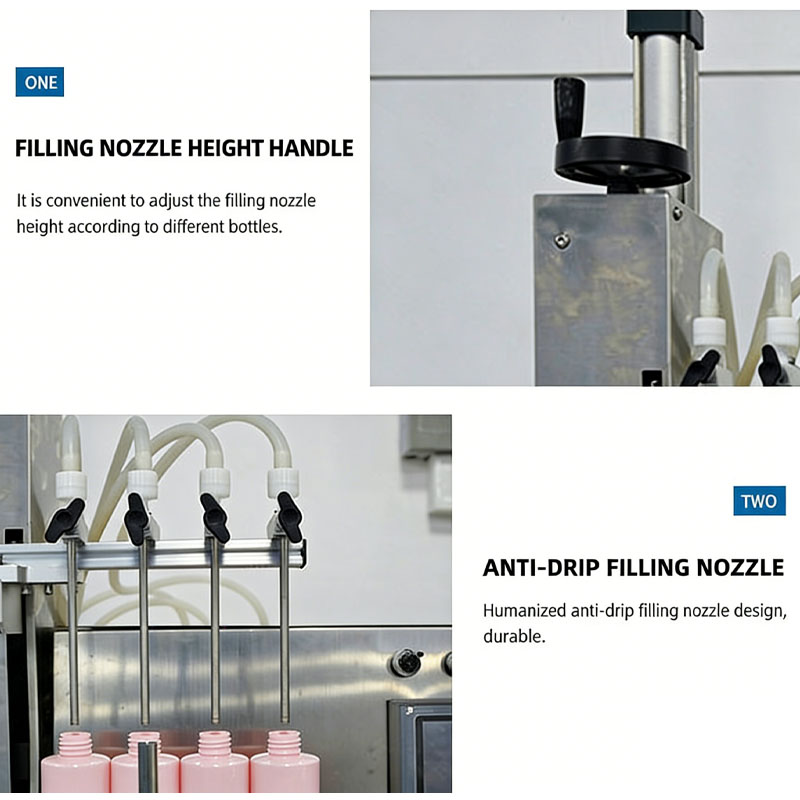

Anti drip glass valve design minimizes leakage and ensures clean filling process
Straight line bottle feeding system supports multiple bottle shapes and sizes
Automatic bottle detection enables precise and consistent filling volume control
Individual filling heads can be adjusted or independently disabled during operation
Compact structure allows easy installation in different production environments and lines
Q1: What types of liquids can this machine fill? It is suitable for low to medium viscosity liquids such as beverages, oils, lotions, and chemical liquids.
Q2: Can the filling heads be controlled individually? Yes, each filling head can be selected or disabled based on production needs.
Q3: What pump types are available? Gear pumps and peristaltic pumps can be customized according to material properties.
Q4: Is the machine easy to integrate into a line? Yes, the straight-line feeding design supports easy integration into production lines.
