The 4 head liquid filling machine is designed for continuous inline filling of liquid products on moving conveyor systems. It supports synchronized tracking filling, allowing containers to be filled without stopping the production line. Equipped with photoelectric bottle detection and servo-driven control, it ensures stable and accurate filling performance. The machine is suitable for water, antifreeze and other liquids, and is widely used in automated packaging lines requiring efficiency, precision and consistent output quality.
Compare

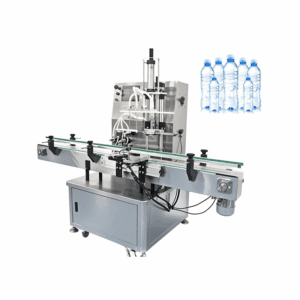

Product introduction of 4-Head Liquid Filling Machine
The 4 head liquid filling machine is an automatic industrial filling system designed for glass bottles, plastic bottles and similar containers in continuous production environments. It integrates tracking filling technology, servo-driven motion control and piston or diving filling options to achieve accurate and stable liquid dosing. The system is built with stainless steel for durability and hygiene compliance. It solves challenges such as low efficiency, inconsistent filling volume and production downtime. It is suitable for manufacturers in beverage, chemical and daily chemical industries requiring high-speed, multi-product and flexible filling operations.
Working Principle
The machine operates using a synchronized tracking filling system where bottles are detected by photoelectric sensors and followed by servo-driven filling heads. Once a bottle enters the filling zone, the filling nozzle moves in sync with the conveyor, maintaining equal speed to ensure continuous filling without stopping the line. Depending on configuration, piston or diving filling systems measure and deliver precise liquid volume. PLC control coordinates timing, speed, and motion parameters, ensuring stable, accurate and efficient production line operation.
Product Parameter Table
| Filling Nozzle | 4 |
| Filling Volume | 200 ml-5 L |
| Capacity | 3000 bottles/h(500 ml) |
| Filling Accuracy | ≥99% |
| Power Supply | 380 V,50/60 Hz |
| Working Pressure | 0.6-0.8 Mpa |
| Machine Power | 8 kW |
| Dimension (L×W×H) | 2400×2000×2300 mm |
| Weight | 850 kg |
Main Features
Application Scenarios
FAQ
Q1: What types of liquids can this machine handle?
A: It can handle water-based liquids, antifreeze, chemicals and low to medium viscosity fluids.
Q2: Does the filling line need to stop during operation?
A: No, the tracking system allows continuous filling while containers move on the conveyor.
Q3: Can it handle different bottle sizes?
A: Yes, adjustable filling heads support multiple bottle shapes and sizes.
Q4: How is filling accuracy controlled?
A: Servo motors and PLC system ensure precise volume and synchronized motion control.
Q5: Is it suitable for high-speed production lines?
A: Yes, it is designed for fully automated high-capacity production environments.
Contact us to get your quotation now.
Get in touch with our engineering team.
The fully automatic custom four-head liquid filling machine features an anti-foaming control function in its filling system for carbonated beverages, allowing precise control of filling speed and pressure to prevent liquid overflow caused by carbon dioxide release, ensuring accurate volume and consistent taste for each bottle. For bottled water in glass PET bottles, the equipment is adapted to the material characteristics of glass bottles, with a gently designed filling nozzle to prevent bottle shaking or damage from water flow impact, while also meeting the strict hygiene standards required for pet products.

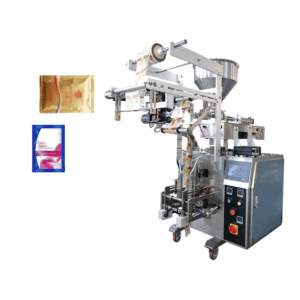

The four-side sealed liquid packaging machine has ultra-strong sealing as its core competitiveness. It is specially designed for various liquid materials such as fruit juice, sauces, disinfectants, and cosmetic concentrates, and is widely used in the food, daily chemical, and pharmaceutical industries. Its unique four-side synchronous sealing technology, driven by a servo motor, coordinates four sets of sealing knives to work together, forming reinforced seals 5-8mm wide around the packaging bag. This improves the sealing performance by more than 30% compared to traditional sealing methods, can withstand a 0.8MPa water pressure test, and effectively prevents leakage and spoilage of liquids.
This packaging machine is designed with food-grade safety standards. The main body is made of 304 stainless steel, while the parts that come into contact with materials are upgraded to 316L stainless steel, completely preventing cross-contamination. The fully automated process covers film forming, precise filling, heat sealing and cutting, as well as date printing. It supports multiple bag types, including back-seal, three-side seal, stand-up bags, and spout bags. The constant temperature heat sealing technology combined with dual control of temperature and pressure enhances the strength of the seals, keeping the bag breakage rate below 0.1%.
