4 Head Cup Filling Sealing Machine for Paper Cup Juice Milk

Product introduction of Cup Filling Sealing Machine

The cup filling sealing machine is a fully automatic linear packaging system designed for filling and sealing liquid or semi-liquid products into cups of different sizes. It is equipped with advanced electrical and pneumatic components, ensuring stable and efficient operation. The machine addresses common challenges such as inconsistent filling, poor sealing quality, and low production efficiency. It is suitable for food and beverage manufacturers, dairy processors, and packaging companies. This equipment supports hygienic and precise processing, making it ideal for applications requiring reliable cup filling and sealing performance in modern production environments.

Working Principle

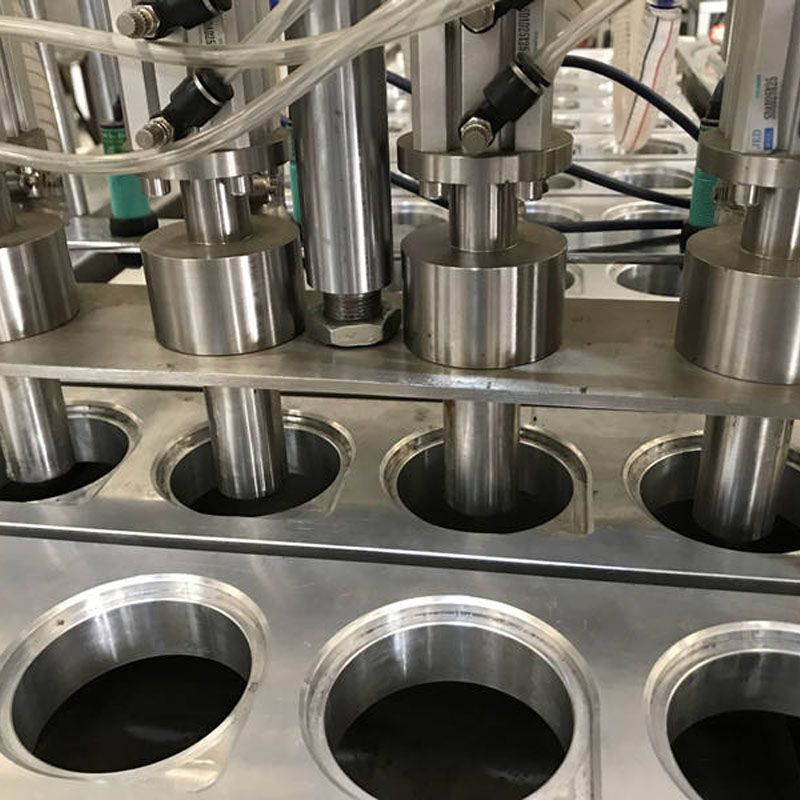

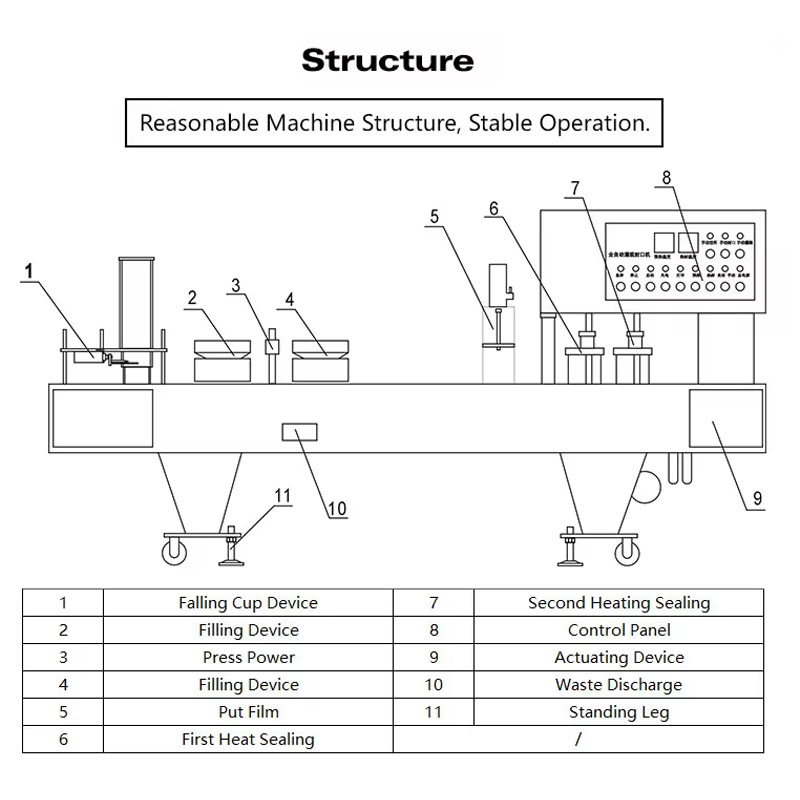

The machine operates through an integrated linear workflow that includes cup feeding, filling, sealing, and discharge. Cups are automatically positioned using a photocell sensor system, ensuring accurate alignment. Once in place, the filling system dispenses a preset amount of liquid into each cup. After filling, the sealing unit applies a film and performs a double sealing process with adjustable pressure. The sealed cups are then smoothly discharged from the system. The combination of pneumatic control and electrical automation ensures consistent operation, high precision, and stable performance throughout the entire packaging process.

Product Parameter Table

Output	3000-4000 cups/h
Power	3.5 kW
Filling Range	50 to 300 ml
Voltage	220 V,50 Hz
Air Consumption	0.6 m³/min
Machine Size	3300×710×1700 mm
Weight	700 kg

Main Features

• Linear design ensures stable operation and efficient continuous cup filling and sealing process.

• Fully automatic system with adjustable speed improves productivity and reduces labor costs.

• Photocell sensor provides precise cup positioning for accurate and consistent filling.

• Double sealing system with adjustable pressure ensures strong, customizable sealing quality.

• Smooth sealing edges deliver clean, professional packaging appearance and leak protection.

• Uses high-quality electrical and pneumatic components for reliable and long-term performance.

Application Scenarios

• Beverage packaging for juice, milk, yogurt, and drinking products requiring hygienic filling and sealing.

• Dairy production lines including yogurt, cream, pudding, and other semi-liquid food packaging.

• Food processing industries for sauces, desserts, jelly, and liquid food in cup containers.

• Takeaway and catering operations for ready-to-eat meals and portioned food packaging.

• Packaging manufacturers producing cup-based liquid and semi-liquid products at different scales.

FAQ

Q1: What products can this machine fill and seal?
It is suitable for liquids and semi-liquids such as juice, milk, yogurt, sauces, and similar food products.

Q2: Can it handle different cup sizes?
Yes, the machine is designed to work with multiple cup sizes and can be customized according to production needs.

Q3: Is the sealing pressure adjustable?
Yes, the sealing pressure can be adjusted to achieve different sealing effects such as easy-tear or strong sealing.

Q4: Does it operate automatically?
Yes, it is a fully automatic machine with adjustable production speed for efficient operation.

Q5: How does it ensure filling accuracy?
It uses photocell eye calibration to precisely detect and position cups for accurate filling and sealing.
