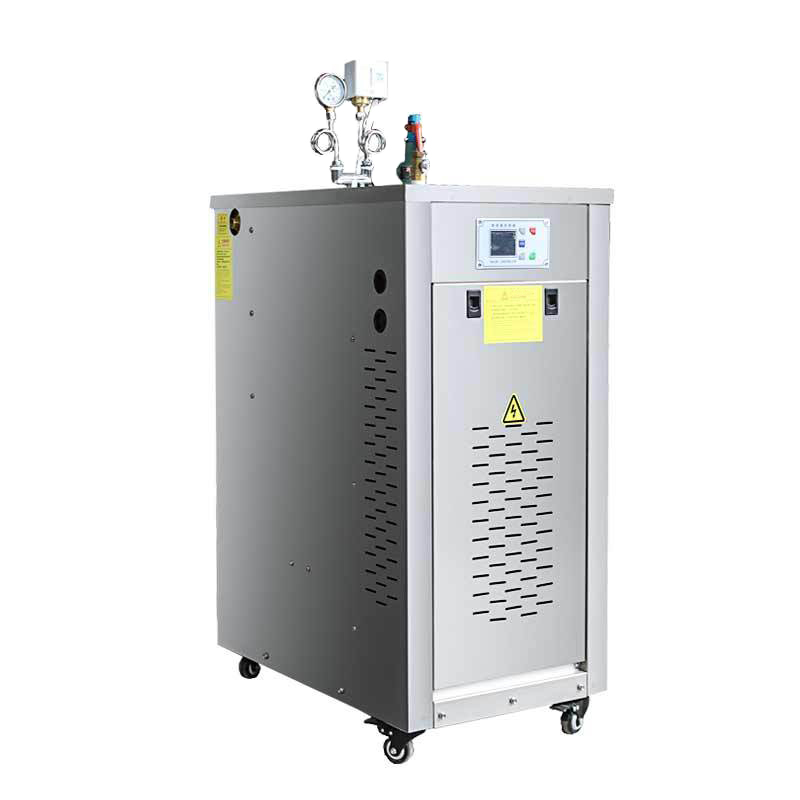

60 KG/H Electric Steam Generator Product Description
The 36 kW 60 kg/h electric steam generator is designed to deliver reliable and efficient steam using electric heating technology. It generates steam quickly without fuel combustion, ensuring environmentally friendly and safe operation.
With automatic control and compact structure, it provides stable steam supply for food processing, packaging machinery, and commercial steam applications. Its energy-efficient design helps reduce operating costs and improve productivity.


Technical Specifications
| Specification | Rated evaporation | Rated steam temperature | Rated pressure | Water capacity | Dimensions (mm) |
| 6 KW | 9 kg/h | 170ºC | 0.7Mpa | 24L | 460*580*1180 |
| 9 KW | 15 kg/h | 170ºC | 0.7Mpa | 24L | 460*580*1180 |
| 12 KW | 25 kg/h | 170ºC | 0.7Mpa | 24L | 460*580*1180 |
| 18 KW | 30 kg/h | 170ºC | 0.7Mpa | 24L | 460*580*1180 |
| 24 KW | 45 kg/h | 170ºC | 0.7Mpa | 24L | 500*710*1180 |
| 36 KW | 60 kg/h | 170ºC | 0.7Mpa | 29L | 500*710*1180 |
| 48 KW | 70 kg/h | 170ºC | 0.7Mpa | 29L | 920*570*1500 |
| 72 KW | 100 kg/h | 170ºC | 0.7Mpa | 29L | 920*570*1500 |
| 108 KW | 150 kg/h | 170ºC | 0.7Mpa | 29L | 920*570*1500 |
| 144 KW | 200 kg/h | 170ºC | 0.7Mpa | 29L | 910*700*1780 |
| 162 KW | 250 kg/h | 170ºC | 0.7Mpa | 29L | 950*650*1460 |
| 192 KW | 300 kg/h | 170ºC | 0.7Mpa | 29L | 950*650*1460 |


Key Features
- Electric heating provides clean and emission-free steam
- 60 kg/h steam capacity ensures stable performance
- 36 kW power provides efficient steam generation
- Automatic control system allows easy operation
- Compact design saves installation space
- Durable construction ensures long service life


Applications
- Food processing industry
- Packaging machinery
- Commercial kitchens
- Laundry industry
- Sterilization systems
- Industrial steam supply


Why Choose Us
- Professional steam equipment manufacturer
- Reliable and stable performance
- Competitive factory price
- Customizable configurations
- Technical support available
- Complete after-sales service
