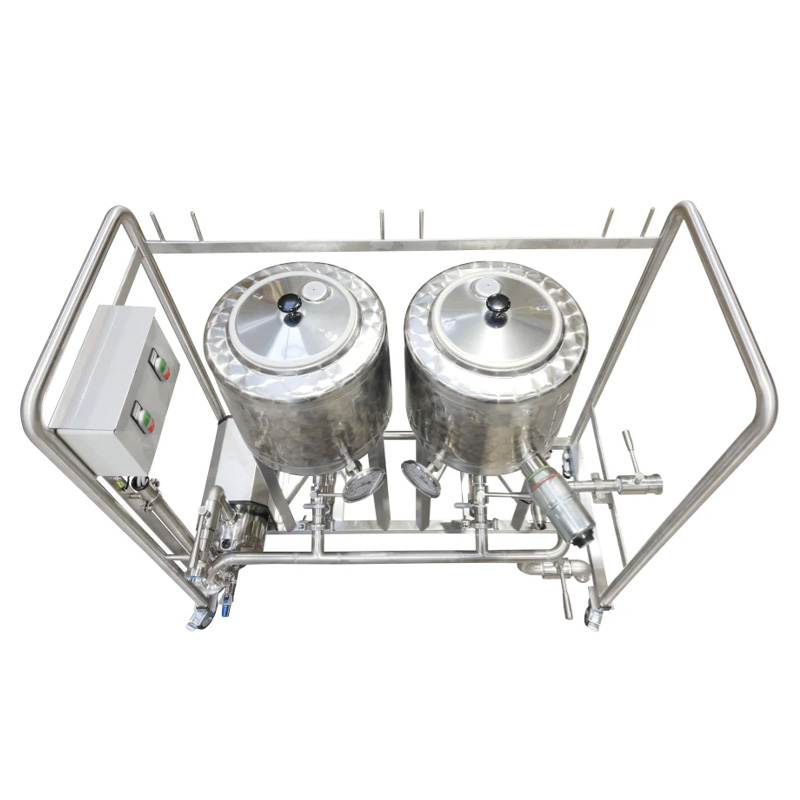

30L Automatic CIP System Hygienic Mobile Tank Cleaner


The 30L automatic CIP system is designed for efficient cleaning and sanitization of small tanks, pipelines, and food or beverage processing equipment. It features automated pump circulation, temperature-controlled spray, and a compact stainless steel structure for hygienic and reliable operation, making it ideal for laboratories, pilot breweries, and small-scale food production facilities.

$9.00

Compare

30L Automatic CIP System Product Introduction

The 30L automatic CIP system provides reliable and efficient cleaning for small tanks, pipelines, hoses, and processing equipment used in food and beverage production. Equipped with automated pump circulation, temperature-controlled spray nozzles, and integrated piping, it ensures thorough distribution of cleaning solutions while reducing manual labor. The compact mobile design allows easy movement between workstations, laboratories, or pilot production areas. Built with durable food-grade stainless steel, the system offers excellent corrosion resistance, easy maintenance, and long service life. This hygienic CIP solution helps maintain consistent sanitation standards and improves cleaning efficiency in breweries, beverage plants, laboratories, and small-scale food processing facilities.

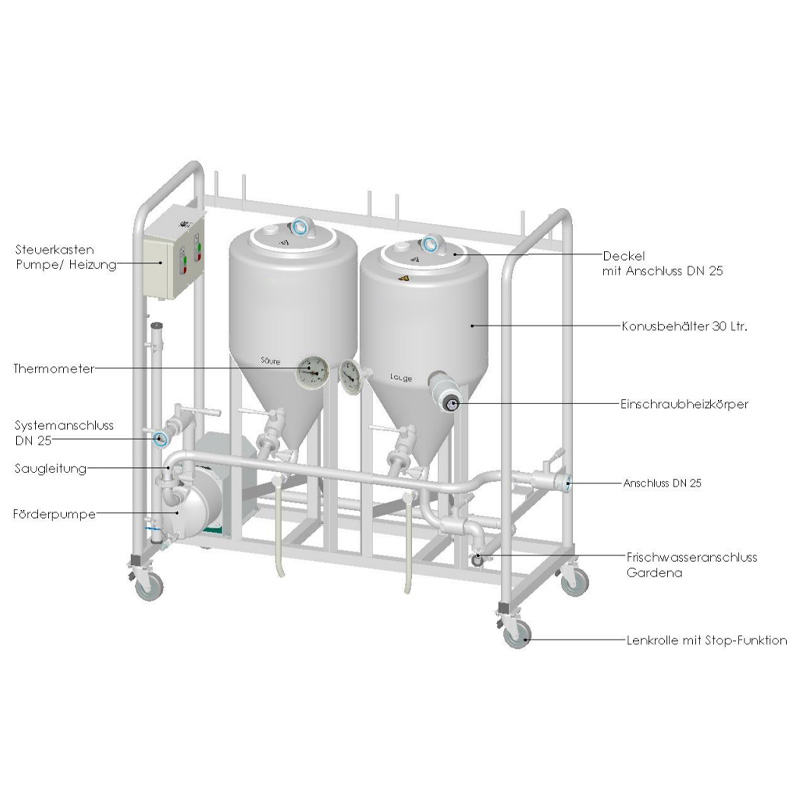

Technical Specifications:

Weight 60 kg
Power Supply 230 V ~ / 50 Hz / 3 m connection cable with Schuko plug
Immersion Heater 1,000 W heating output / adjustable temperature
Pump 880 W / 4.5 bar / 4,500 l/h / stainless steel (VA)
Minimum Protection 10 A with RCD (FI-Schutzschalter)
Protection Class IP 44
System Connections DIN NW 25 for 1″ hose / Gardena water connection
Control Panel Electric control box with on/off for pump and heating
Caustic Tank 30 L conical tank (VA) / temperature display / heating
Acid Tank 30 L conical tank (VA) / temperature display
Frame Mobile with 4 swivel castors

Main features

  • Compact Design – 30L capacity with space-saving structure.

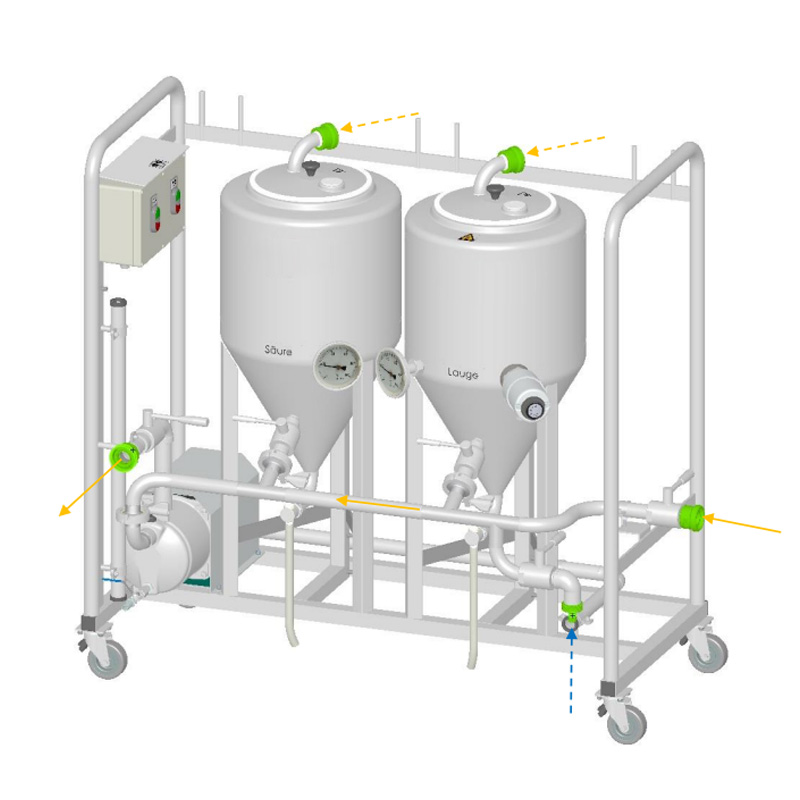

  • Efficient Circulation – Pump-driven loop cleaning for tanks and pipes.
  • Stainless Steel Build – Hygienic, corrosion-resistant material.
  • Easy Operation – Simple controls and stable cleaning cycles.
  • Mobile Structure – Flexible movement between equipment.

Application Scenarios:

  • Cleaning small brewery fermentation tanks.
  • Sanitizing food processing tanks and pipelines.
  • Laboratory and pilot equipment cleaning.
  • Juice and beverage production line sanitation.
  • Dairy tank and piping cleaning.

Q&A for 30L Automatic CIP System Hygienic Mobile Tank Cleaner

Q1: How does the 30L mobile CIP system ensure hygienic cleaning for small-scale food and beverage tanks?

A: It uses food-grade stainless steel construction, sanitary DN25 connections, and closed-loop circulation to avoid contamination. The 30L acid/caustic tanks and precise temperature control (up to 50°C) effectively remove biofilms and residues while meeting hygienic standards.
Q2: What mobility features make this 30L CIP system ideal for multi-tank production lines?

A: The compact frame (1200×570×1100 mm) with lockable swivel casters allows easy movement between tanks. The pre-plumbed hose connections and lightweight design (60 kg) eliminate the need for fixed installation, making it flexible for small-batch production.
Q3: How does the automatic control simplify operation for non-technical staff?

A: The system includes dedicated on/off switches for heating (with simple temperature regulation) and pumping, paired with a 10A RCD safety protection. It requires no complex programming—staff can start/stop cleaning cycles with basic controls while maintaining consistent cleaning results.
