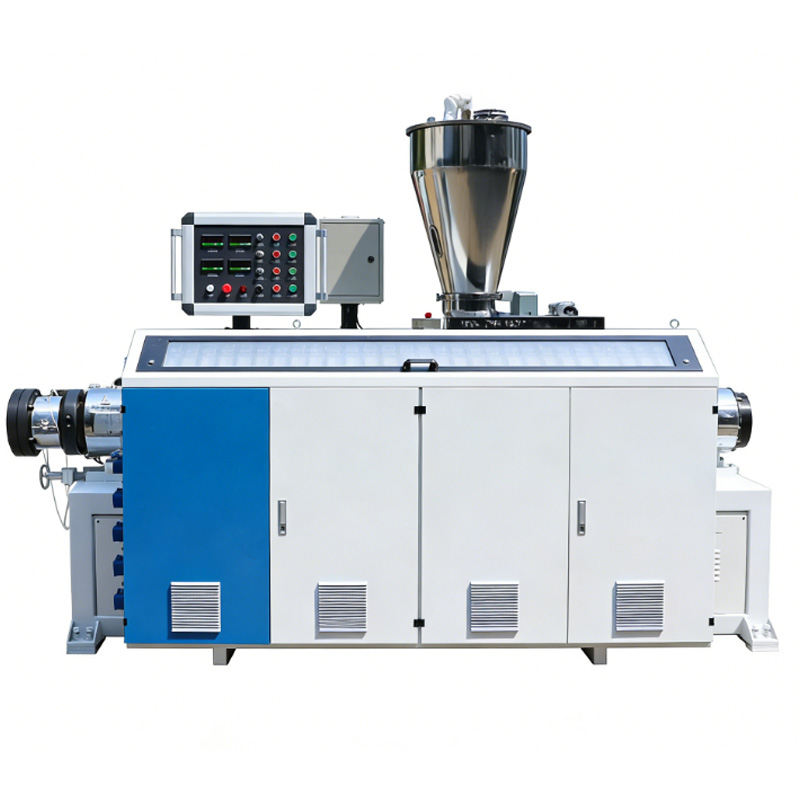

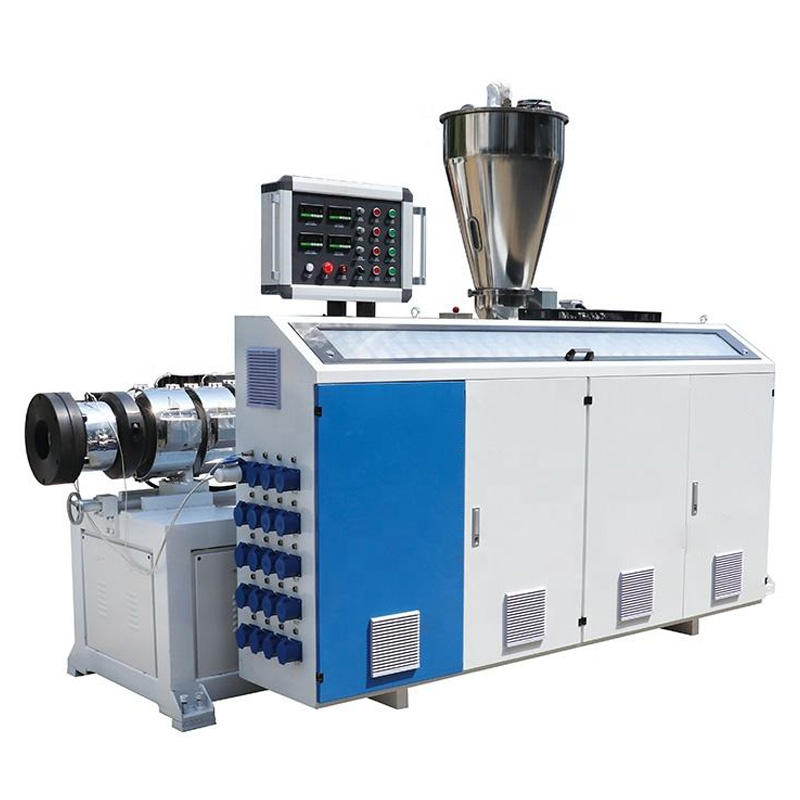

300kg/h Full Automatic Twin Screw PVC Profile Extruder

PVC Profile Extruder Product Introduction

The 300kg/h Full Automatic Twin Screw PVC Profile Extruder is a high-performance machine for PVC profile production. With a twin screw design, it ensures uniform melting, precise material feeding, and stable extrusion. Suitable for a wide range of profiles including window frames, door frames, pipes, and decorative molding.

The machine is fully automatic, integrating feeding, melting, extruding, and shaping processes. Its modular screw and barrel design allows easy maintenance and high flexibility for different PVC compounds. Equipped with a PLC control system, it provides precise operation, adjustable speed, and reliable production. This extruder improves efficiency, reduces labor, and guarantees consistent quality for industrial-scale PVC profile manufacturing.

Working Principle：

PVC resin and additives are fed into the twin screw extruder hopper. The screws rotate to convey and melt the material evenly. The molten PVC is then pushed through a die to form the desired profile shape. After extrusion, the profile passes through a vacuum calibrator or cooling tank to maintain dimensions and surface quality. Finally, the profile is cut to length by a cutting system. All operations are controlled by a PLC system for precise speed and temperature regulation.

Technical Specifications：

Production capacity	300 kg/h
Screw diameter	75/33 mm (L/D 33:1)
Screw type	Co-rotating twin screw, modular design
Motor power	22 kW
Extrusion speed	1-10 m/min, adjustable via PLC
Material hopper capacity	200 L
Temperature zones	6 zones, individually controlled
Die head type	PVC profile die, customizable
Cooling method	Vacuum calibrator and water cooling tank
Control system	PLC with touch screen interface for real-time monitoring

Main features：

• High-speed extrusion (300kg/h) – Efficient PVC profile production.
• Twin screw design – Ensures uniform melting and stable output.
• Full automatic operation – Integrates feeding, melting, extruding, and shaping.
• PLC control system – Precise control of temperature, speed, and extrusion process.
• Modular screw and barrel design – Easy maintenance and flexible for different PVC formulas.

Application Scenarios：

• Window and door frame production – Extruding high-quality PVC frames.
• Pipe manufacturing – Stable extrusion for PVC pipes.
• Decorative molding – Profiles for interior and exterior design.
• Industrial PVC profile production – Large-scale, consistent output.
• Plastic furniture components – Extrusion for durable PVC parts.

FAQ

• Q: What is the production capacity of this extruder?
  A: Up to 300kg per hour, depending on material and profile size.
• Q: Can it handle different PVC formulations?
  A: Yes, the twin screw system allows flexibility for various PVC compounds.
• Q: Is the machine fully automatic?
  A: Yes, it integrates feeding, melting, extrusion, and shaping automatically.
• Q: How is the profile cooled and stabilized?
  A: Using a vacuum calibrator or water cooling tank to maintain dimensions.
• Q: Can the screw speed and temperature be adjusted?
  A: Yes, all controlled via the PLC system for precise regulation.
