300 BPM Conveyor Belt Sorting Machine for Potato Grading Line

Product introduction of Conveyor Belt Sorting Machine

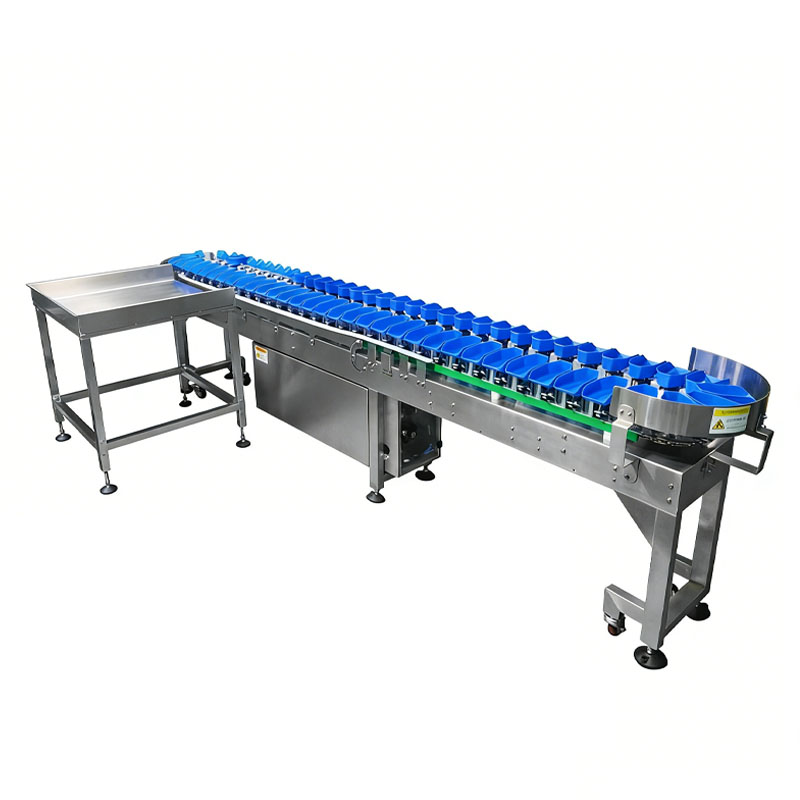

The Conveyor Belt Sorting Machine is a high-precision food processing system used for grading products by weight in automated production lines. It handles fruits, poultry, seafood, Chinese herbs, and other items up to 12×18 cm and 500 g. Materials are fed into circular trays, weighed via load cells, and sorted into 1–14 weight grades, improving efficiency, consistency, and production quality. The machine features a stainless steel frame, IP65 waterproof components, and an intuitive Willen HMI interface. It is suitable for food processors, seafood and poultry packing facilities, and automated fruit and vegetable sorting lines.

Product Parameter Table

Max.Weighing	500 g
Sorting Accuracy	±0.3 g
Sorting Speed	300 BPM
HMI	7” color touch screen
Product Size	≤1800 mm(L)×120 mm(W)
Control System	High-speed A/D controller
Power Supply	AC 220 V±10%，50 Hz/60 Hz,0.6 kW
Machine Dimension	3592 mm(L)×1174 mm(W)×1508 mm(H)
Reject Device	Overturned device
Working Condition	Temperature: 0℃~40℃;Humidity:30%~95%

Main Features

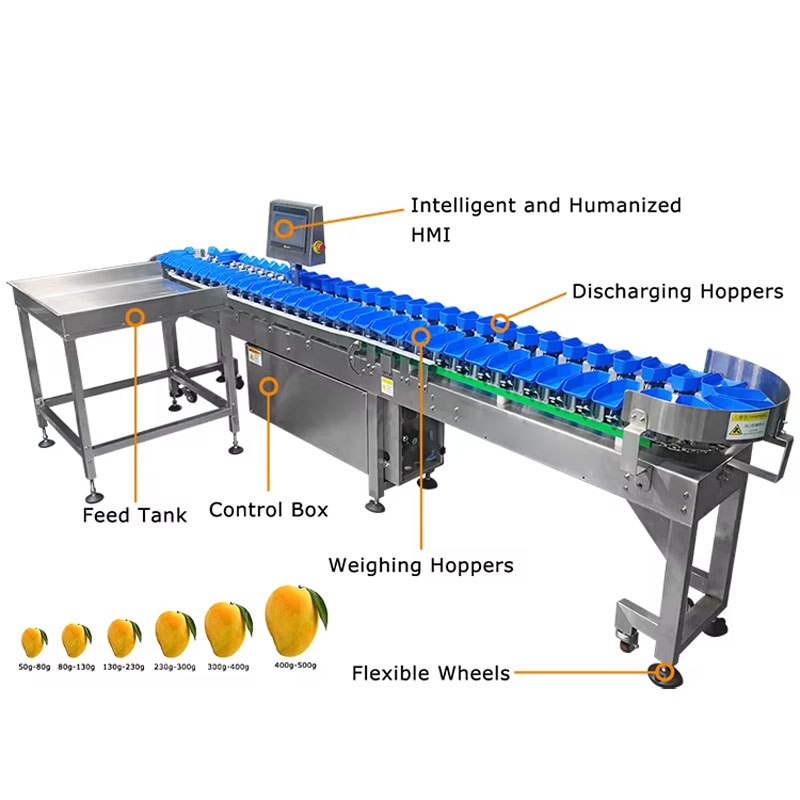

• Rotating circular trays allow continuous feeding and sorting of up to 14 weight grades efficiently.

• Load cells integrated into weighing hoppers ensure precise, real-time weight measurement for consistent product grading.

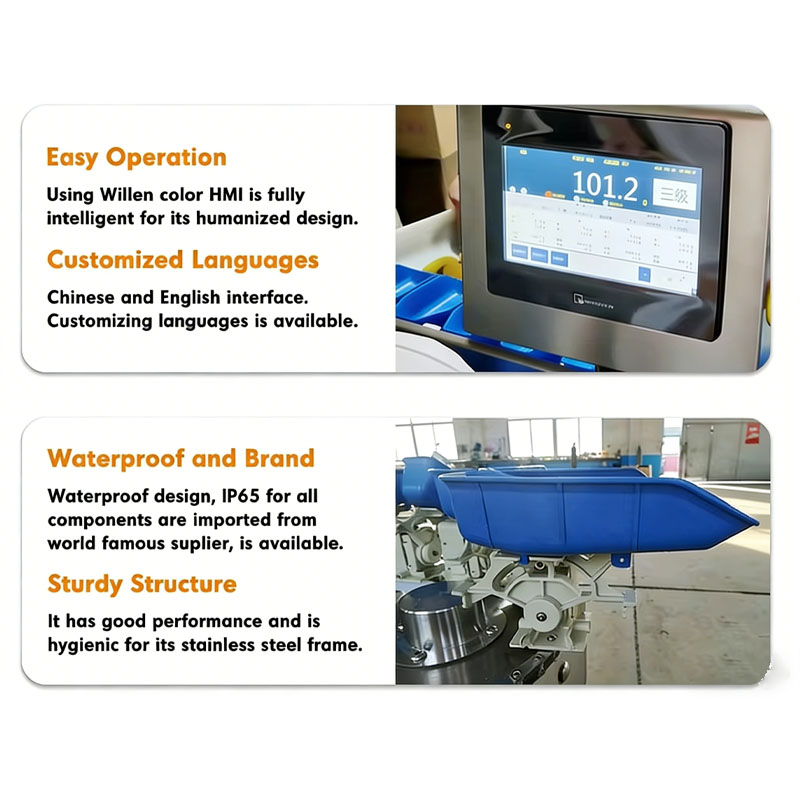

• User-friendly Willen HMI supports Chinese, English, and customizable languages for simplified operation.

• Stainless steel frame ensures hygienic food handling and stable performance in industrial production environments.

• IP65 waterproof components from world-class suppliers protect electronics from moisture and extend equipment life.

• Discharging hoppers guide products into receiving cabinets accurately, reducing manual handling and labor requirements.

Application Scenarios

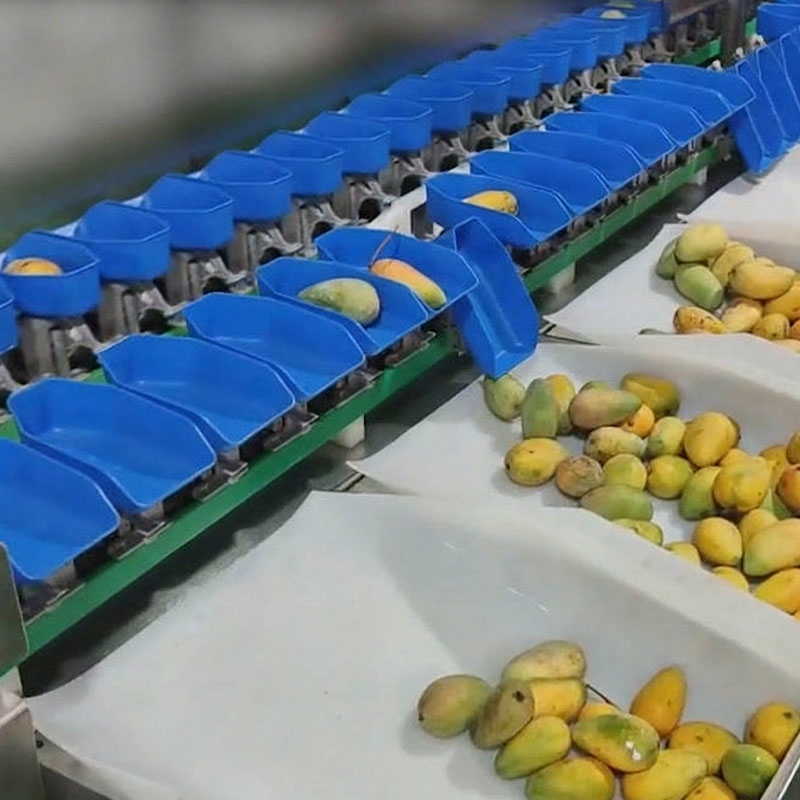

• Fruit processing lines for apple, mango, citrus, and berries sorting.

• Seafood and poultry packing facilities for grading shrimp, small fish, chicken wings, or nuggets.

• Chinese herb production lines for size- and weight-based sorting.

• Automated production lines in food, snack, or frozen food factories.

• Industrial lines requiring precise 1–14 grade weight classification and hygienic handling.

FAQ

Q1: What products can this machine sort?
A: Suitable for fruits, poultry, seafood, Chinese herbs, and other food products up to 12×18 cm and 500 g.

Q2: How many grades can it sort?
A: The machine can sort products into 1–14 weight grades.

Q3: Can it operate automatically?
A: Yes, products can be fed manually or automatically, and the HMI controls sorting.

Q4: Is it hygienic and waterproof?
A: Yes, stainless steel frame ensures hygiene, and all components are IP65 waterproof.

Q5: Can the interface language be customized?
A: Yes, Chinese, English, or other customized languages are available.
