300-500kg/h Breakfast Cereal Extruder for Snack Production
This 300–500kg/h breakfast cereal extruder is designed for producing cereal snacks and corn flakes from grain-based raw materials. Using advanced twin-screw extrusion technology, the machine processes grain flour into crispy breakfast cereal products with consistent texture and shape. By changing molds and adjusting process settings, various cereal snack forms can be produced. The system provides stable operation and efficient performance for industrial cereal and snack food manufacturing.
Compare
Product Introduction for Breakfast Cereal Extruder

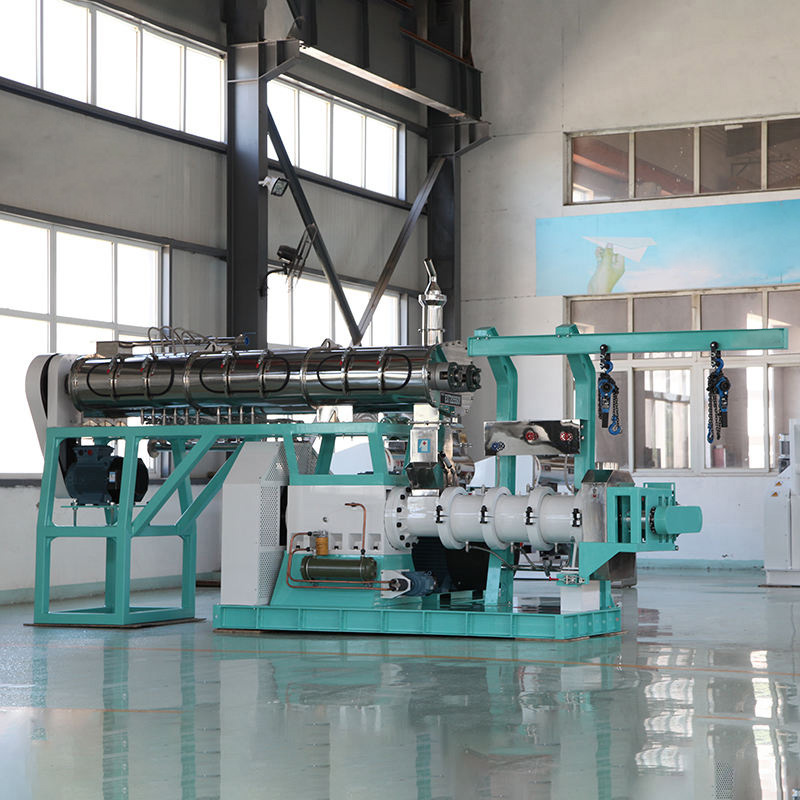

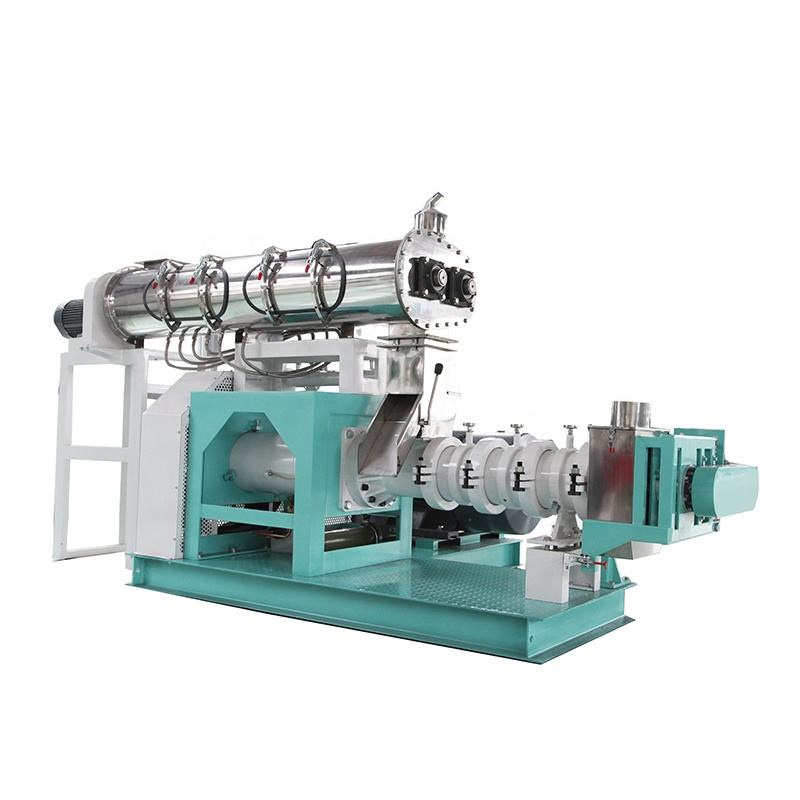

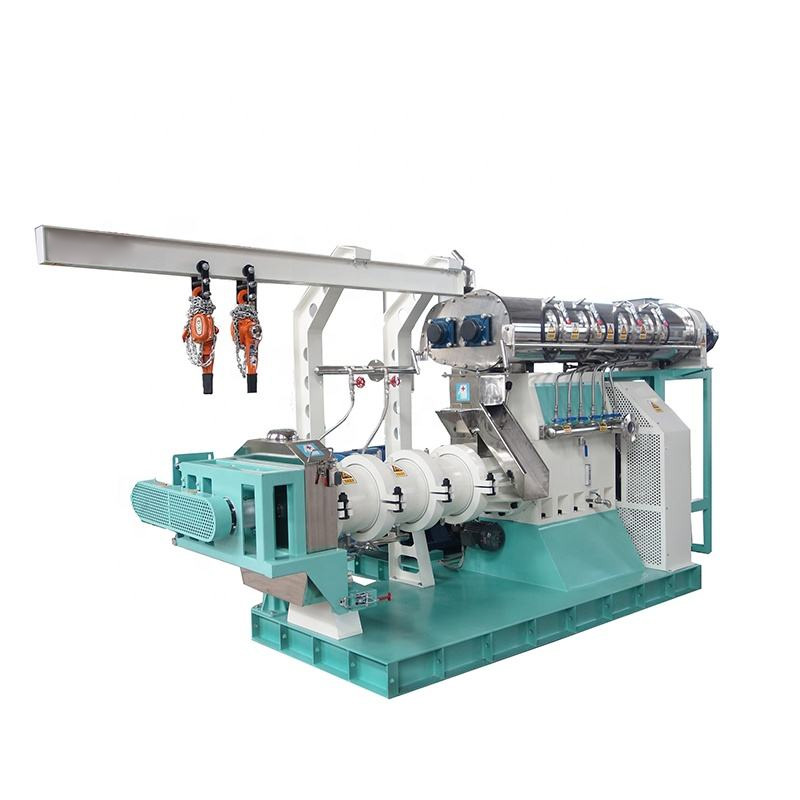

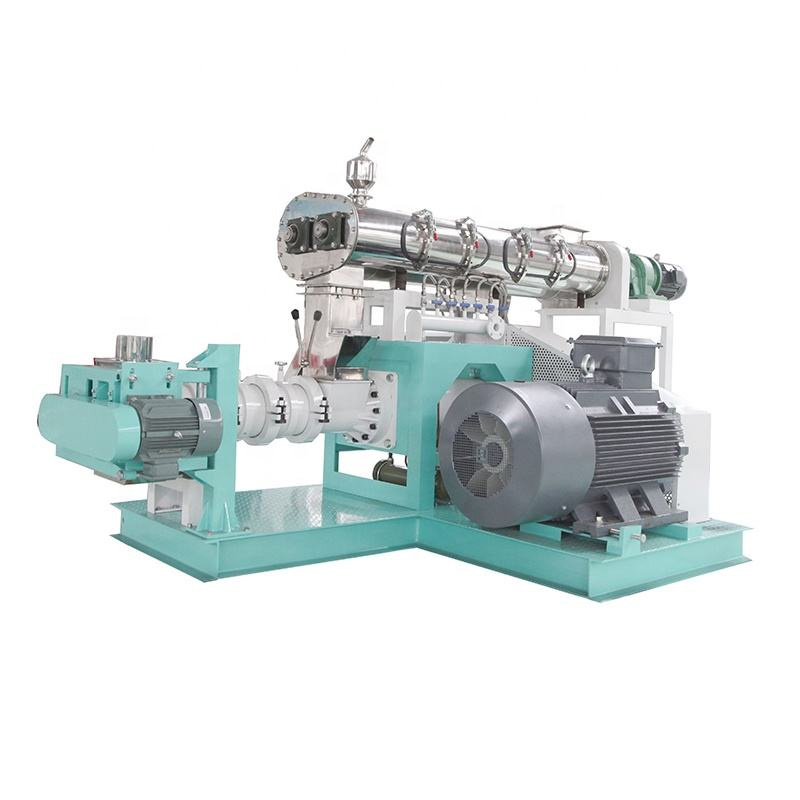

The 300–500kg/h breakfast cereal extruder is an industrial food processing machine designed for producing breakfast cereals and grain-based snack products. With a production capacity of 300 to 500 kilograms per hour, it supports continuous and efficient cereal manufacturing operations.
The equipment uses twin-screw extrusion technology to process grain flour into expanded cereal products through mixing, extrusion, forming, drying, and baking stages. Different cereal shapes and snack products can be produced by adjusting molds and processing parameters.
This machine is widely used in breakfast cereal factories, grain snack production plants, and food processing facilities that require reliable cereal and snack manufacturing equipment.
Technical Specifications：
|
Item
|
Parameter
|
|---|---|
|
Product Name
|
Corn Flake Maker (Grain Corn Flake/Grain Food Machine)
|
|
Key Selling Points
|
High Productivity
|
|
Control Type
|
Touchscreen
|
|
Heat Source
|
Electric, Steam, Gas
|
|
Special Features
|
Large Capacity, Programmable, Display Screen
|
|
Weight
|
1745kg
|
|
Voltage
|
220V/380V
|
|
Production Capacity
|
300-500 kg/h
|
|
Dimensions (L×W×H)
|
2300×1650×2100mm
|
|
Material
|
Stainless Steel, Iron
|
|
Motor Brand
|
Siemens, ABB, Or Others
|
|
Raw Material
|
Grain Powder
|
Working principle：
Grain-based raw materials such as corn flour, wheat flour, or other cereal powders are first mixed and fed into the extrusion system. Inside the twin-screw extruder, heat, pressure, and mechanical shear cook and plasticize the material. The processed material is then pushed through a die to form specific shapes. After extrusion, the products pass through drying and baking processes, where they expand and develop a crispy structure suitable for breakfast cereal and snack products.
Main features：
-
Twin screw extrusion system provides stable material conveying, efficient mixing, and uniform heating during cereal production.
-
Modular screw and barrel design allows flexible processing of different grain raw materials and cereal product types.
-
High torque gearbox design improves machine stability and ensures reliable long-term industrial operation.
-
User-friendly control interface simplifies operation and improves production efficiency during cereal manufacturing.
-
Optimized machine structure reduces cleaning time and maintenance requirements in continuous production environments.
Application scenarios：
-
Breakfast cereal production lines
-
Corn flakes and grain cereal manufacturing plants
-
Industrial cereal snack food processing factories
-
Grain-based puffed snack production facilities
-
Food extrusion production lines for cereal products
FAQ
Q1: What raw materials can this breakfast cereal extruder use?
A: It can use corn, rice, wheat, oat and other grains to make breakfast cereals and snacks.
A: It can use corn, rice, wheat, oat and other grains to make breakfast cereals and snacks.
Q2: Can the output be adjusted between 300-500kg/h?
A: Yes, you can adjust screw speed, feeding rate and temperature to control output freely.
A: Yes, you can adjust screw speed, feeding rate and temperature to control output freely.
Q3: Is this machine suitable for industrial snack production?
A: Yes, it has heavy-duty structure and stable performance for long-time running.
A: Yes, it has heavy-duty structure and stable performance for long-time running.
Q4: Are food-contact parts made of 304 stainless steel?
A: Yes, all food-contact parts are 304 food-grade stainless steel, safe and easy to clean.
A: Yes, all food-contact parts are 304 food-grade stainless steel, safe and easy to clean.
Contact us to get your quotation now.
Get in touch with our engineering team.
Download full specification PDF.
