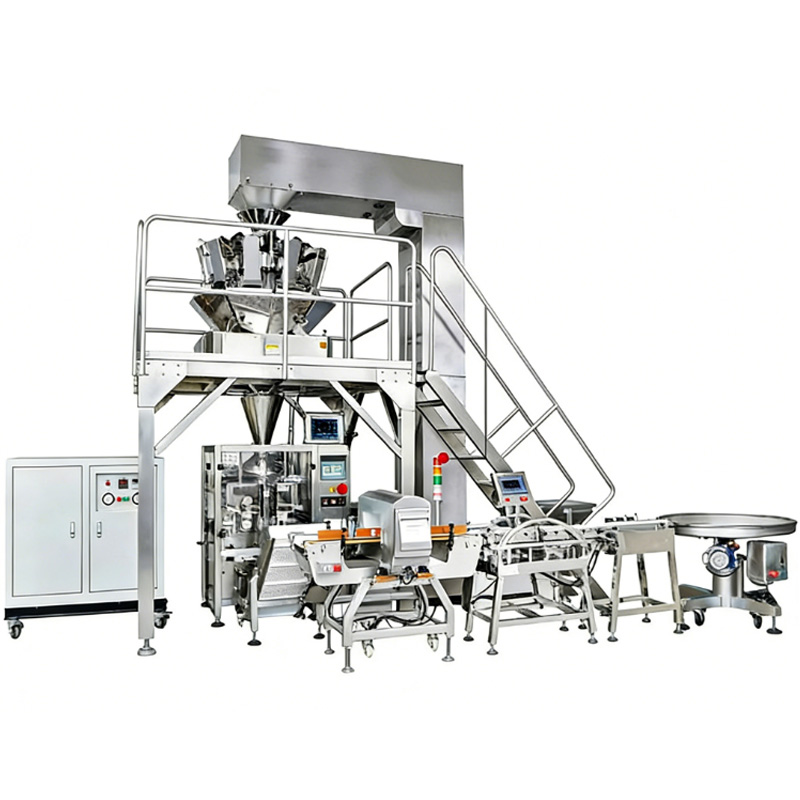

30 pcs/min Automatic Multihead Weigher Packing Machine for Meat

Weigher Packing Machine Product Introduction

The 30 pcs/min Automatic Multihead Weigher Packing Machine is designed for efficient, high-speed packaging of fresh meat, chicken, shrimp, fish fillets, and other seafood products. It combines precise multihead weighing with automatic bag feeding, accurate portion control, and servo-driven sealing to ensure consistent, uniform packs every time. The machine features a hygienic stainless steel construction suitable for food environments, adjustable weighing speed, PLC touchscreen control, and easy integration into existing production lines. Its modular design allows for fast cleaning and maintenance, while vibration-assisted product feeding minimizes product damage. Ideal for meat processing plants, seafood factories, and large-scale frozen food packaging operations, this machine enhances productivity, reduces labor costs, and maintains product quality throughout the packaging process.

Working Principle：

The machine uses a multihead weighing system to automatically portion fresh meat, poultry, or seafood into precise weights. Products are fed onto vibratory feeding hoppers, where sensors measure each portion. The PLC control system calculates the optimal combination of portions to reach the target weight, then the machine drops the portions into pre-opened packaging bags. The bag is sealed automatically, and the process repeats continuously. The system integrates vibration-assisted feeding, servo-driven portioning, and automated bag handling for high-speed, accurate, and hygienic packaging.

Technical Specifications：

Voltage	AC220V, 50/60Hz, three phase
Power	1.5KW
Air Pressure	0.6–0.8MPa
Capping Speed	30 pcs/min
Material	304/316 Stainless Steel
Suitable Product	Fresh Meat, Poultry, Seafood
Hopper Capacity	5–10kg per head
Weighing Accuracy	±1–3g
Number of Heads	10–14 heads
Bag Feeding	Automatic or Manual
Bag Type	Plastic, PE, PP, or Custom
Program Control	PLC + Touchscreen
Conveyor Height	800 ± 25mm, adjustable
Machine Dimension	2800×1200×1700mm (L×W×H)
Machine Weight	About 500kg

Main features：

• High-Speed Multihead Weighing – Accurate 30 pcs/min weighing for fresh meat, chicken, seafood, and poultry.
• Automatic Bag Feeding – Minimizes manual labor and improves overall packaging efficiency.
• Hygienic Stainless Steel Construction – Food-grade 304/316 SUS, easy to clean and maintain for sanitary environments.
• PLC Touchscreen Control – User-friendly interface for adjusting speed, weight, portioning, and operational parameters.
• Modular Design with Easy Maintenance – Quick cleaning, easy part replacement, vibration-assisted feeding reduces product damage.

Application Scenarios：

• Meat Processing Plants – Ideal for portioning and packing beef, pork, and chicken efficiently.
• Seafood Factories – Suitable for shrimp, fish fillets, squid, and other seafood packaging.
• Frozen Food Packaging – High-speed portioning and bagging for frozen meat and seafood products.
• Ready-to-Cook Meal Production – Pre-portioned ingredients for meal kits or food service operations.
• Large-Scale Retail & Distribution – Efficient packaging for retail-ready fresh or frozen products.



FAQ

• Q: What is the production speed?
  A: 30 pcs/min, adjustable according to product and bag size.
• Q: Which products can it handle?
  A: Fresh meat, poultry, shrimp, fish fillets, and other seafood.
• Q: Is it suitable for frozen products?
  A: Yes, it works efficiently with both fresh and frozen items.
• Q: What types of bags can be used?
  A: Plastic bags, PE bags, laminated bags, and custom packaging films.
• Q: How is the machine controlled?
  A: Through PLC touchscreen for precise control of weight, speed, and portioning.
