30 m/min Automatic Curved Roller Conveyor for Parcel Lines

Product introduction of Automatic Curved Roller Conveyor

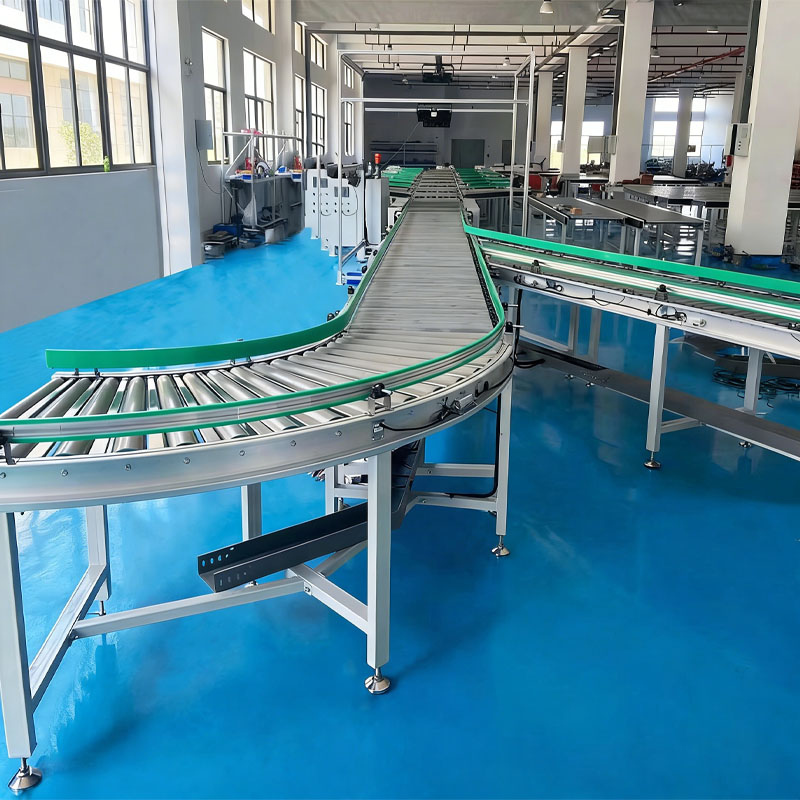

The Automatic Curved Roller Conveyor is a specialized material handling system for smoothly transferring products along curves and turns in industrial production or logistics lines. Built with oil-resistant, anti-static, and corrosion-resistant cone rollers, it ensures stable, low-vibration, and low-noise conveying without damaging goods. Modular design allows flexible layouts and easy assembly, suitable for horizontal, tilted, or turning transport. Single- or double-chain drives enable customization of conveying speed and load. It is widely used in logistics centers, printing and packaging plants, tire factories, tobacco processing, and express distribution industries, optimizing efficiency and reducing manual handling.

Working Principle

Products are carried along a curved path using cone rollers, which are driven by single or double chain systems. Sensors and modular chains ensure smooth transfer with no relative motion between the product and conveyor, reducing vibration and potential damage. The modular design allows easy adjustment of the curve angle and layout to match production or logistics line requirements.

Product Parameter Table

Valid Roller Width(mm)	300, 350, 400, 500, 600, 1000
Roller Tube Material	Galvanized CA,  Stainless Steel
Sprocket Material	Carbon Steel
Frame Material	Carbon Steel Painted
Conveyor Width(mm)	400 ~ 1200  ( Other to be Customized)
Conveyor Height(mm)	≥500  (  Other to be Customized)
Turning Radius r(mm)	400, 600, 800
Speed(m/min)	≤ 30

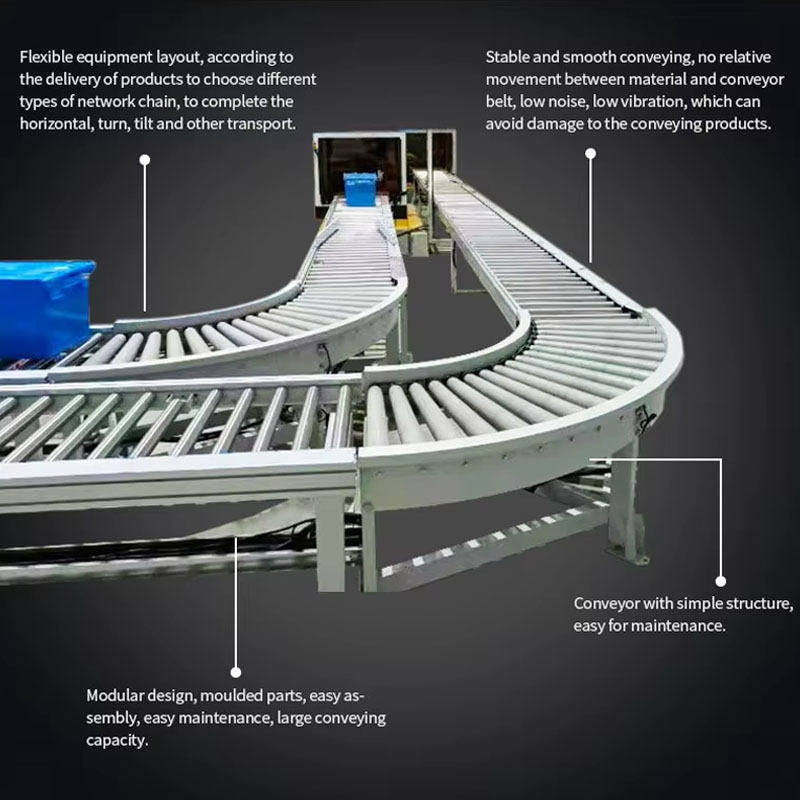

Main Features

• Oil-resistant and anti-static cone rollers provide smooth and safe handling for all types of products.

• Corrosion-resistant materials ensure long-lasting operation even in humid or industrial environments.

• Stable and low-noise design prevents vibration and product damage during curved or turning transport.

• Modular design with molded parts enables easy assembly, maintenance, and rapid layout adjustments.

• Supports flexible equipment layouts, including horizontal, turning, and tilted conveying operations.

• Single-chain or double-chain drive options allow customization for different speeds and capacities.

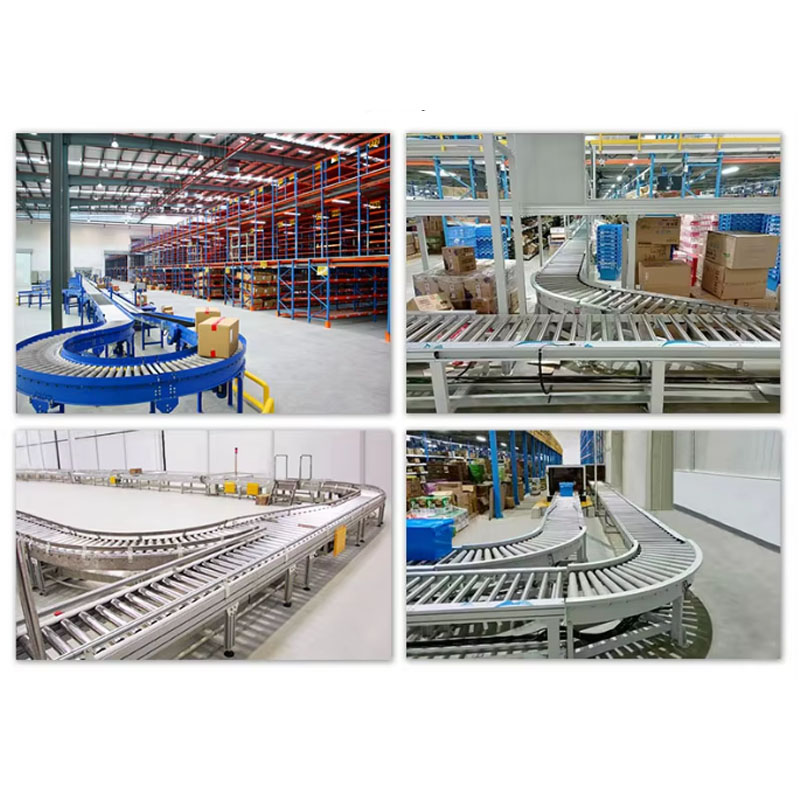

Application Scenarios

• Logistics centers for smooth transfer of parcels and packages along curved lines.

• Printing and packaging plants for moving paper, cartons, or printed products.

• Tire manufacturing for transporting tires safely along turning sections.

• Tobacco processing facilities for conveying cartons or packed goods efficiently.

• Express and courier industries for handling parcels through turning conveyor lines.

FAQ

Q1: What types of products can this conveyor handle?
A: It handles cartons, parcels, tires, paper products, tobacco packages, and similar goods.

Q2: What are the available turning angles?
A: Standard options are 45°, 90°, 180°, and custom angles according to production needs.

Q3: How is stability and low vibration achieved?
A: Cone rollers, modular chains, and anti-static, oil-resistant materials ensure smooth, stable, and low-noise transport.

Q4: Can the layout be customized?
A: Yes, modular design allows flexible horizontal, tilted, and curved layouts.

Q5: Is maintenance complicated?
A: No, the simple structure, modular design, and molded parts allow easy assembly and maintenance.

Q6: What industries commonly use this conveyor?
A: Logistics, printing, tire manufacturing, tobacco processing, express delivery, and industrial production lines.
