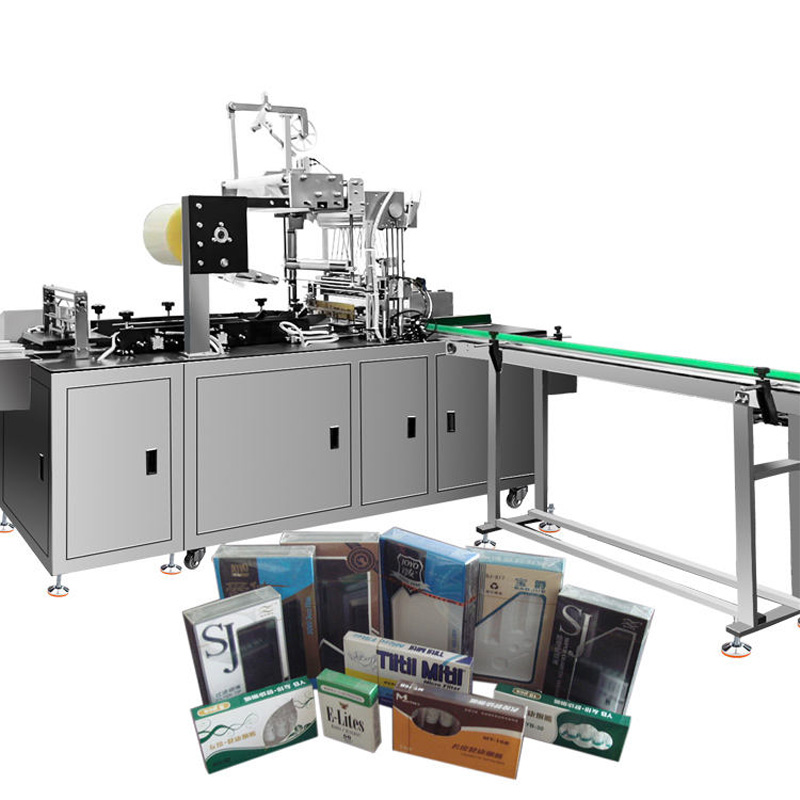

30–60 pcs/min Automatic Perfume Box Shrink Wrapping Machine

Shrink Wrapping Machine Product Introduction

This 30–60 pcs/min automatic perfume box shrink wrapping machine is designed for packaging perfume boxes and small gifts, widely used in cosmetics, perfume, tea, food, and premium gift industries. It employs advanced heat shrink film technology to tightly wrap boxes, enhancing product appearance while providing excellent protection and reducing damage during transport and handling. Precise temperature control ensures uniform shrinkage and secure sealing. The automatic conveyor system supports continuous production and accommodates different box sizes. Built with a durable structure, it operates smoothly and reliably, making it an ideal solution for efficient automated packaging.

Technical Specifications：

Voltage	220V / 380V, 50/60Hz
Power	2.5–3kW
Packing speed	30–60 pcs/min
Max packing size (L×W×H)	250×150×100mm
Min packing size (L×W×H)	80×40×20mm
Film type	PE, POF, PVC shrink film
Max film width	400mm
Heating power	1.5kW (adjustable)
Conveyor width	300mm
Air source	6–8kg/cm² compressed air
Machine dimensions (L×W×H)	1650×920×1400mm
Machine weight	420kg
Operating mode	Automatic / Continuous

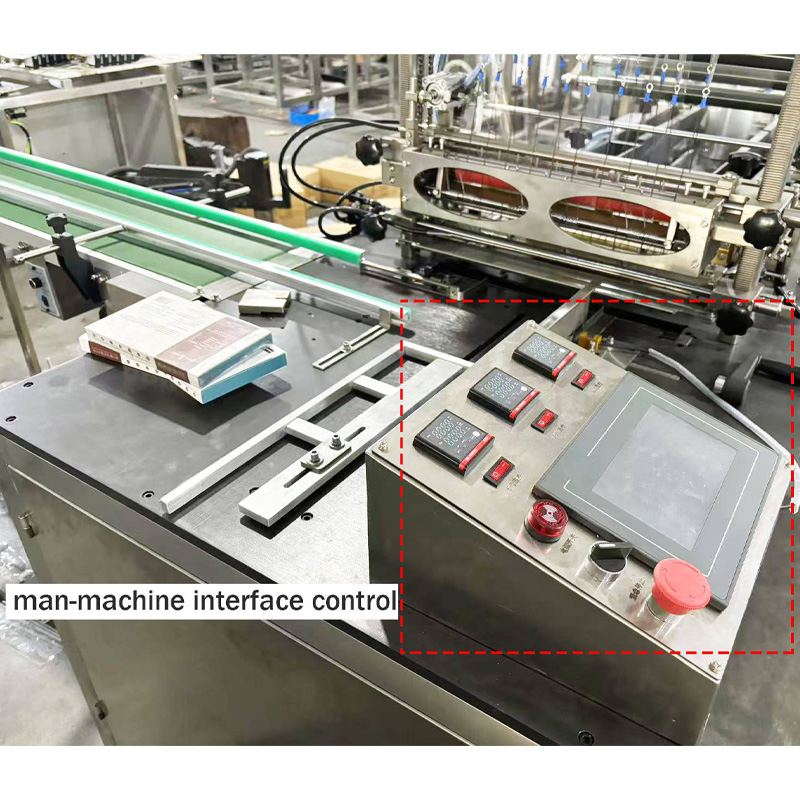

Control system	PLC with touch screen and temperature controller
Safety features	Emergency stop, overheat protection

Main features：

• Medium to high-speed output – 30–60 pcs/min for efficient production.
• Precise heat shrink control – Ensures uniform shrinkage and secure sealing.
• Automatic conveyor system – Supports continuous operation with minimal manual intervention.
• Wide box compatibility – Suitable for various perfume, cosmetic, tea, and gift box sizes.
• Durable industrial design – High-quality components for stable and long-term operation.

Application Scenarios：

• Perfume packaging – Bottles, gift sets, and boxed products.
• Cosmetic packaging – Skincare, makeup kits, and personal care products.
• Tea box packaging – Premium tea boxes and gift sets.
• Food packaging – Chocolates, confectionery, and specialty food items.
• Gift packaging – Small gift boxes, promotional items, and retail packaging.

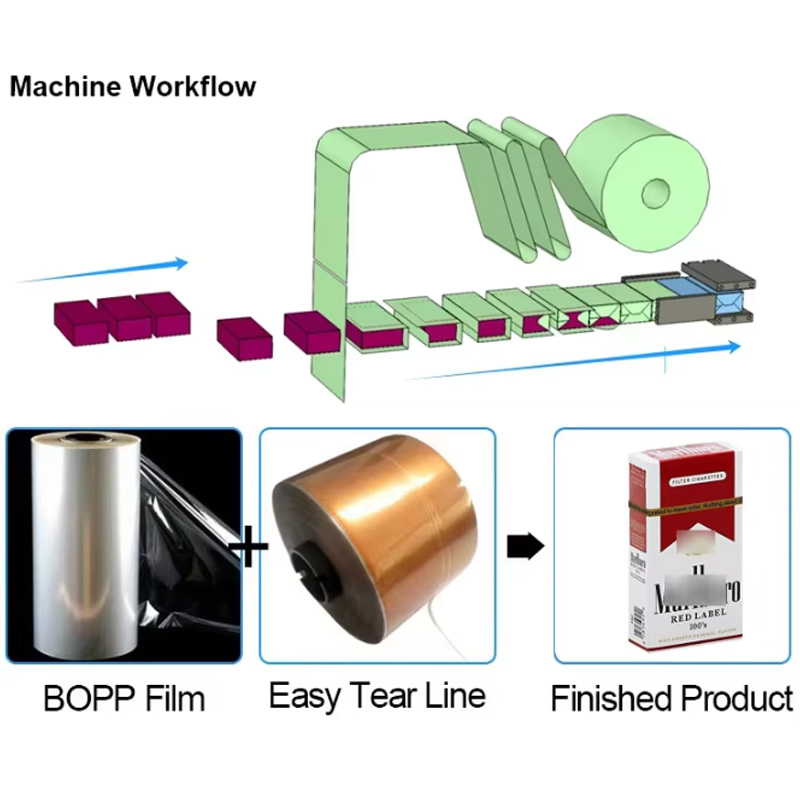

Machine Workflow & Material Introduction：

• Product Feeding: Manually or automatically feed the boxed products into the conveyor line.
• Film Wrapping: The BOPP film is unwound, formed, and wrapped around the products through a series of guide rollers and forming mechanisms.
• Sealing & Cutting: The wrapped products go through heat sealing and precise cutting to complete the primary packaging.
• Output: The finished packaged products are continuously outputted, realizing efficient and stable production.



FAQ

Q1: What products can this machine package?
A: Perfume boxes, cosmetics, tea boxes, food items, and small gift boxes.

Q2: What is the packaging speed?
A: 30–60 pcs per minute depending on box size and film type.

Q3: Which shrink films are supported?
A: PE, POF, and PVC shrink films are compatible.

Q4: Can it handle different box sizes?
A: Yes, adjustable settings allow packaging of various box dimensions.

Q5: Is it suitable for continuous production?
A: Yes, the automatic conveyor system supports stable and continuous operation.
