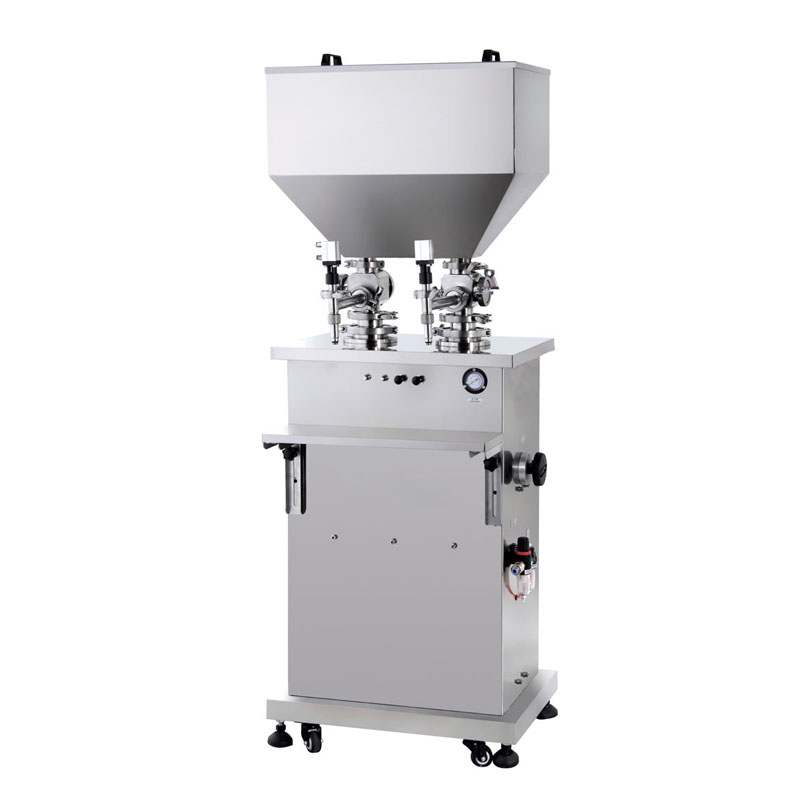

30–50 pcs/min Double Pistons Filling Machine for Cosmetic Paste

Product introduction of Double Pistons Filling Machine

The double pistons filling machine is a semi-automatic liquid and paste filling device, designed to accurately dispense materials into bottles, jars, or containers at 10–50 pcs/min depending on viscosity. Constructed from 316L and 304 stainless steel, it meets GMP and hygienic standards. The machine solves common production issues such as inconsistent filling, product dripping, and inefficient operation. Adjustable volume and speed, dual manual/automatic modes, and optional multi-head or explosion-proof configurations make it suitable for pharmaceutical, cosmetic, food, chemical, and pesticide manufacturers seeking precise, reliable, and flexible filling solutions.

Product Parameter Table

Filling Speed	30-50 pcs/min
Filling Nozzle	One Nozzle / Two Nozzle
Filling Volume	5-150 ml / 10-250 ml / 30-500 ml / 50-1000 ml / 250-2500 ml / 300-3000 ml / 500-5000 ml
Filling Accuracy	±0.5%
Air Pressure	0.4 MPa-0.6 MPa

Main Features

1. Stainless steel 316L/304 contact parts ensure hygienic operation and comply with GMP standards.

2. Dual pistons with fixed volume and push-pull rod design guarantee high filling precision.

3. Adjustable filling volume and speed allow handling of low-to-high viscosity products efficiently.

4. Manual foot pedal or automatic continuous mode provides flexible operation for different production needs.

5. Anti-drip nozzle and cylinder or mechanical valve design minimize waste and material contamination.

6. Modular clamp assembly enables quick disassembly, cleaning, and maintenance for small to medium-scale lines.

Application Scenarios

• Filling liquid disinfectants, oils, and medicinal syrups in pharmaceutical production lines.

• Packaging cosmetics, creams, and personal care products in jars and bottles.

• Filling food products such as sauces, syrups, and pastes with high precision.

• Handling pesticide, fertilizer, and chemical liquids requiring explosion-proof or hygienic operation.

• Small to medium-scale production lines in cosmetic, food, chemical, and pharmaceutical industries needing adjustable and precise filling solutions.

FAQ

Q1: What types of products can this machine fill?
A1: Liquids, creams, pastes, oils, disinfectants, sauces, syrups, and chemical solutions.

Q2: What is the production capacity?
A2: Typically 10–50 pcs/min depending on viscosity and container size.

Q3: Is the machine suitable for hazardous or explosive materials?
A3: Yes, the machine can be configured with explosion-proof components and compressed air operation.

Q4: How is filling precision ensured?
A4: Dual pistons, fixed volume measurement, and adjustable push-pull rods maintain ≤±0.5% error.

Q5: Can the machine operate in manual mode?
A5: Yes, manual operation is controlled by a foot pedal, and automatic mode runs continuously.

Q6: Is cleaning and maintenance convenient?
A6: Yes, modular clamp assembly allows quick disassembly, cleaning, and maintenance for hygienic production.
