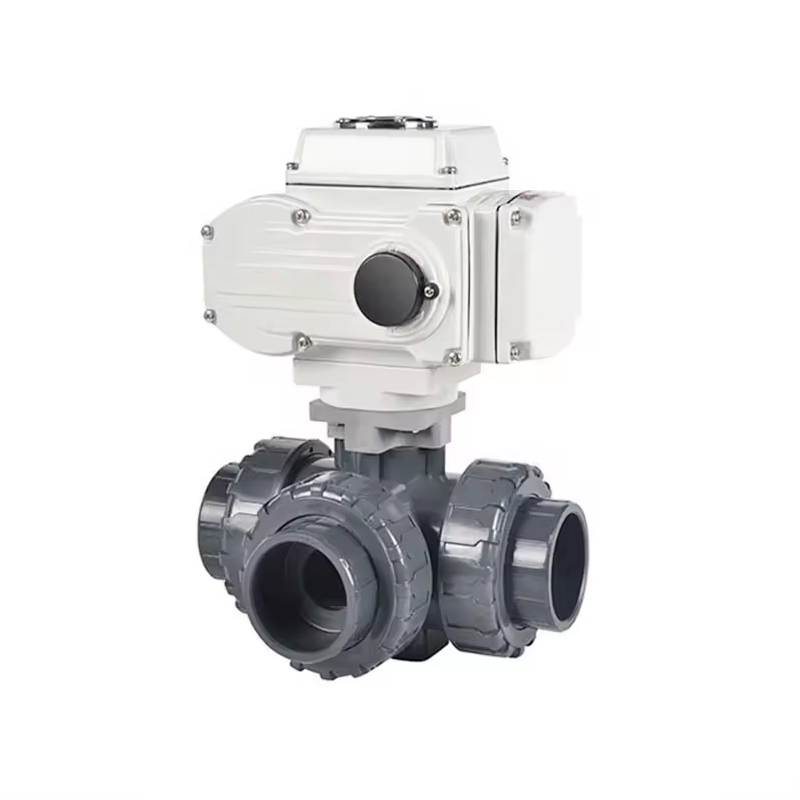

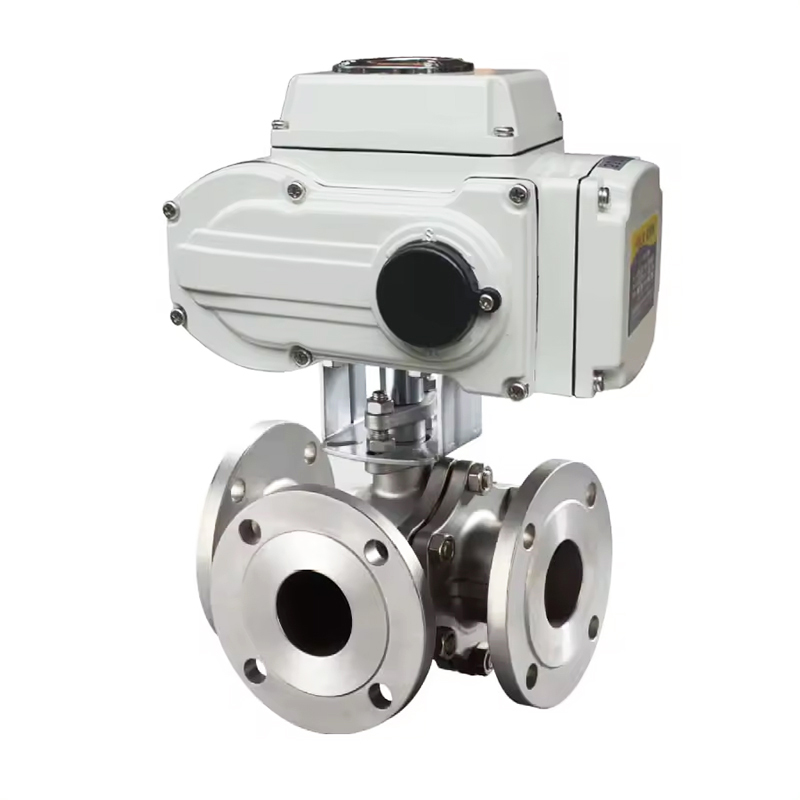

3 Way Electric Motorized Ball Valve Good Quality DN150~DN100
Features
1. Opeating temperature range: -40°C-+95°C.
2. With excellent strength and toughness.
3. With excellent chemical resistance capabilities.
4. Retardant properties is the self-extinguishing.
5. Low thermal conductivity, about 1/200 of the steel.
6. The content of heavy ion in the medium up to the ultrapure water standards.
7. Health indicators in line with national health standards.
8. Clean and smooth of the Tube wall, which can generate a smaller friction and adhesion when transferring fluid.
9. Light weight, the equivalent of 1/5 of steel, 1/6 of Brass.
10. Easy to install. can be connected by flange, double union etc.
11. Excellent anti-aging and UV resistance, so that there is a great extension of the normal useful life than other piping systems.
$170.00
Compare3 Way Electric Motorized Ball Valve
|
Size Range
|
1/2″~4″, DN150~DN100
|
||
|
Operating Pressure
|
1.6MPa
|
||
|
Control Mode
|
On Off Type / Modulating Type
|
||
|
Optional Voltage
|
DC12~24V (±10%), AC110-220V, 50/60Hz
|
||
|
Body Material
|
UPVC, PPH, CPVC, PVDF, PP
|
||
|
Bal Material
|
UPVC, PPH, CPVC, PVDF, PP
|
||
|
Sealing Material
|
EPDM, PTFE, PPL
|
||
|
Threaded Connection
|
Double union, flange
|
||
|
Applicable Media
|
Control of Water, Air, Gas, Oil, Liquid, Steam
|
||
|
Optional Accessories
|
Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
|
||
|
Application
|
Food & Beverage, Water & Wastewater, Ultra Pure Water,Desalination,Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
|
||
Electric plastic true union valve is union connection, and it is characterized by compact structure, strong corrosion resistance, easy installation, easy maintenance. The valve body is hygienic, non-poisonous and non harmful with light weight. It is widely used in water supply industry, such as purifier water system, drinking water system, drainage system, sewage system, salt water system, chemical solution system.
Features
1. Opeating temperature range: -40°C-+95°C.
2. With excellent strength and toughness.
3. With excellent chemical resistance capabilities.
4. Retardant properties is the self-extinguishing.
5. Low thermal conductivity, about 1/200 of the steel.
6. The content of heavy ion in the medium up to the ultrapure water standards.
7. Health indicators in line with national health standards.
8. Clean and smooth of the Tube wall, which can generate a smaller friction and adhesion when transferring fluid.
9. Light weight, the equivalent of 1/5 of steel, 1/6 of Brass.
10. Easy to install. can be connected by flange, double union etc.
11. Excellent anti-aging and UV resistance, so that there is a great extension of the normal useful life than other piping systems.
There are no reviews yet.
