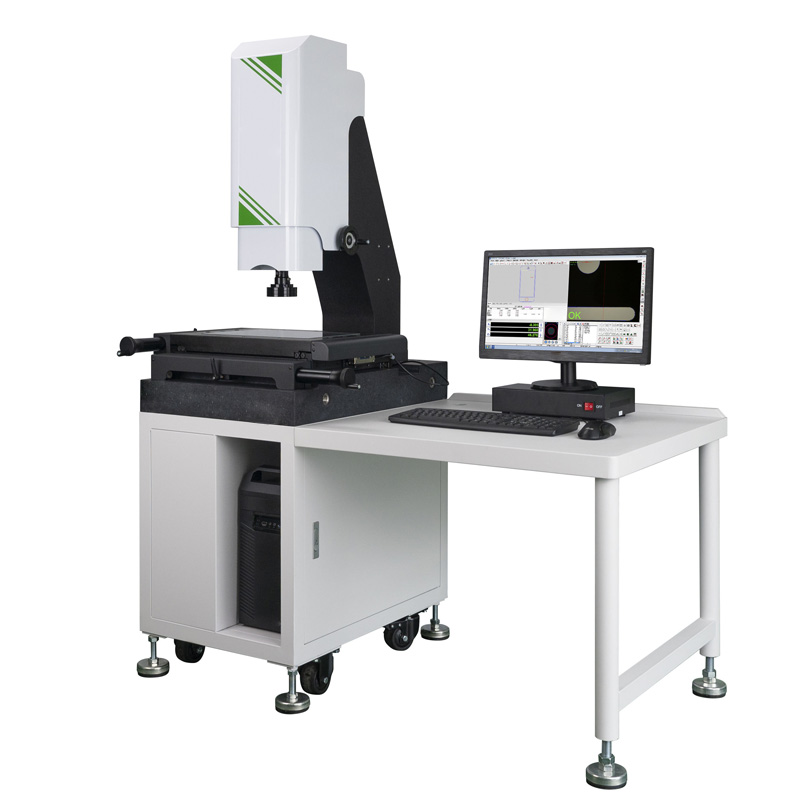

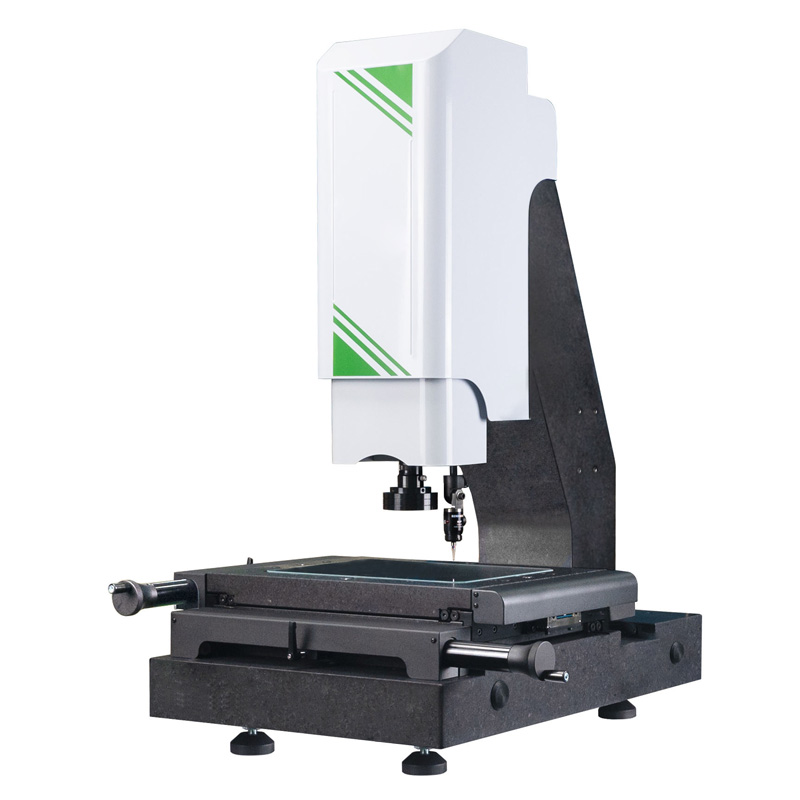

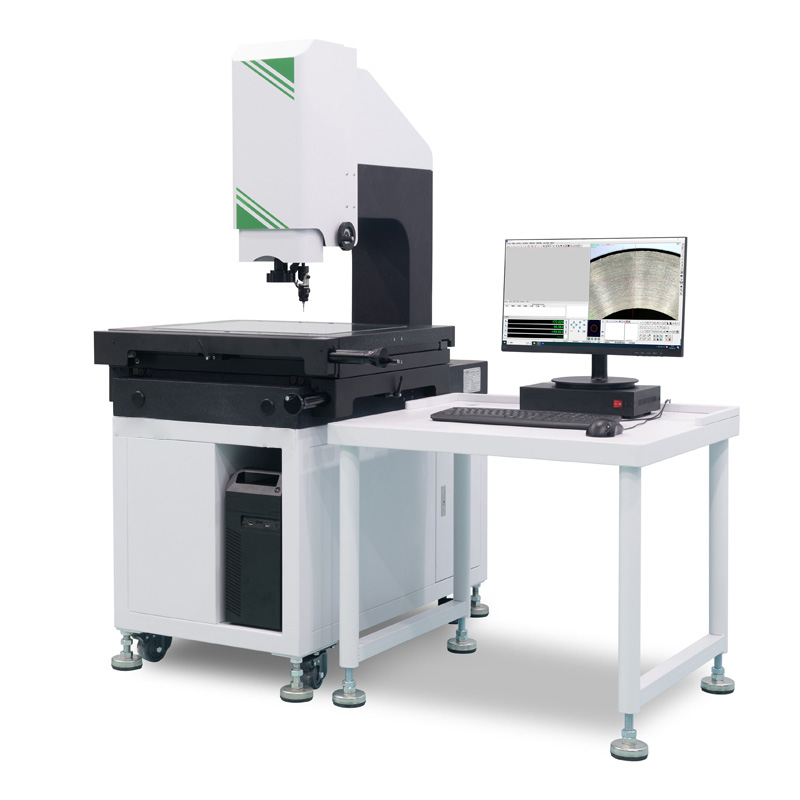

2D/3D Dimensional Measuring Tool for Electronics Non-Contact
This high-performance vision measurement instrument is a professional dimensional measuring tool designed for precise non-contact inspection of delicate electronics and micro-machined components. It functions as a multi-functional testing station that captures high-resolution 2D images and 3D geometric data to verify complex surface features without touching the workpiece.
$21.00
CompareProduct Introduction for 2D/3D Dimensional Measuring Tool
This high-performance vision measurement instrument is a professional dimensional measuring tool designed for precise non-contact inspection of delicate electronics and micro-machined components. It functions as a multi-functional testing station that captures high-resolution 2D images and 3D geometric data to verify complex surface features without touching the workpiece.
Parameter Table
| Applications | High-precision dimensional measurement |
| Stroke (mm) | 200x100x200 mm |
| Table Size (mm) | 250×150 mm |
| Instrument Accuracy | X, Y (2.5+L/200) micrometers |
| Product Weight | 280 kg |
Application Scenario
- Micro-Electronic Circuit Testing
- Semiconductor Wafer Dimensional Audit
- Fragile Plastic Component Inspection
- Precision Watch and Gear Measuring
Contact us to get your quotation now.
