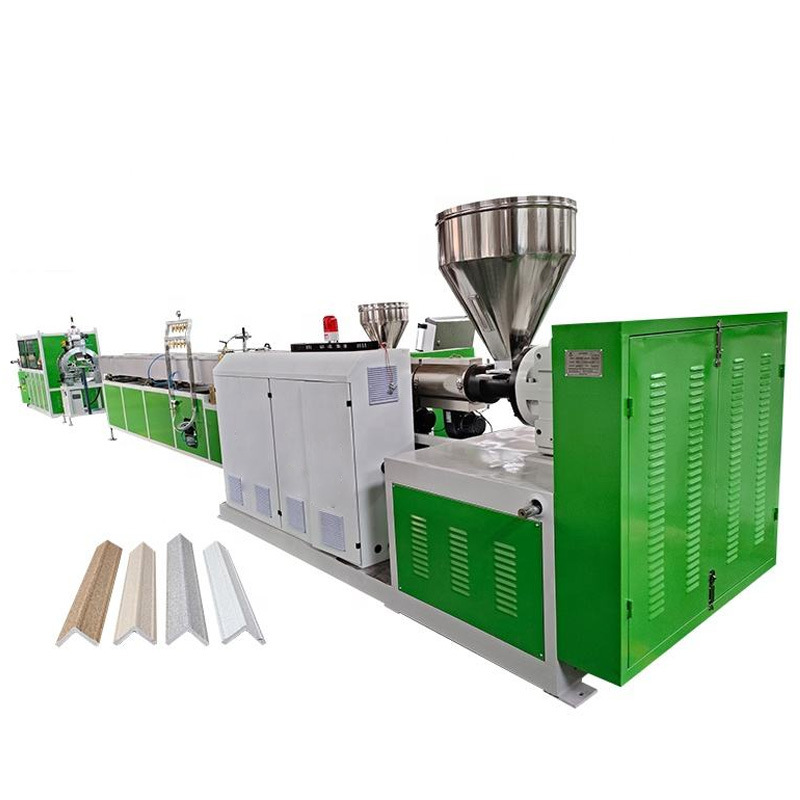

250 kg/h Foam Picture Frame Extruder for Architectural Mold

Extruder for Architectural Mold Product Introduction

The 250 kg/h Foam Picture Frame Extruder is designed for continuous production of high-quality PS foam picture frames and architectural panels. It is ideal for decorative moldings, soundproofing panels, and thermal insulation boards. The machine utilizes an advanced screw and barrel system, multiple heating zones, and a PLC-controlled interface for precise extrusion. With adjustable screw speed and die configuration, it ensures consistent density, thickness, and surface finish for all products.

Working Principle：

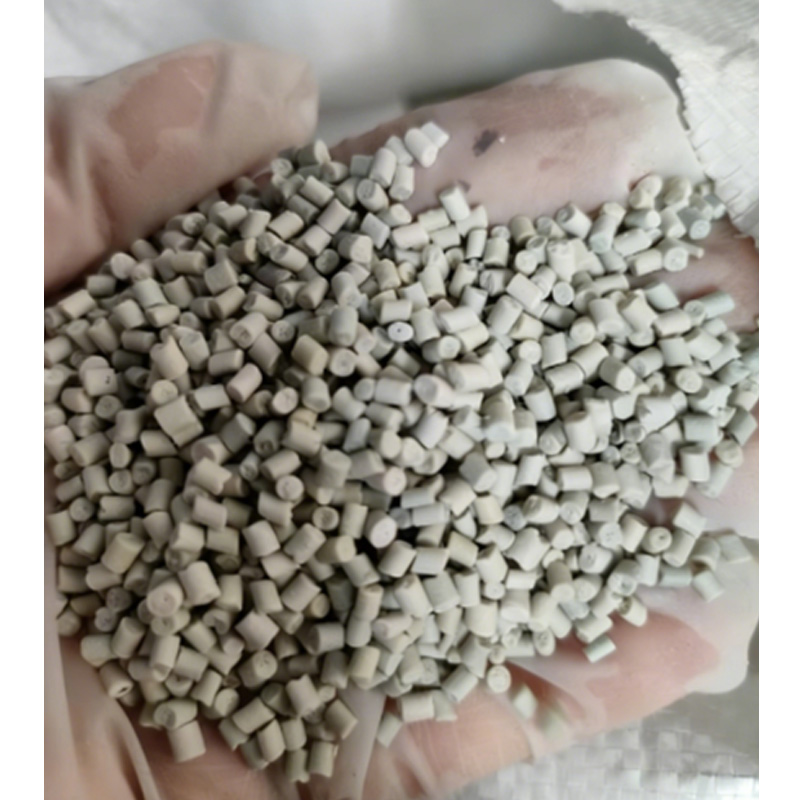

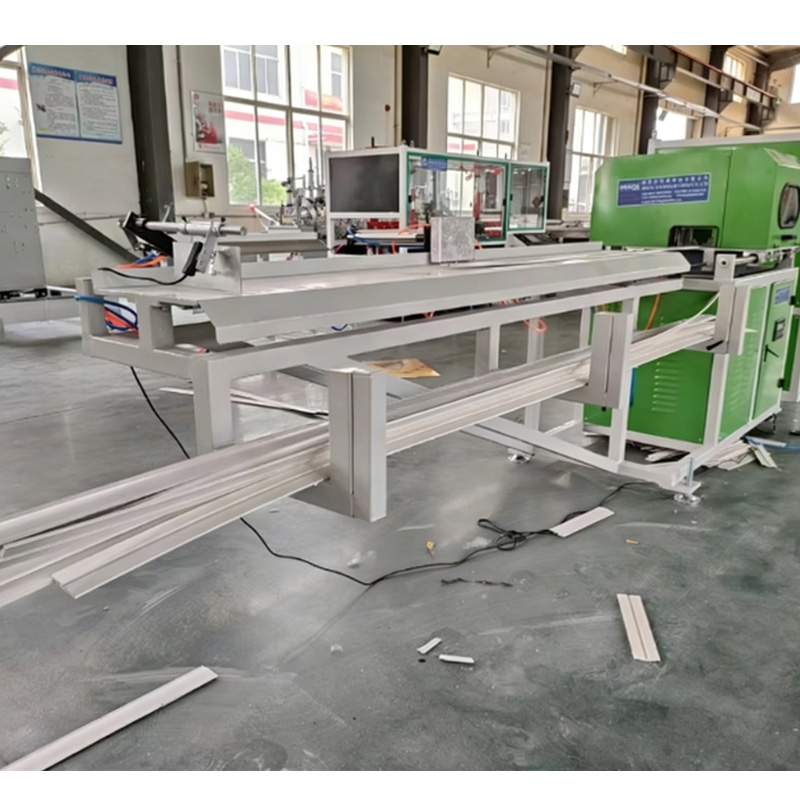

Raw PS foam material is fed into the extruder’s hopper, conveyed through the screw, and melted under controlled temperature and pressure. The molten foam is forced through a customizable die to form picture frames or panels. The extruded product is then cooled, cut, and shaped according to size requirements. PLC control ensures stable output, accurate dimensions, and consistent density.

Technical Specifications：

Output Capacity	250 kg/h
Screw Diameter	60 mm
Screw L/D Ratio	24:1
Screw Speed	50–200 rpm
Number Of Heating Zones	3
Barrel Temperature Range	150–230 °c
Die Type	Customizable For Frames And Panels
Max Panel Width	300 mm
Max Panel Thickness	50 mm
Power Supply	AC 380 V, 50 Hz
Machine Weight	2.5 ton

Main features：

• High Output Capacity (250 kg/h) – Suitable for small to medium-scale production lines.
• Advanced Screw & Barrel Design – Ensures uniform melting and consistent foam quality.
• PLC-Controlled System – Easy operation and precise parameter adjustment.
• Customizable Die & Cutting – Supports various panel sizes and picture frame shapes.
• Robust & Durable Build – Heavy-duty components for long-term industrial use.

Application Scenarios：

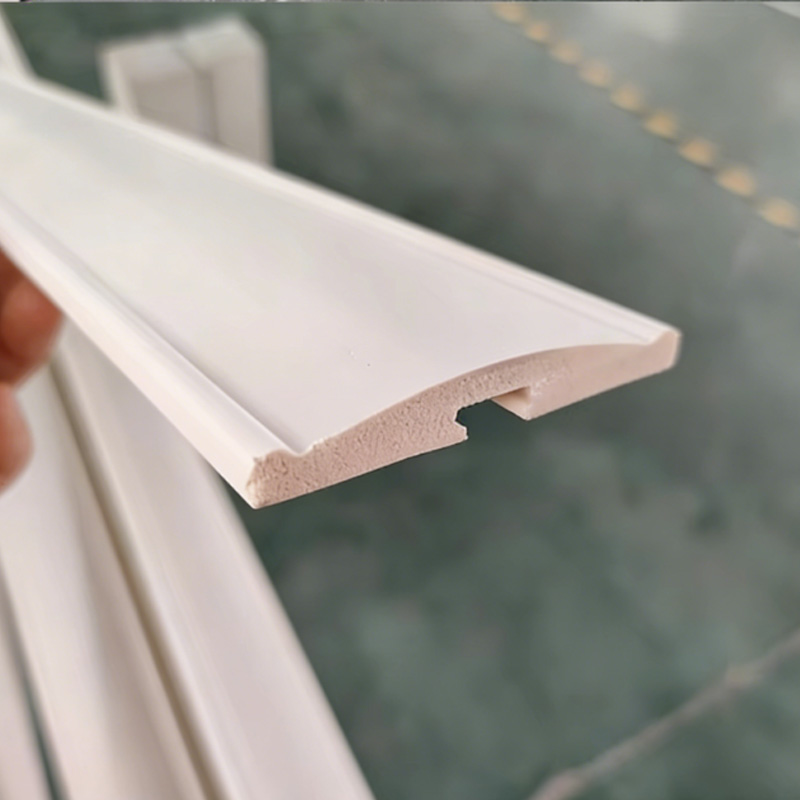

• Production of PS foam picture frames for home and office decoration.
• Manufacturing architectural moldings for interior and exterior designs.
• Fabrication of thermal insulation panels for buildings.
• Creation of soundproofing panels for industrial or commercial use.
• Production of decorative foam panels for walls and ceilings.

FAQ

• What materials can this extruder process?
  PS foam suitable for panels and picture frames.
• What is the maximum production capacity?
  250 kg/h depending on formula and settings.
• Can the die be customized?
  Yes, for different panel shapes and frame profiles.
• Is the machine suitable for soundproofing panels?
  Yes, it can produce panels with controlled density for acoustic insulation.
• How is the temperature controlled?
  Multiple heating zones with precise PLC control.
