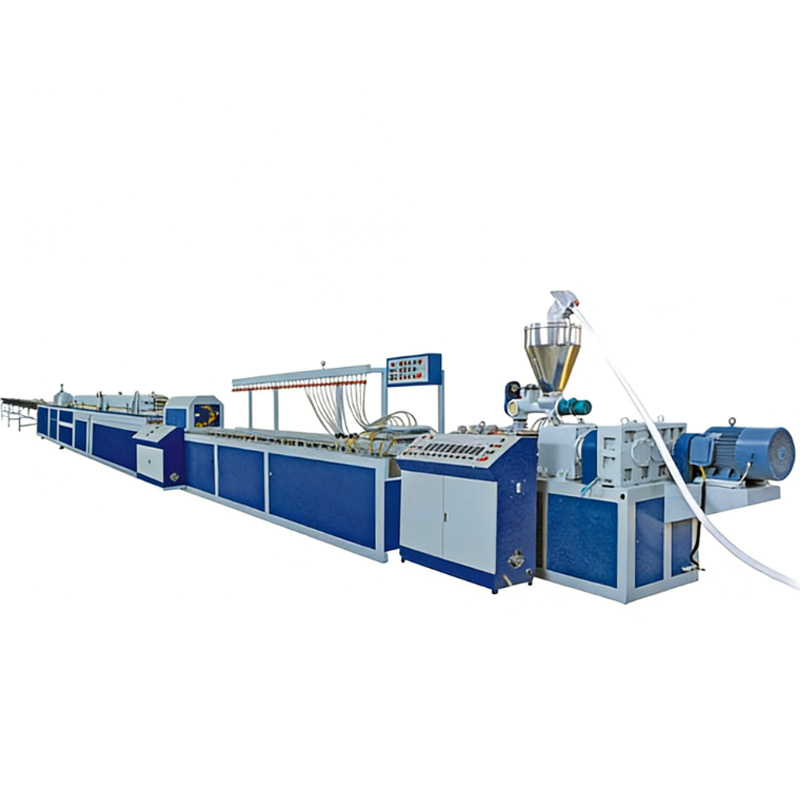

200kg/h Plastic Door Window Frame Profile Extrusion Machine

Frame Profile Extrusion Machine Product Introduction

The 200kg/h Plastic Door Window Frame Profile Extrusion Machine provides a complete solution for manufacturing door and window plastic profiles. Equipped with a high-performance single or twin screw extruder, it allows precise control of melting, plasticizing, and flow, producing uniform profiles with excellent surface finish.

The machine is suitable for PVC, PP, PE, and ABS, with a modular extrusion head design for various profile shapes, automatic haul-off and cutting units, and a PLC system for integrated process control. It is widely applied in residential and commercial door/window production, industrial panels, and decorative frames.

Working Principle：

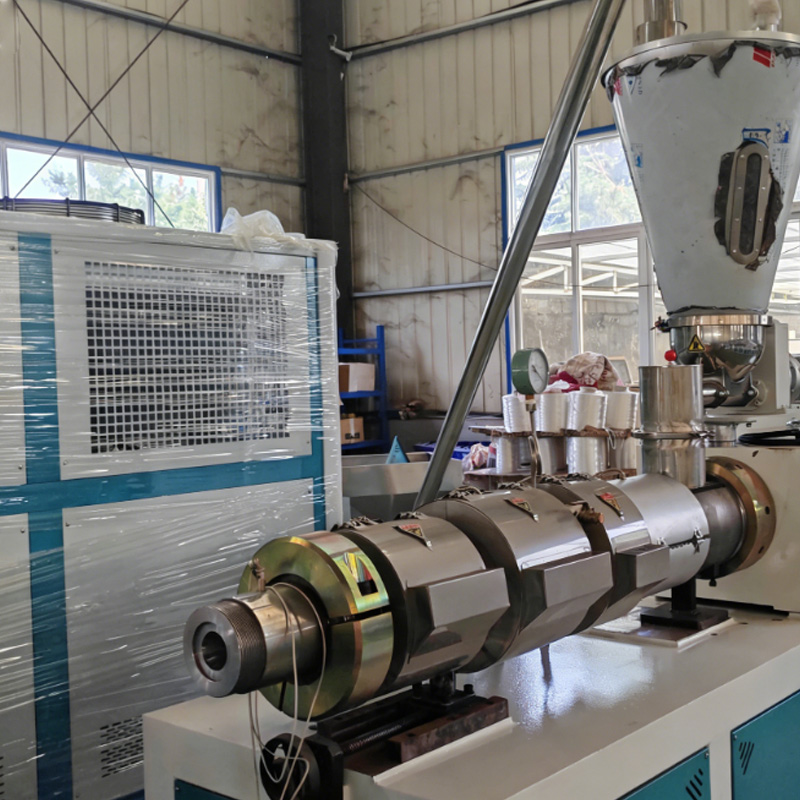

Raw plastic materials are fed into the extruder hopper, where they are melted and homogenized by the rotating screw. The molten material is pushed through a profile die to form the desired door/window cross-section. The extruded profile passes through a calibrated cooling and haul-off system to solidify and stabilize its shape. Finally, the profile is cut to length by an automatic saw. PLC controls synchronize screw speed, temperature, and haul-off speed for consistent quality.



Technical Specifications：

Production capacity	200 kg/h
Extruder type	Twin screw co-rotating
Screw diameter	55 mm × 55 mm
Screw L/D ratio	33:1
Main motor power	18.5 kW × 2
Die width	400–600 mm adjustable
Temperature control zones	10 independent zones

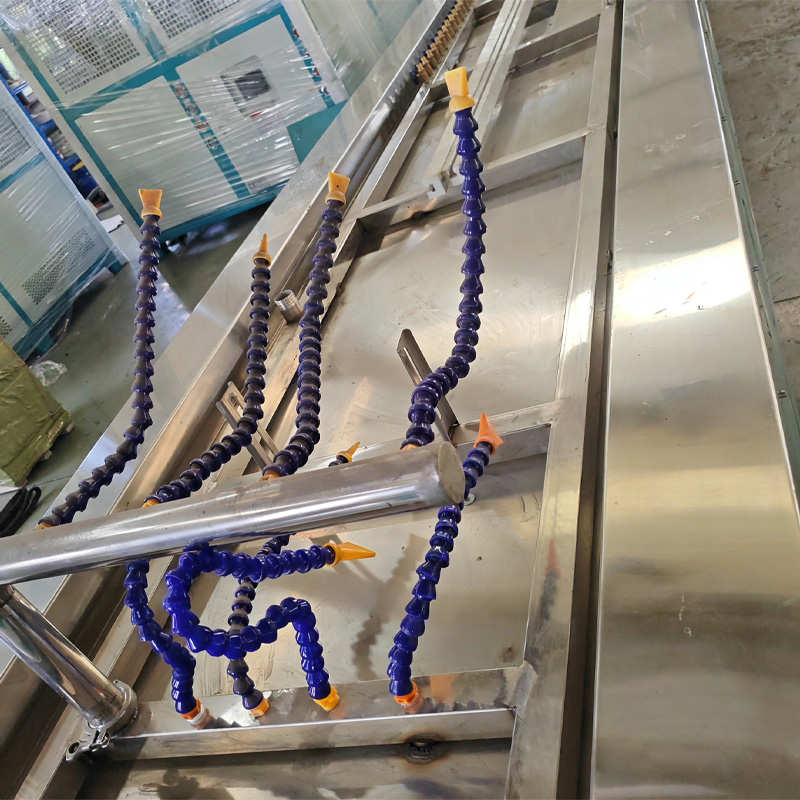

Cooling system	Water + air calibrated cooling
Haul-off speed	0–12 m/min adjustable
Cutting type	Automatic flying saw
Total installed power	45 kW

Main features：

• High efficiency screw system – Ensures stable melting and extrusion.
• Modular extrusion head – Supports various profile shapes.
• Precision temperature control – Guarantees uniform material flow.
• Automatic haul-off and cutting – Reduces manual labor and improves accuracy.
• PLC integrated control – Synchronizes extrusion, cooling, and cutting processes.

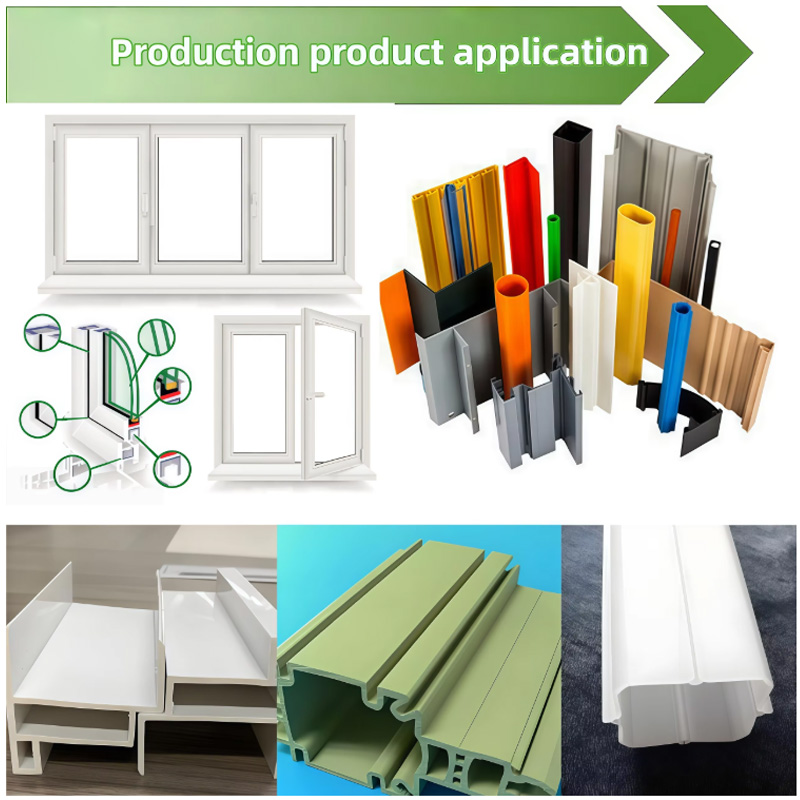

Application Scenarios：

• Residential and commercial door/window profiles – High-quality construction materials.
• Industrial panel production – Durable and weather-resistant profiles.
• Decorative frame manufacturing – Smooth, precise plastic profiles.
• PVC/PP/PE/ABS material shaping – Multi-material extrusion capability.
• Furniture and interior fittings – Structural and decorative applications.

FAQ

• Q: What materials are compatible with this machine?
  A: PVC, PP, PE, and ABS.
• Q: Can it produce different profile shapes?
  A: Yes, modular extrusion heads allow customization.
• Q: Is the cutting system automatic?
  A: Yes, profiles are cut automatically to length.
• Q: How is profile thickness controlled?
  A: Through screw speed, die design, and haul-off control.
• Q: Can it run continuously for long production?
  A: Yes, it is designed for stable, long-duration operation.
