2000LPH RO UF Water Treatment System for Well Water PLC

Product Introduction for RO UF Water Treatment System

The 2000LPH RO+UF water treatment system is an integrated purification solution combining ultrafiltration and reverse osmosis technologies. With a capacity of 2000 liters per hour, it is constructed using stainless steel and high-quality filtration components to ensure durability and stable operation.

This system effectively removes suspended solids, bacteria, dissolved salts, and impurities, producing low-conductivity purified water. It is suitable for treating well water and other raw water sources requiring high purification standards. Widely used in industrial processing, commercial water supply, and environmental applications, the system provides efficient, automated water treatment with reliable performance and consistent output quality.

Technical Specifications：

Item	Parameter
Product Name	Reverse osmosis ultrafiltration integrated machine
Raw Water Turbidity	3
Raw Water Conductivity	400
Operating Temperature	25 ℃
Material	PVC/304 Stainless steel
Raw Water pH Value	6.5-8
Salt Rejection Rate	99.2%
Outlet Water Conductivity	≤10
Filter Media	RO+UF
Application	Hospital/School/Mine/Industry/Commerce
Processing Technology	Reverse osmosis system, softening, seawater desalination, filtration, ultrafiltration
Productivity	2000 L/h
Power (W)	1 kW
Voltage	220 V, 380 V
Weight (KG)	1500 kg
Dimensions (L×W×H)	2.3×1×1.75 m

Working principle：

Raw water first passes through ultrafiltration membranes to remove suspended solids, bacteria, and large particles. It then enters the reverse osmosis membrane system, where high pressure forces water through semi-permeable membranes, removing dissolved salts, ions, and microscopic impurities. The purified water is collected while concentrated waste is discharged, ensuring high-quality output.

Main features：

• Integrated ultrafiltration and reverse osmosis system ensures multi-stage deep purification and stable water quality

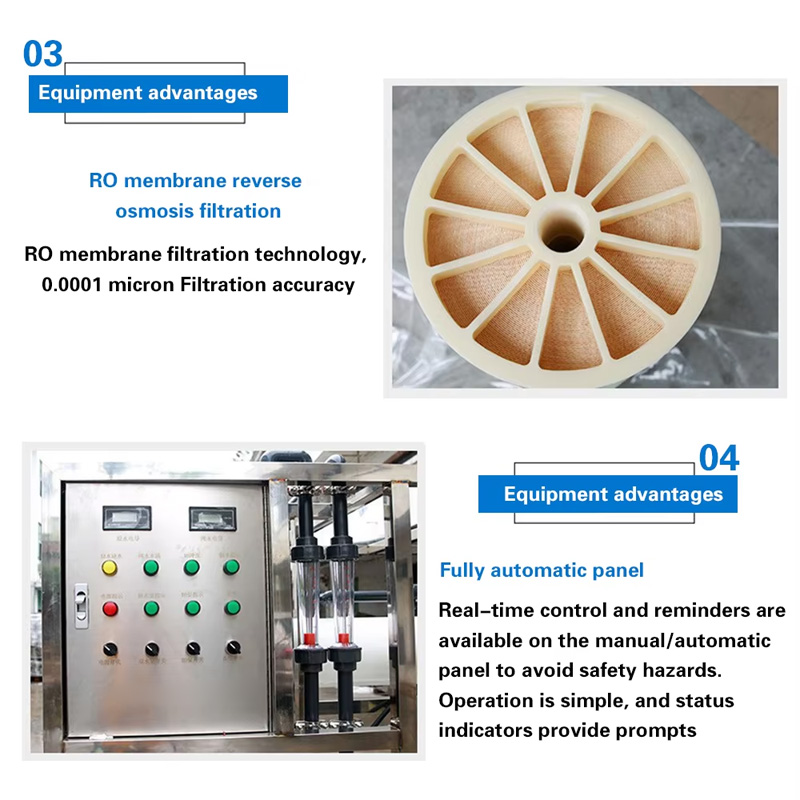

• PLC control panel provides automated operation, real-time monitoring, and simplified system management

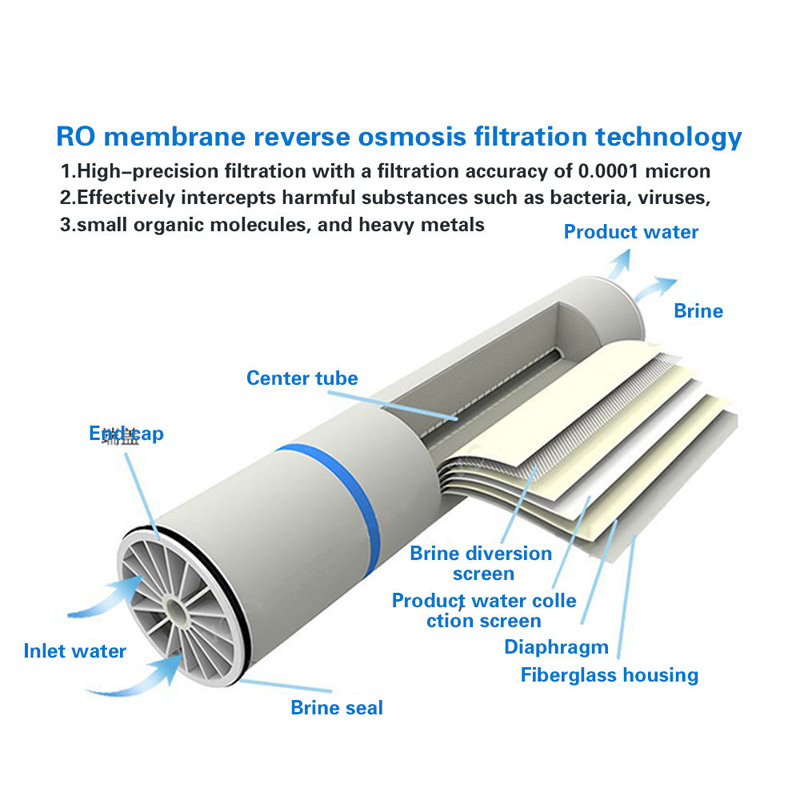

• High-precision RO membranes with 0.0001 micron filtration accuracy remove dissolved salts and contaminants

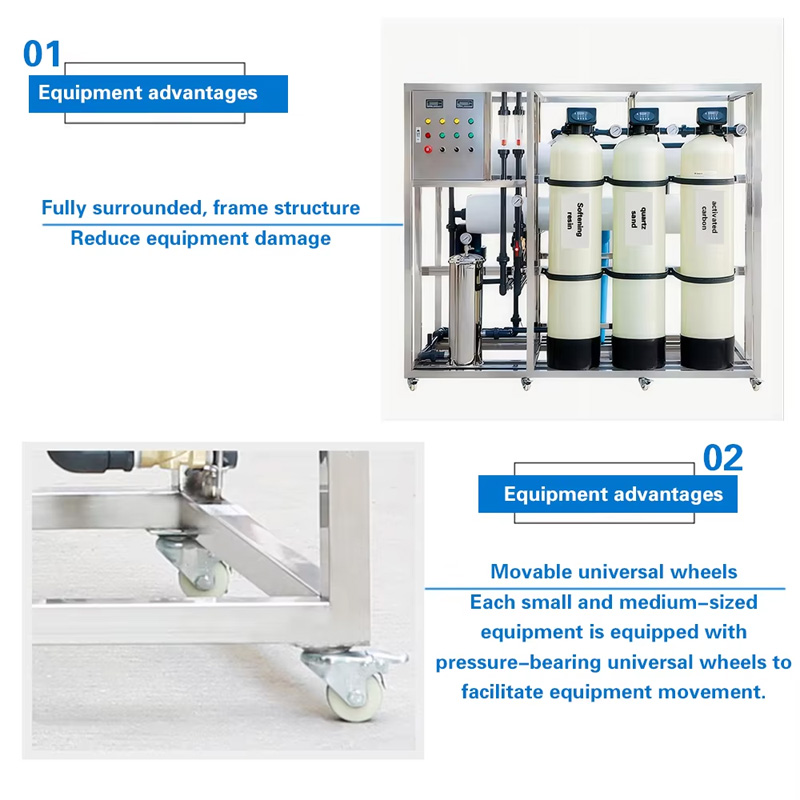

• Stainless steel frame structure enhances durability, corrosion resistance, and long service life

• Low-noise, stable pump system ensures reliable pressure supply and energy-efficient operation

• Movable universal wheel design allows flexible installation and easy relocation of equipment

Application scenarios：

• Well water purification for industrial and commercial use

• Drinking water pretreatment systems in factories and facilities

• Food and beverage water processing lines

• Boiler feed water and cooling system water treatment

• Environmental protection and water reuse projects
