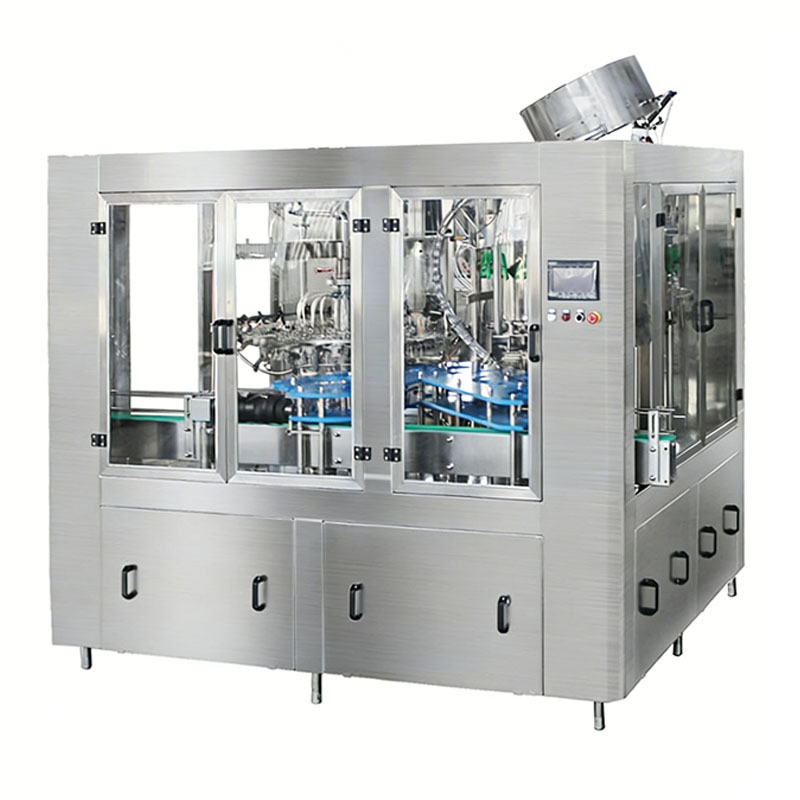

2000-4000 Bottles/h Beer Bottling Machine For Carbonated Drink

Beer Bottling Machine Product Introduction

The beer bottling machine is an advanced level-probe filling and packaging system designed for glass bottles, combining rinsing, filling, and capping functions into one integrated production line. Built with 304/316 stainless steel components, it ensures hygienic processing and high corrosion resistance for beverage applications. It solves issues of inconsistent filling levels, contamination risk, and inefficient manual bottling. Suitable for breweries, carbonated drink plants, and juice production factories, it delivers stable output, precise filling accuracy, and automated operation for continuous industrial beverage manufacturing.

Working Principle

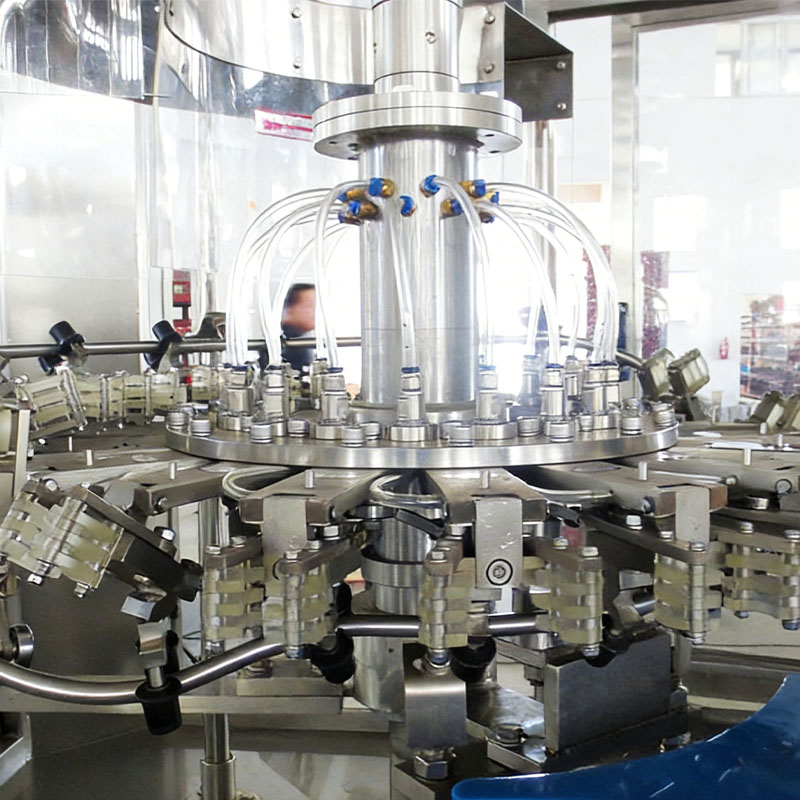

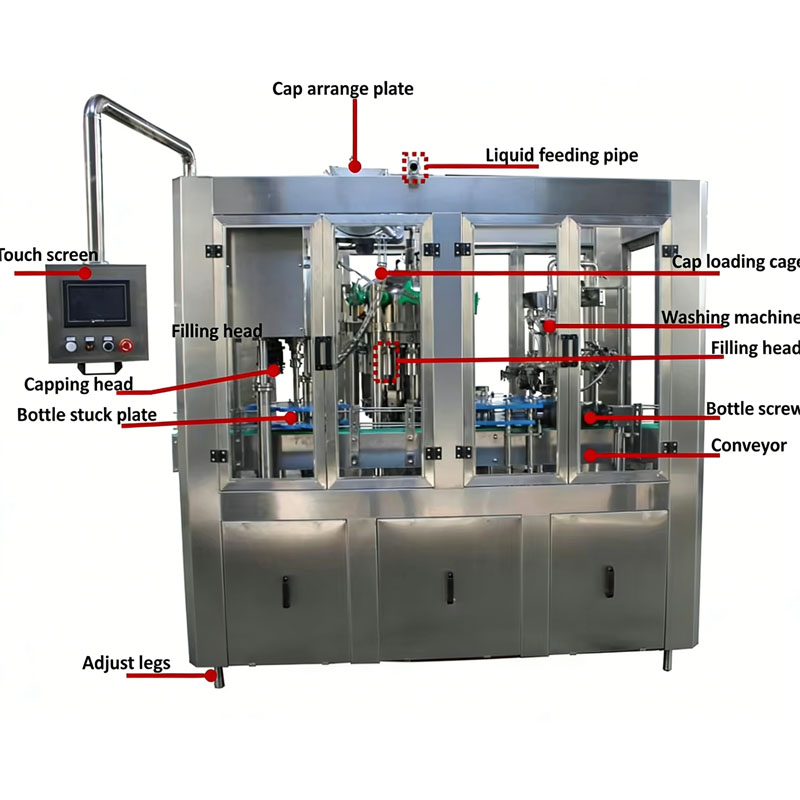

The machine operates through an integrated rinse–fill–cap process. Empty glass bottles are first rinsed using high-pressure stainless steel spray nozzles. Clean bottles then move to the filling station, where level-probe or pressure-controlled nozzles ensure accurate liquid filling. After filling, bottles are transferred to the capping section, where electromagnetic heads securely apply caps. The PLC system coordinates conveyor speed, filling volume, and safety sensors to ensure synchronized, continuous, and automated production with minimal human intervention.

Product Parameter Table

Application	Beer, carbonated drinks, soda water, aerated mineral water, sparkling wine, soda, etc.
Filling Range	330 ml, 250 ml, 500 ml, 1 L and so on
Cap Type	Aluminum Cap, Crown Cap and etc
Packing Type	Glass Bottle
Production Capacity	2000-4000 bottles/h
Power	3.7 kW
Weight	3000 kg
Overall Dimensions	3000 mm×1600 mm×2500 mm

Main Features

1. All stainless steel rinsing system ensures hygienic cleaning with reduced water consumption efficiency.
2. High precision filling nozzles maintain consistent liquid level and minimize product waste during operation.
3. Advanced PLC control system enables fully automatic operation with stable and reliable performance output.
4. Electromagnetic capping heads ensure secure sealing with extremely low defective rate below industry standards.
5. No bottle no filling and no capping safety system reduces operational errors and product loss.
6. Integrated conveyor system ensures smooth bottle transfer with overload protection and enhanced production safety.

Application Scenarios

• Beer production plants for automated glass bottle filling and sealing lines
• Carbonated beverage factories for soda, sparkling water, and soft drink packaging
• Juice processing facilities requiring hygienic and stable liquid bottling systems
• Craft breweries focusing on consistent flavor preservation and batch production efficiency
• Medium to large beverage manufacturers requiring continuous automated filling operations

FAQ

Q1: What beverages can this machine handle?
It is suitable for beer, carbonated drinks, juice, and similar liquid beverages.

Q2: Does it support different bottle sizes?
Yes, the system can be adjusted for various glass bottle specifications.

Q3: What control system does it use?
It uses an advanced PLC control system with automated operation functions.

Q4: Is the machine easy to clean?
Yes, stainless steel design with no dead corners ensures easy cleaning.

Q5: What is the filling accuracy?
It maintains high precision filling with consistent liquid levels and low error rate.
