Digital gear pump filling machine for cosmetic liquid bottles

Two head liquid filling machine for lotion plastic bottles

Liquid & Paste Packaging

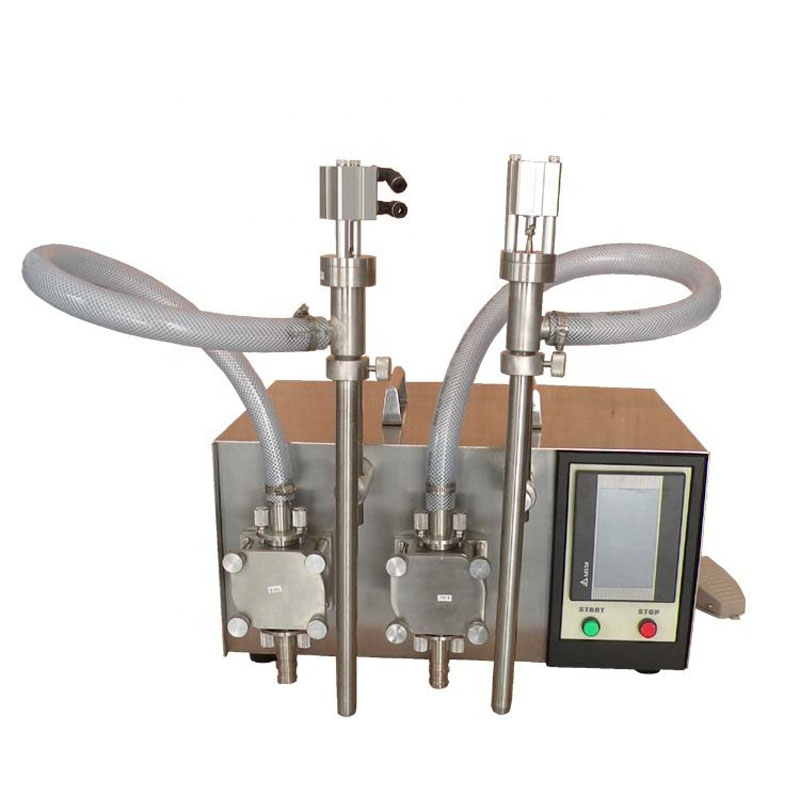

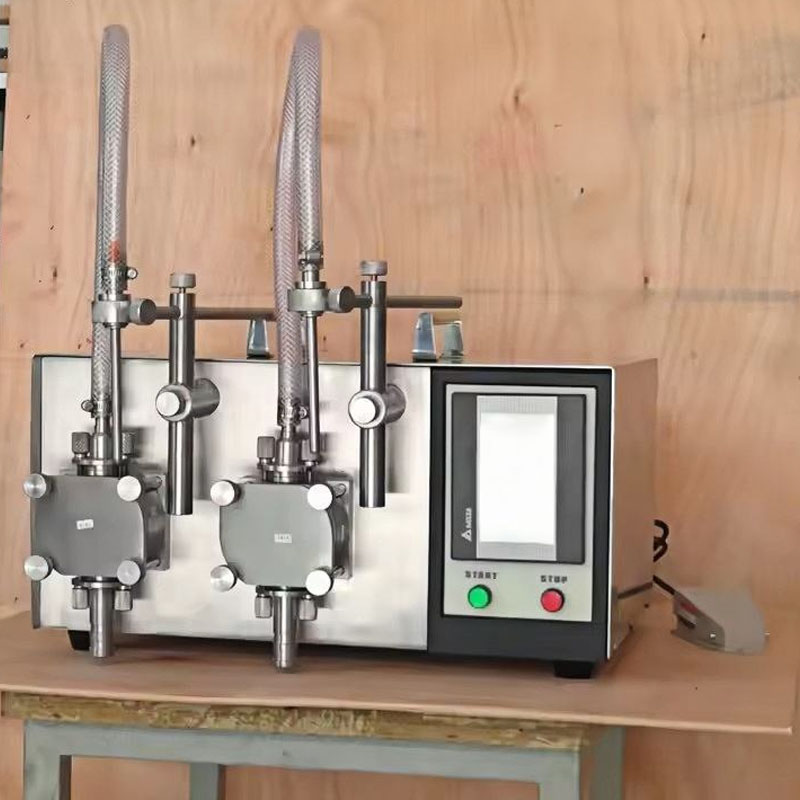

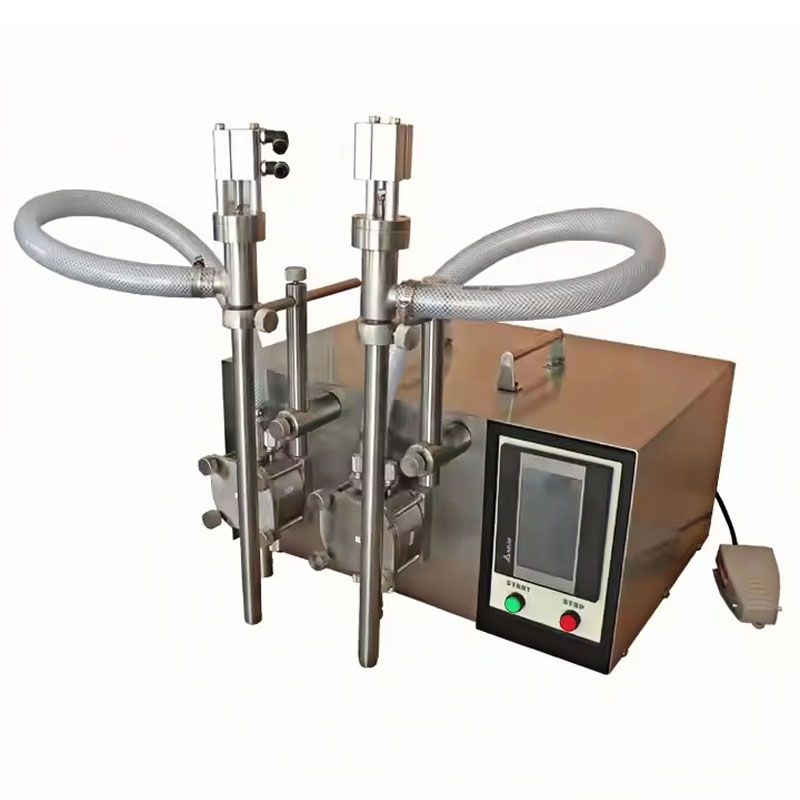

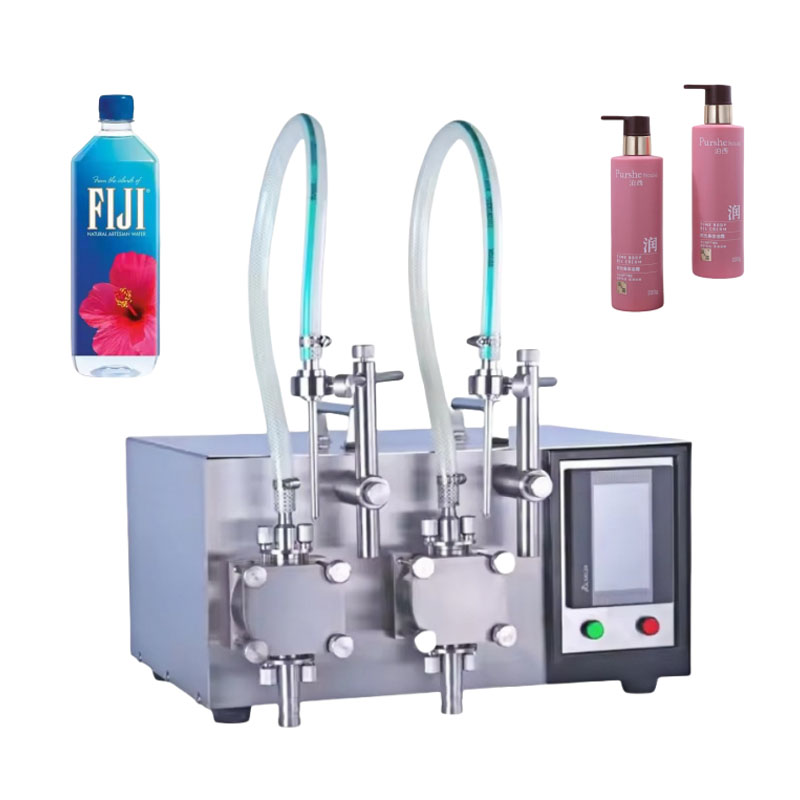

2 Heads Gear Pump Filling Machine for Water Lotion Packaging

Compare

This gear pump filling machine is designed for precise and efficient liquid dosing across a wide range of products, including beverages, cosmetics, and light chemicals. It uses a gear pump system to ensure accurate metering and stable flow control. Suitable for low to medium viscosity liquids, it supports flexible filling volumes and automated operation. Widely used in food, pharmaceutical, and cosmetic production lines, it helps improve efficiency, reduce errors, and maintain consistent filling quality.

Compare

Description

Product introduction of Gear Pump Filling Machine

The gear pump filling machine is an automated liquid filling system designed for quantitative filling of low to medium viscosity liquids. It integrates a gear pump, motor, and PLC or microcomputer control system to achieve precise flow and volume control. The equipment addresses issues such as inconsistent manual filling and inefficiency in production lines. It is suitable for industries including food, pharmaceuticals, cosmetics, and chemicals. With adjustable filling ranges and high accuracy, it is ideal for manufacturers requiring flexible and reliable liquid packaging solutions.

Working Principle

The gear pump filling machine operates based on a positive displacement principle. The gear pump draws liquid from the storage tank and transfers it through rotating gears into the filling nozzle. The microcomputer or PLC system controls the motor speed and pump operation to precisely regulate flow and volume. By adjusting the rotation speed, the system ensures accurate and consistent filling. The double-speed mode allows fast filling followed by slow topping, reducing bubbles and improving accuracy. This process ensures stable, efficient, and repeatable liquid filling performance.

Product Parameter Table

Voltage	110/220 V,50/60 Hz
Motor Power	800 W
Capacity	100 ml 48 Bottles/min; 300 ml 32 Bottles/min; 1000 ml 20 Bottles/min
Filling Range	10- 10000 ml (adjustment)
Filling Accuracy	0.5-1%
Package Size	460×480×310 mm
Package Weight	40 kg

Main Features

High-precision gear pump ensures accurate liquid metering with minimal deviation.
Adjustable filling volume supports a wide range of production needs and product types.
Double-speed filling reduces bubbles and improves filling accuracy and product quality.
Stainless steel construction ensures hygiene compliance and long-term durability.
PLC and microcomputer control provide stable, automated and user-friendly operation.
Easy cleaning design allows quick disassembly without tools, improving efficiency.

Application Scenarios

Beverage industry for filling juice, soy milk, vinegar, and wine products
Food production for syrup, honey, sauces, and edible liquid packaging
Cosmetic manufacturing for perfume, lotion, and skincare liquid filling
Pharmaceutical industry for liquid medicine and chemical solution dosing
Chemical and agricultural sectors for controlled liquid filling applications

FAQ

Q1: What types of liquids can this machine handle?
It is suitable for low to medium viscosity liquids such as beverages, oils, and cosmetic liquids.

Q2: Is it suitable for corrosive liquids?
No, it is not recommended for strong corrosive or highly viscous liquids.

Q3: How accurate is the filling?
The machine can achieve high precision, with accuracy up to ±0.5%.

Q4: Can the filling volume be adjusted?
Yes, the filling volume is fully adjustable depending on the gear pump configuration.

Q5: Is the machine easy to clean?
Yes, the pump can be disassembled without tools for convenient cleaning.
