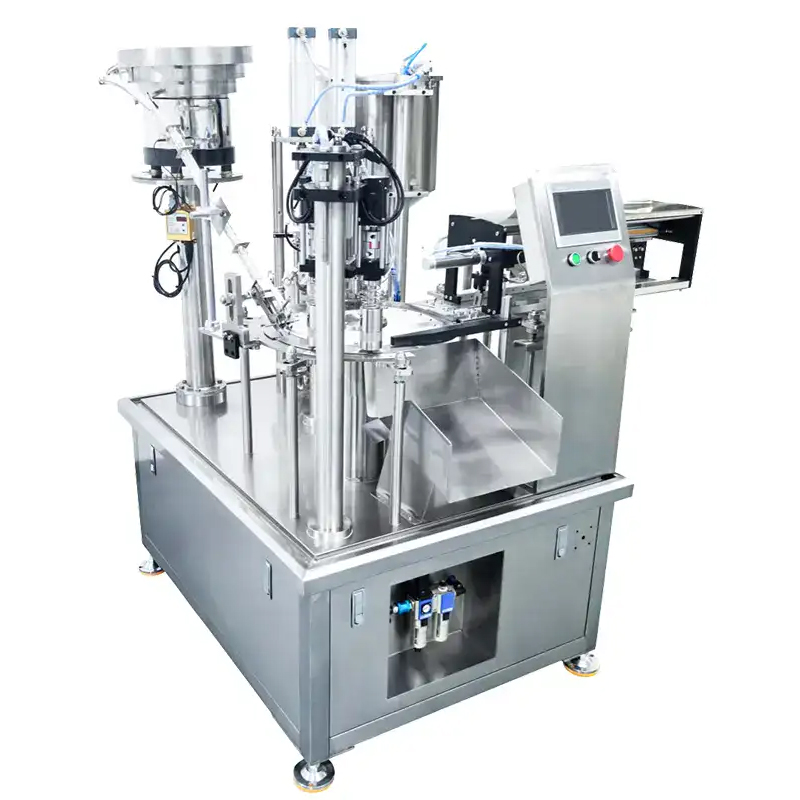

2-Head Spout Pouch Filling and Capping Machine 25–35 Bags/Min
The Fully Automatic Double-Head Spout Pouch Filling and Capping Machine is designed for high-efficiency liquid and paste packaging. It adopts a PLC control system with a dual-language touchscreen, servo-driven filling, and servo-controlled capping to ensure high accuracy, stability, and consistent sealing performance. The machine completes pouch feeding, filling, cap placing, and capping in one fully automated cycle, and supports quick mold changes for different pouch sizes.
Compare
Technical Specifications of 2-Head Spout Pouch Filling and Capping Machine
| Item | Specification |
|---|---|
| Model | Fully Automatic Double-Head Spout Pouch Filling and Capping Machine (Frameless Type) |
| Packaging Products | Liquid, Paste |
| Filling Pump | Gear pump (316 stainless steel for product contact) |
| Filling Range | 30–2000 ml |
| Hopper Capacity | 50 L (304 stainless steel for product contact) |
| Center Spout Pouch Size | Width 60–240 mm, Height 60–300 mm |
| Corner Spout Pouch Size | Width 60–360 mm, Height 60–320 mm |
| Production Speed | 25–35 bags/min (actual speed depends on material and machine configuration) |
| Voltage | 220V, 50 Hz |
| Power | Approx. 3000 W |
| Net Weight | Approx. 260 kg |
| Aluminum Parts | Anodized aluminum plate |
| Machine Frame Material | 304 stainless steel |
| Filling Contact Material | 304 stainless steel |
| Rotary System | Cam indexer |
| Machine Dimensions | Approx. 1400 × 1200 × 1700 mm |
| Working Principle | Manual pouch loading → automatic pouch feeding → automatic filling → automatic cap placing → automatic capping → automatic discharge |
Product Features
-
Dual-language (Chinese/English) touchscreen interface for easy and intuitive operation.
-
PLC control system ensures reliable performance and allows parameter adjustment without stopping the machine.
-
Supports storage of up to 20 product parameter presets for faster format changeovers.
-
Servo-driven filling system delivers higher precision and stable dosing accuracy.
-
Servo-controlled capping provides adjustable torque and better sealing consistency.
-
Integrates pouch feeding, filling, cap placing, and capping into one automated process.
-
Compatible with multiple pouch sizes through optional mold replacement.
-
Reserved control ports support both electric and pneumatic feeding systems, with optional feeding pumps available.
Application
Suitable for packaging liquids and medium-viscosity pastes in industries such as:
-
Personal care & cosmetics (shampoo, lotion, hand sanitizer)
-
Food & beverages (juice, sauces, condiments, dairy products)
-
Pharmaceutical & healthcare products
-
Household & chemical products (detergent, cleaners, gel products)
Ideal for spouted stand-up pouches, corner spout pouches, and center spout pouches.
Contact us to get your quotation now.
