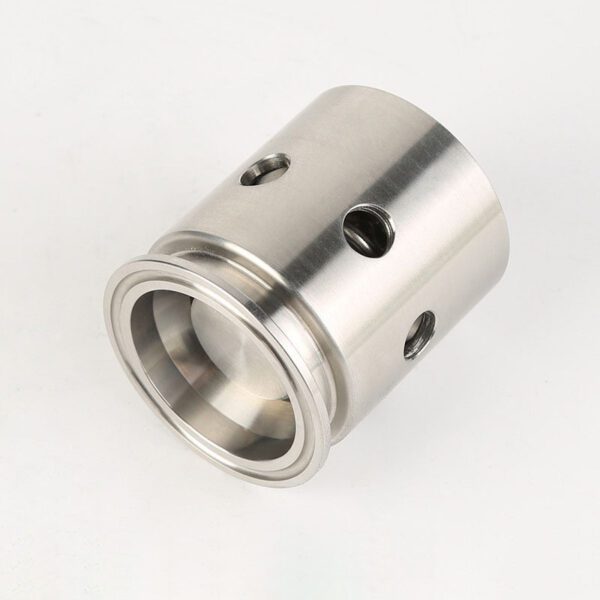

2” Breathing Valve Sanitary Stainless Steel Breathing Valve Quick Install Breathing Valve for Medicine
The valve is used in pressure vessel piping systems.
Breathing valve has two functions, when the pressure is higher than the set pressure (standard 1 BAR) can exhaust, whereas closed, while vacuum piping system (standard -0. 2BAR) when the valve opens automatically, to ensure the safety of the equipment and related instrumentation protection, at the same time can also meet the demand in all kinds of production process, the valve in stainess steel material, health design, content with all sorts of food processing, beer, beverage and pharmaceutical and other industries.
$159.99
Compare
| NO | NAME | MATERIAL |
| 1 | Valve body | SS304 |
| 2 | Valve core | SS304 |
| 3 | Gasket | EPDN |
| 4 | Valve gasket | SS304 |
| 5 | Negative pressure spring | SS304 |
| 6 | Circlip | SS304 |
| 7 | Positive pressure spring | SS304 |
| 8 | Pressed cover | SS304 |
| 9 | Top cover | SS304 |
| Size | D | D1 | d | H |
| 1.5’’ | Φ50.5 | Φ35 | Φ62 | 72.5 |
| 2’’ | Φ64 | Φ47.5 | Φ62 | 72.5 |
| 2.5’’ | Φ78 | Φ59 | Φ64 | 80 |
