17 pcs/min Stainless Steel Capping Machine for Liquid Food

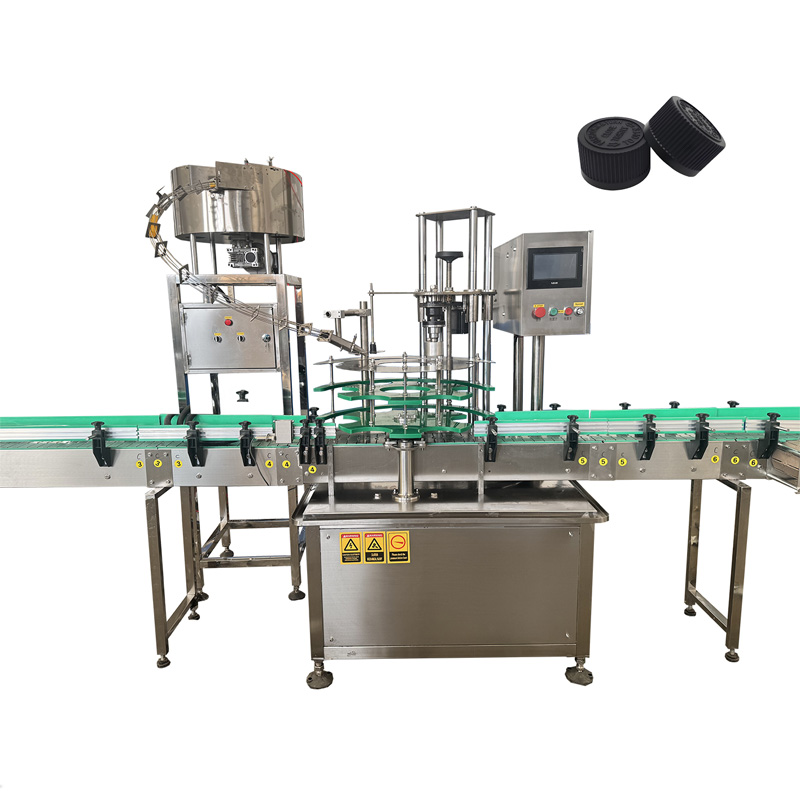

Stainless Steel Capping Machine Product Introduction

The 17 pcs/min Stainless Steel Capping Machine is a high-efficiency automatic capping solution for liquid food products, including soy sauce, fruit juice, emulsions, and other condiments. Its advanced servo-driven system precisely controls the torque and rotation speed to prevent over-tightening or leaks. The machine’s food-grade stainless steel body ensures compliance with hygiene standards, resistance to corrosion, and easy maintenance. Adjustable height and torque settings allow it to handle various bottle sizes and materials. Ideal for factories, beverage plants, and condiment production lines, it significantly improves productivity while reducing manual labor. The PLC control panel simplifies operation, monitoring, and troubleshooting.

Technical Specifications：

Packing speed	17 pcs/min
Applicable Power Supply	220/380V, 50/60Hz
Main Unit Material	304 Stainless Steel
Production Capacity	0–1000 BPH
Maximum Power	2.5 kW
Working Air Pressure	0.6 MPa
Sealing Diameter	20–100 mm, customizable
Main Unit Dimensions (L×W×H)	1100 × 1100 × 2100 mm
Equipment Weight	550 kg

Main features：

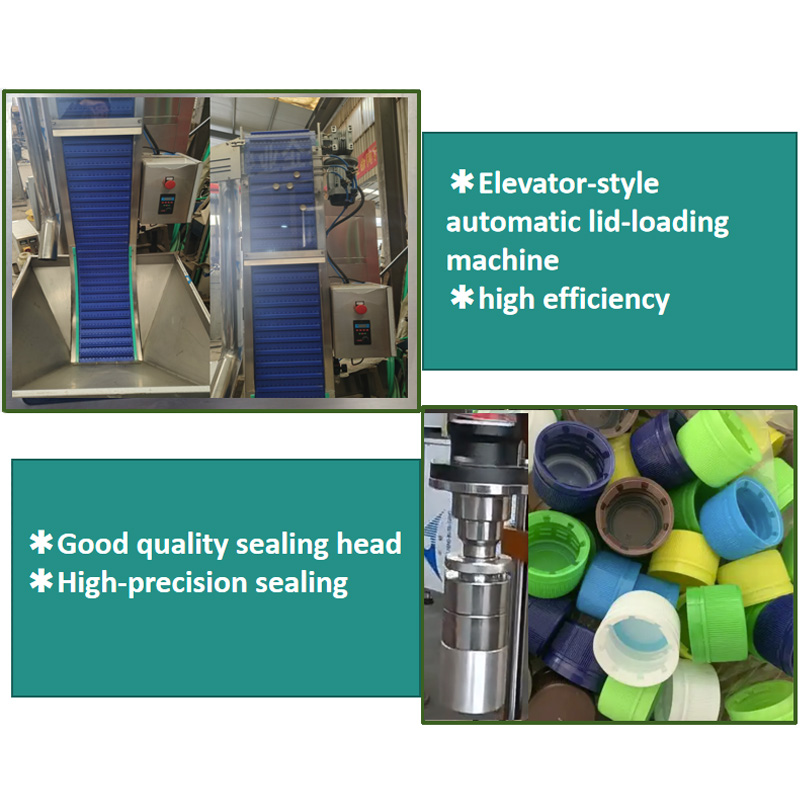

• Servo-driven precision: Advanced servo motors provide accurate torque and rotation speed for uniform sealing.
• Food-grade stainless steel construction: Resistant to corrosion, easy to clean, and compliant with hygiene standards.
• Adjustable settings: Easily adapts to different bottle sizes, shapes, and cap types.

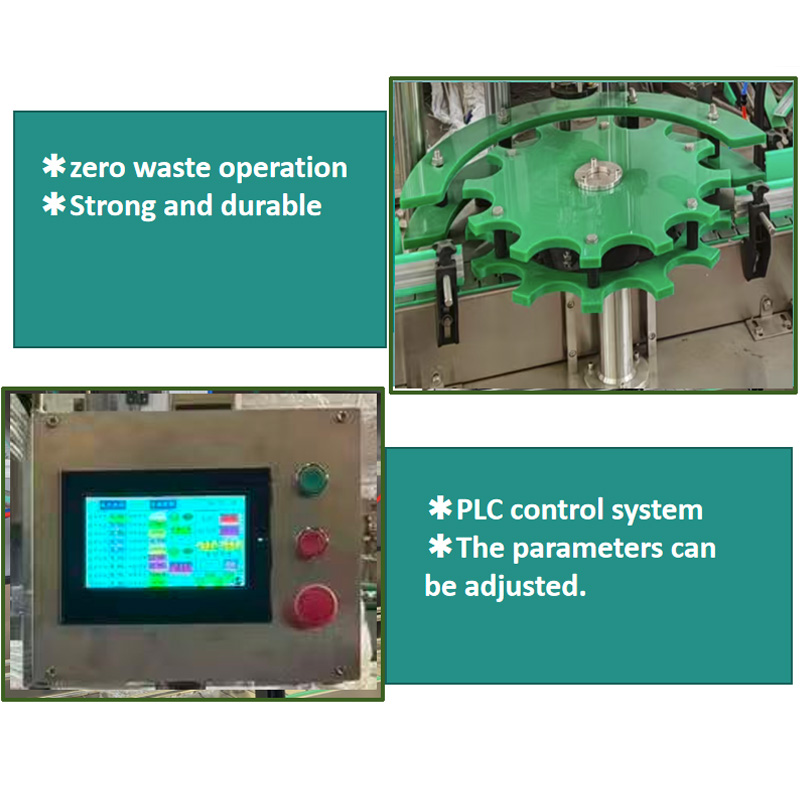

• PLC control panel: Simple operation, real-time monitoring, and fault diagnostics for efficient management.
• High productivity: Capable of sealing 17 pcs/min, ensuring consistent output for medium-scale production.

Application Scenarios：

• Sauce and condiment factories: Efficient capping of soy sauce, salad dressings, and liquid condiments.
• Beverage production: Suitable for fruit juice, smoothies, and emulsions bottling lines.
• Food processing plants: Handles various liquid foods including dairy, cooking oils, and syrups.
• Industrial packaging lines: Ideal for medium-scale factory setups requiring automated liquid capping.
• Labor-saving operations: Reduces manual labor, speeds up production, and ensures product consistency.



FAQ

• Q: What bottle sizes can it handle?
  A: Adjustable settings allow 50–500ml bottles of various materials.
• Q: Is the machine easy to clean?
  A: Yes, food-grade stainless steel surfaces are easy to wash and maintain.
• Q: Can it be integrated into existing production lines?
  A: Yes, the machine supports standard conveyor integration.
• Q: Does it require specialized operators?
  A: No, the PLC interface is user-friendly with simple training required.
• Q: What is the power requirement?
  A: 220V single-phase or 380V three-phase depending on configuration.
