16-channel parallel operation with a high output of 4,200 bottles/hour, ideal for large-scale production

Anti-adhesion and anti-jamming feeding design, compatible with all types of softgels without material damage

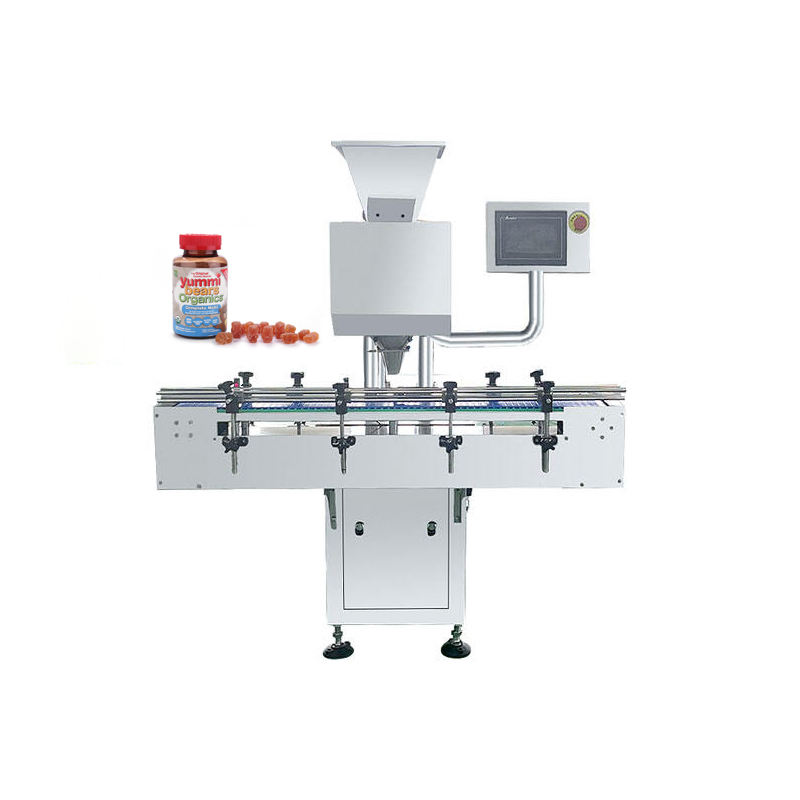

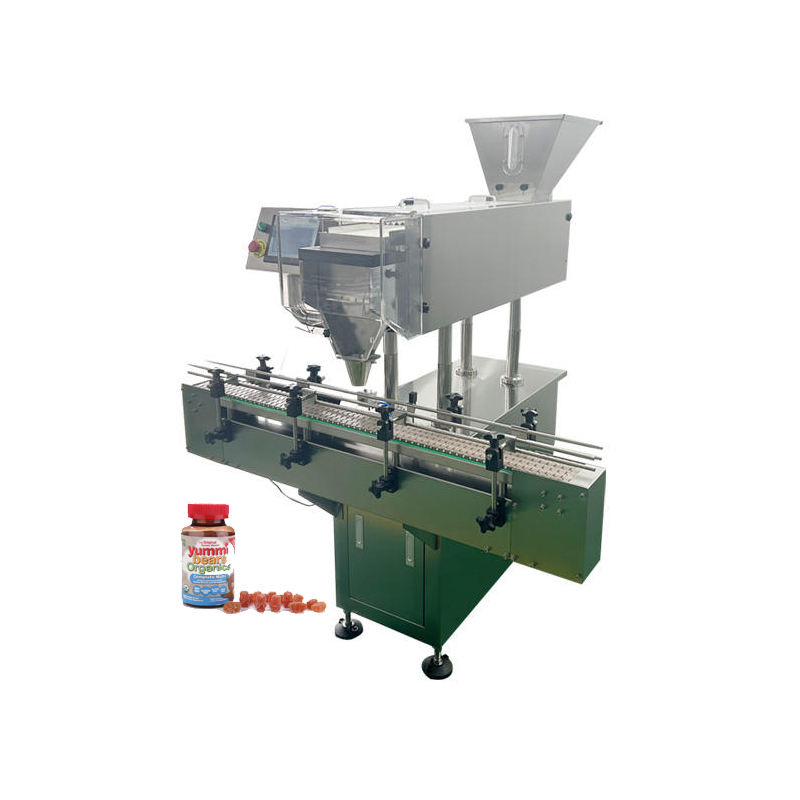

16-Channel Automatic Softgel Counter for Bottling

Name: 16-Channel Automatic Softgel Counter for Bottling
SKU: 68557
Price: 10800.00 USD
Availability: InStock

Compare

This 16-channel automatic softgel counting and bottling machine is a core piece of equipment for large-scale production in the pharmaceutical and health supplement industries. Featuring a 16-channel parallel design combined with a three-stage vibrating feeding system, it effectively resolves the issues of softgel adhesion and jamming, with a maximum bottling capacity of up to 4,200 bottles per hour.

Integrated with AI vision and photoelectric dual detection technology, it achieves a counting error rate of less than ±1 capsule per 10,000 capsules and accurately rejects defective products. The fully automated process requires no manual intervention; constructed from 304/316 stainless steel, it complies with GMP standards, and its modular design allows for easy disassembly, cleaning and maintenance.

Compatible with multiple specifications of softgels and bottle types, it can be seamlessly integrated into production lines or operated as a standalone unit. Balancing efficiency, precision and compliance, it is an ideal choice for improving production efficiency and ensuring product quality.

$10,800.00

Compare

Description

Product Description:
16-Channel Automatic Softgel Counter for Bottling

This 16-channel automatic softgel counting and bottling machine is specially designed for the pharmaceutical, health supplement and food industries. Focusing on the core demand of softgel counting and bottling, it integrates four core advantages: 16-channel high-efficiency counting, AI visual accurate identification, intelligent feeding with anti-adhesion and anti-jamming functions, and GMP-compliant easy cleaning. It solves the industry pain points of softgel adhesion, jamming, large counting errors and low efficiency, and serves as a key automated device for achieving accurate counting and rapid bottling in large-scale production.
Product Parameters：

Capacity	10-40 bottles/min
Filling Quantity	2-9999pcs/bottle
Compressed air	0.6Mpa 3.5L/min
Power	220V/50HZ 0.6KW
Weight	320kg
Size(mm)	136015301700
Bottle Size	Diameter: 30-100mm
Bottle Size	Height:40-180mm
